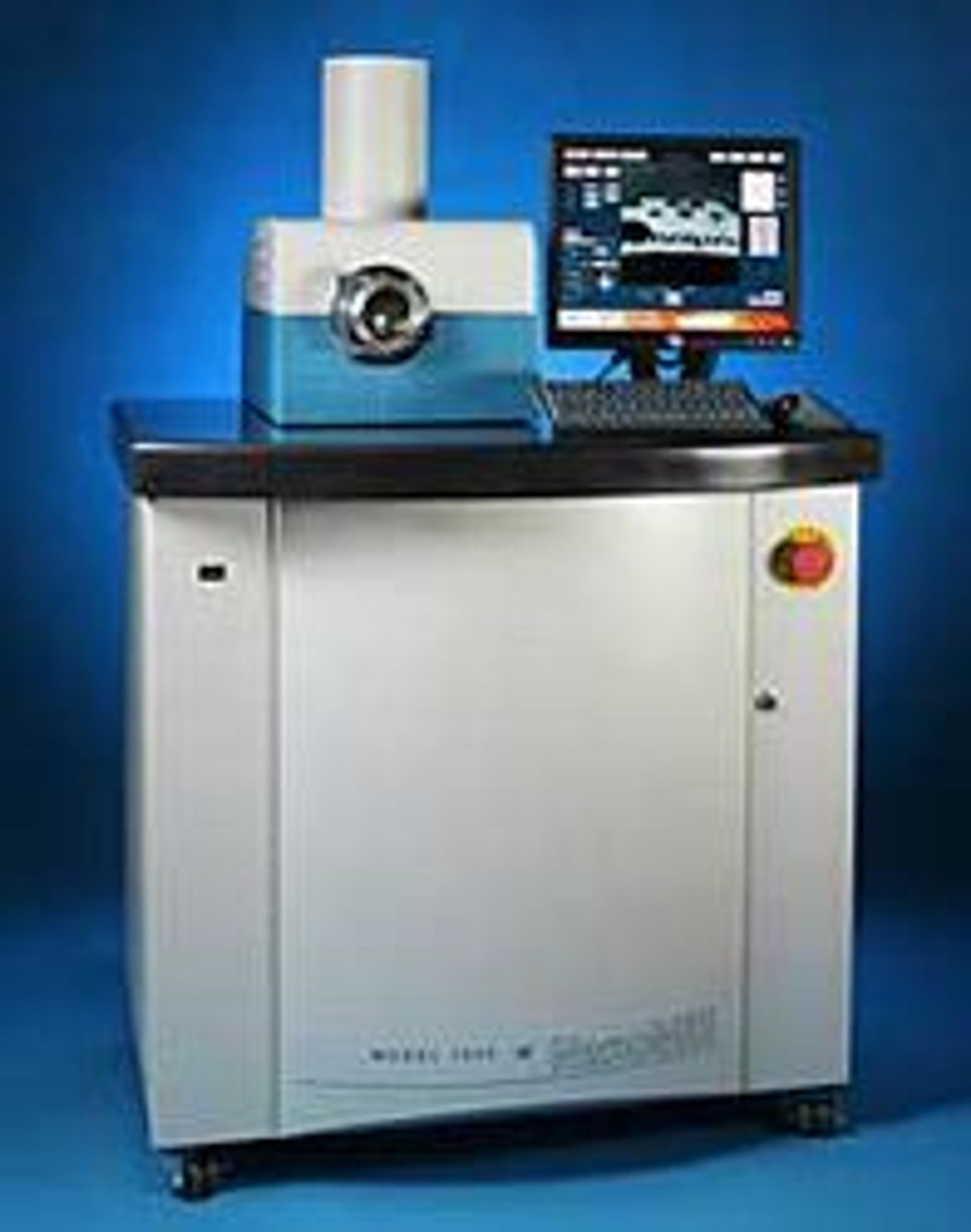

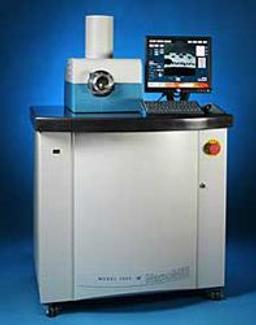

Model 1040 NanoMill® TEM specimen preparation system

Revolutionary ultra-low-energy, concentrated ion beam Fischione’s Model 1040 NanoMill® TEM specimen preparation system is an excellent tool for creating the high-quality thin specimens needed for advanced transmission electron microscopy (TEM) imaging and analysis. It is ideal for both post-FIB (focused ion beam) processing and the enhancement of conventionally prepared specimens. Targeted, ultra-low-energy NanoMillingsm proce…

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

Revolutionary ultra-low-energy, concentrated ion beam
Fischione’s Model 1040 NanoMill® TEM specimen preparation system is an excellent tool for creating the high-quality thin specimens needed for advanced transmission electron microscopy (TEM) imaging and analysis. It is ideal for both post-FIB (focused ion beam) processing and the enhancement of conventionally prepared specimens.

Targeted, ultra-low-energy NanoMillingsm process
The NanoMill® system features gaseous ion source technology that results in ion energies as low as 50eV and a beam size as small as 2 microns. It allows specimens to be prepared without amorphization, implantation, or re-deposition. The ion beam can be targeted to a specific area of interest. A secondary electron detector (SED) is used to image the ion-induced secondary electrons that are generated from the targeted area of the specimen.

Automated Operation
The NanoMill® system is easily programmable. Adjustable ion beam energies, milling angles, specimen rotation, and cryogenic specimen cooling parameters afford maximum flexibility to ensure the optimal preparation of a wide variety of specimens. A vacuum load lock facilitates rapid specimen exchange for high-throughput applications.
