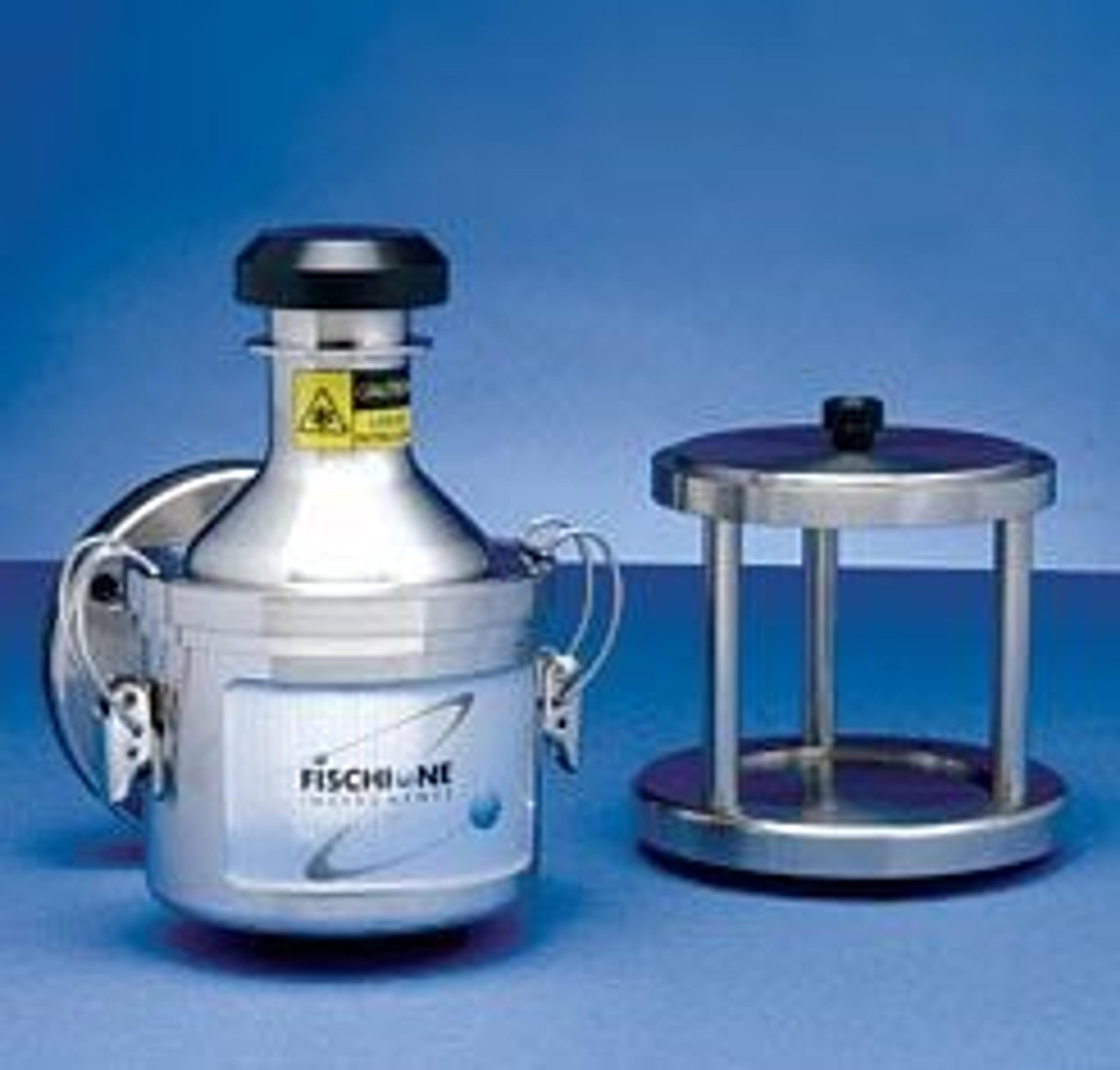

Model 190 Cryo-Can for SEM
Provides clean environment for SEM The Cryo-Can provides a clean environment for SEM sample imaging and analysis. It helps eliminate chamber contamination resulting from sample outgassing and other sources. The Cryo-Can improves both imaging and analytical data quality. It is ideal for high beam current applications. Uses SEM vacuum system The Cryo-Can vacuum container is readily connected to one of the SEM chamber ports and d…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Provides clean environment for SEM
The Cryo-Can provides a clean environment for SEM sample imaging and analysis. It helps eliminate chamber contamination resulting from sample outgassing and other sources. The Cryo-Can improves both imaging and analytical data quality. It is ideal for high beam current applications.
Uses SEM vacuum system
The Cryo-Can vacuum container is readily connected to one of the SEM chamber ports and does not need an independent vacuum system. A removable liquid nitrogen vessel is contained within the vacuum container. Once the SEM chamber and Cryo-Can are evacuated, liquid nitrogen is introduced into the vessel of the Cryo-Can. The cold surface of the vessel traps contaminants outside the SEM chamber.
Removing the condensed contamination
The liquid nitrogen vessel is typically removed after 30 minutes to 5 hours of operation. Removing the vessel while it is cold removes the condensed contamination from the SEM. Placing a lid on the vacuum container seals the SEM chamber when the Cryo-Can is not in use. When the SEM vacuum system is activated, the Cryo-Can is evacuated along with the SEM chamber.
Once the liquid nitrogen vessel is emptied and placed onto a stand, both the vessel and the stand can be baked to regenerate the surface of the liquid nitrogen vessel, allowing it to be reused without reintroducing contamination into the SEM.
