MYTOS | TWISTER & Co. - in-line Laser Diffraction Analyser
Laser diffraction sensor for process particle size and distribution analysis of fine, even cohesive powders from 0.25 μm to 3,500 μm

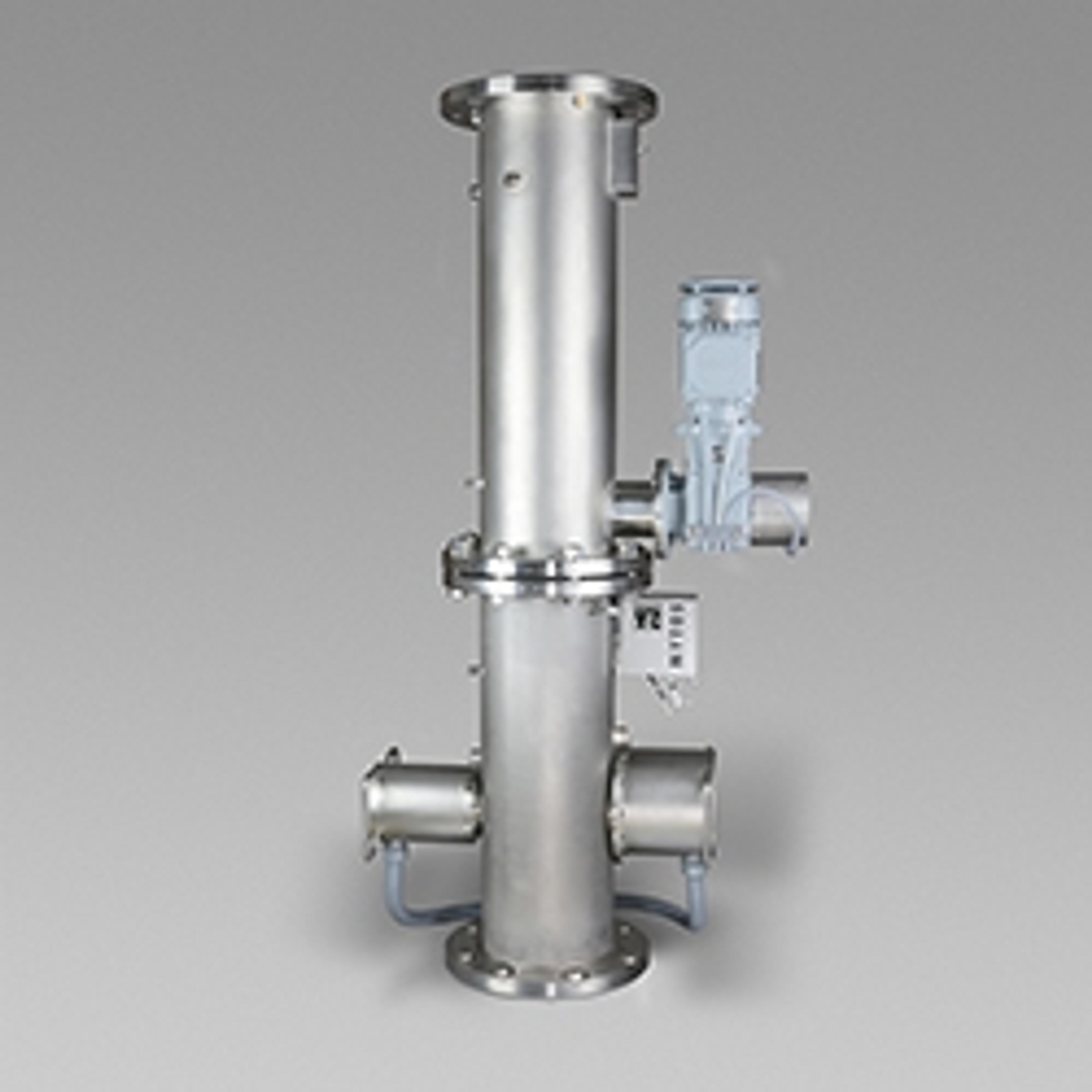

MYTOS with sampling unit TWISTER in-line

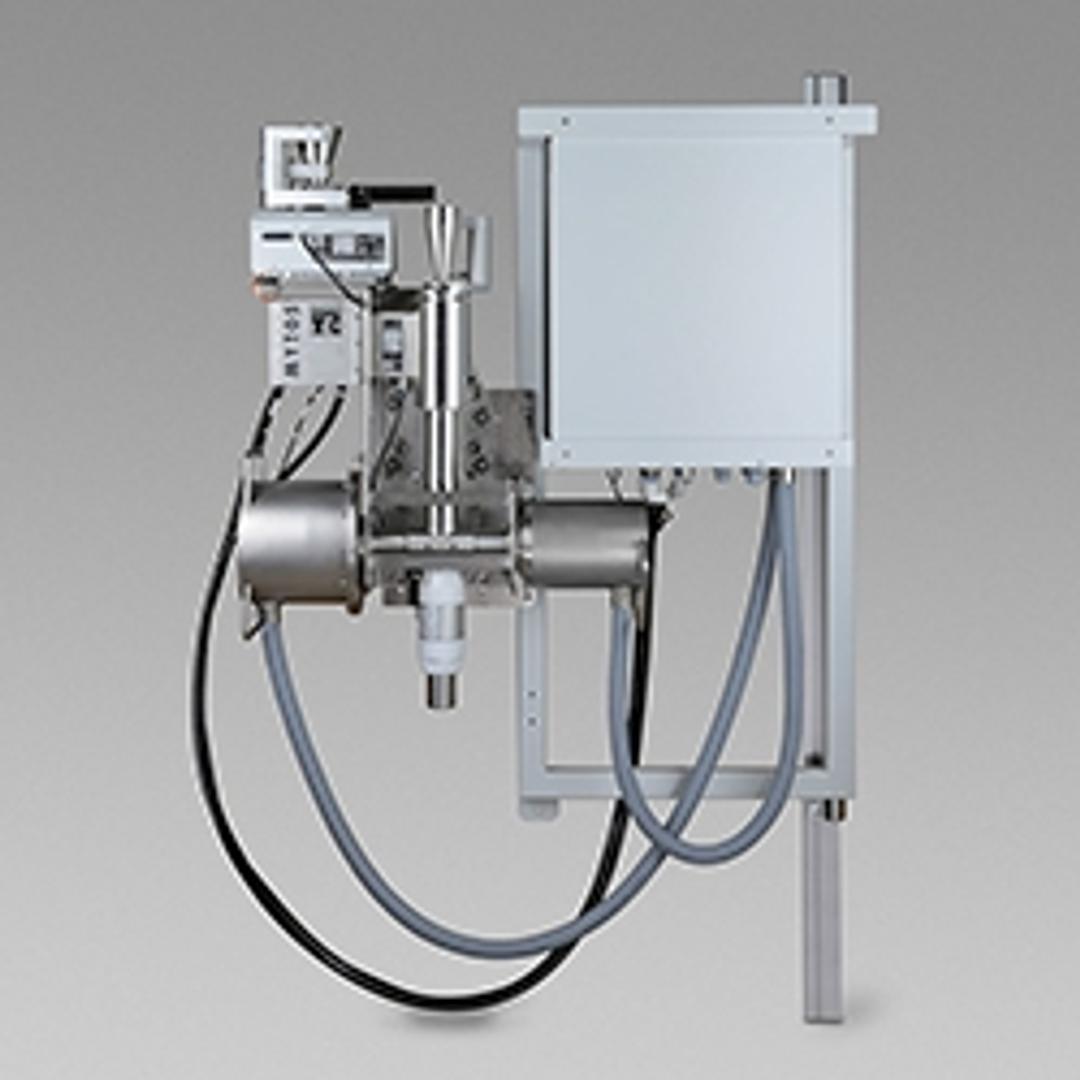

MYTOS with VIBRI dosing unit on-line

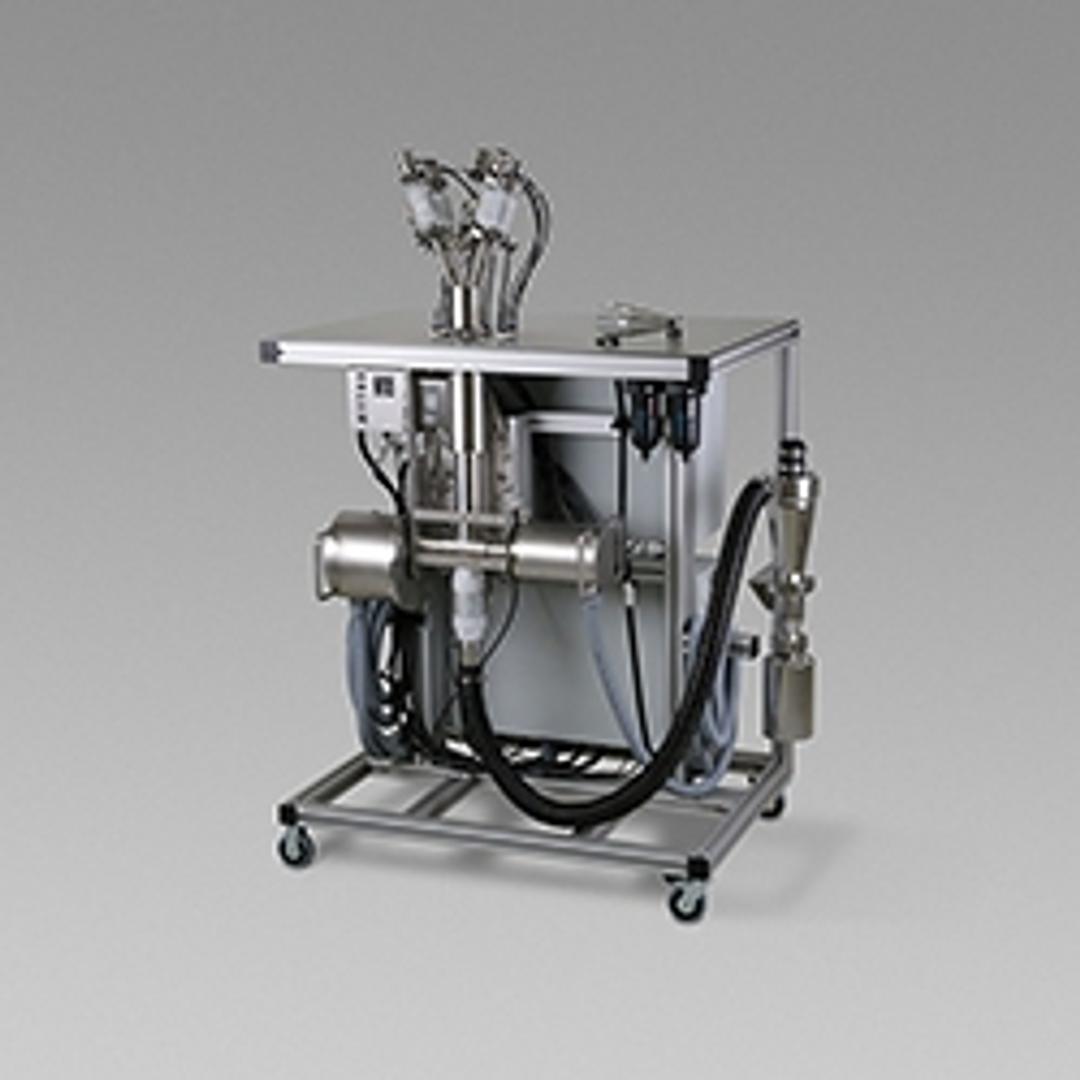

MYTOS with dosing unit VIBRI at-line
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
MYTOS integrates the established core technologies of HELOS laser diffraction and RODOS dry dispersion in a single robust body: a process‐proven laser diffraction sensor for dry powders ranging from 0.25 μm to 3,500 μm.
In combination with the continuously operating sampling system TWISTER, complete integration into the processing pipe is realized, making it a true in‐line solution delivering representative results. Alternatively, MYTOS may be operated on‐line either with TWISTER, MIXER, PROBE, or existing sampling solutions. Integrated at‐line operation in automated lab environments is succeeded with the vibratory feeder VIBRI.
MYTOS | TWISTER & Co. Features
- Efficient dry measurement down to the submicron range
- Complete dispersion for fine, even cohesive powders through high-performance dry dispersion with RODOS
- Real time measurement of particle size in-process with up to 2,000 complete particle size distributions per second
- Representative sampling in and out of process lines
- Method transfer possible due to identical key components with off-line laser diffraction system HELOS | RODOS
- Process control systems can be connected via TCP/IP, OPC UA, Modbus®, Profibus®, and PLC signals
- Fit for roughest industrial conditions, GMP environments, and ATEX zones
- User friendly control and PAQXOS evaluation software with step-by-step wizard for quick and successful measurements
MYTOS | TWISTER & Co. Applications
- Cement
- Battery materials
- Rare Earth
- Anode Coke
- Powder Coating
- Coffee
- Pharmaceuticals
- Spray Granulation
