NUCLEODUR® C18 ISIS

A unique C18 phase with high steric selectivity • C18 phase with special polymeric surface modification • particle sizes 1.8 µm, 3 µm and 5 µm • exceptional steric selectivity • outstanding surface deactivation • pH stability 1 – 10 • broad range of applications: steroids, (o,p,m-) substituted aromatics, fat-soluble vitamins, positional isomers Surface modification By use of specific C18 silanes and appropriate polymeric bondi…

MACHEREY-NAGEL GmbH & Co. KG

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Average Rating 4.0

|1Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

First choice for separation by HPLC.



Average Rating 4.0

Application Area:

Analysis of aldehydes in water

Separation of aldehydes works perfectly well. A lot of wastewater is analyzed and still the separating capacity is very good. Impurities can be easily washed out by methanol/acetonitrile. A disadvantage is that it is not possible not simply shorten the column by myself.

Review Date: 27 Sept 2021 | MACHEREY-NAGEL GmbH & Co. KG

A unique C18 phase with high steric selectivity

• C18 phase with special polymeric surface modification
• particle sizes 1.8 µm, 3 µm and 5 µm
• exceptional steric selectivity
• outstanding surface deactivation
• pH stability 1 – 10
• broad range of applications: steroids, (o,p,m-) substituted aromatics, fat-soluble vitamins, positional isomers

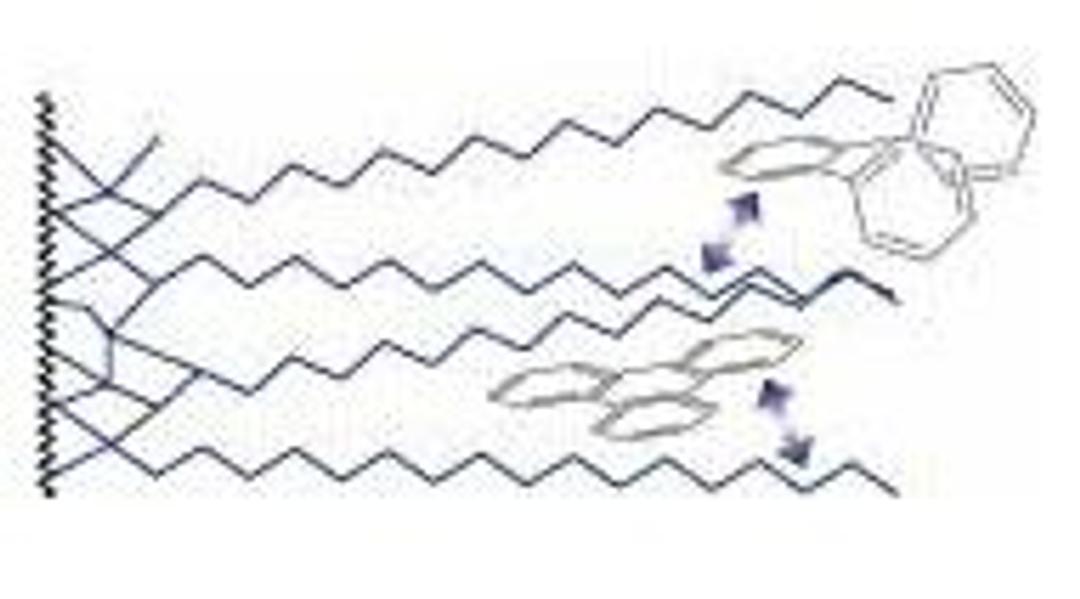

Surface modification
By use of specific C18 silanes and appropriate polymeric bonding technologies a dense shield of alkyl chains protects the subjacent silica matrix. Elemental analysis of NUCLEODUR® C18 Isis shows a carbon load of 20%.

The target crosslinking of the C18 chains on the surface enables the separation of compounds with similar molecular structure but different stereochemical properties.

The separation of o-terphenyl and triphenylene is a concrete example to evaluate the selectivity potential of a reversed phase column in terms of the different shape of two molecules. The phenyl rings of o-terphenyl are twisted out of plane while triphenylene has a planar geometry.

Surface deactivation
The chromatography of basic analytes requires a high density of surface-bonded C18 silanes combined with a thorough endcapping procedure to keep silanol activity at a minimum. This ensures tailing-free elution of even strongly basic amino-containing compounds.

Stability
The applied special surface bonding technology also provides improved stability features for the NUCLEODUR® C18 Isis phase. The proof for this was given in a long-term test in which the decrease of plate counts for caffeine at pH 10 and 50 °C has been observed over a period of 200 hours and 2000 sample injections respectively.
