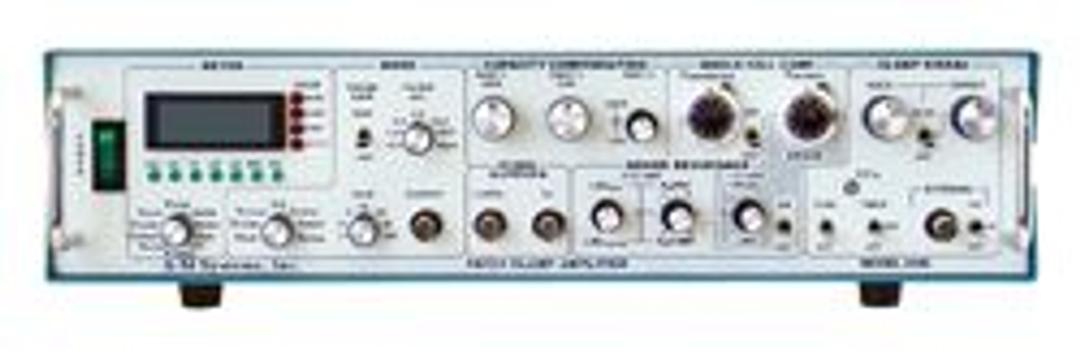

Patch Clamp Amplifier Model 2400
The Model 2400 is a low-noise, full-featured intracellular/extracellular amplifier designed for voltage clamping using patch electrodes on single channels or whole cells. Its unique design allows fast intracellular current clamp measurements with sharp electrodes. Advanced circuit design techniques using field programmable gate arrays eliminated noisy microprocessors. Full-Function Patch Clamp Amplifier for both whole cell…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
It’s easy to use it.
Review Date: 2 Dec 2013 | A-M Systems, Inc.
Amplifying The Signal Of An Specific Ion Channel
It is useful tool to amplify specific signals of channels, transporters, or other proteins. It allows you to investigate into electrical signatures of a specific protein.
Review Date: 29 Nov 2013 | A-M Systems, Inc.
Electrophysiology
I have found the amplifier to be very helpful in being able to clearly see synaptic changes following low frequency stimulation.
Review Date: 29 Nov 2013 | A-M Systems, Inc.
Introduction to Electrophysiology Lab
I’m the preceptor for an introduction to electrophysiology lab and we use the patch clamp amplifier model to further examine certain portions of our experiments. It is very easy to use, especially for undergraduates.
Review Date: 29 Nov 2013 | A-M Systems, Inc.
Brain Research
It is a good product for electrophysiology research in the brain. Plus it is also a good product for the studies of electrophysiology in vivo.
Review Date: 28 Nov 2013 | A-M Systems, Inc.
The amplifier comes with a very good instruction manual which accurately describes each component. The price is adequate and the online support is solid.
Review Date: 7 Dec 2011 | A-M Systems, Inc.
The Model 2400 is a low-noise, full-featured intracellular/extracellular amplifier designed for voltage clamping using patch electrodes on single channels or whole cells. Its unique design allows fast intracellular current clamp measurements with sharp electrodes. Advanced circuit design techniques using field programmable gate arrays eliminated noisy microprocessors.
- Full-Function Patch Clamp Amplifier for both whole cells and patches
- True Current Clamp is 100% stable with bandwidth of 200kHz.
- Switchable Dual Resistive Feedback Headstage
- Capacity, series resistance, and whole cell compensation
- 4-pole Low-Pass Bessel Filters
- Internally generated test signals
- Telegraph outputs for all major front panel controls
- Independent hold, offset, and tracking circuitry
- Displays command potentials, cell currents, and voltages
Amplifier current gain is extremely flexible as it can accept any of four resistive feedback probes. Each probe has two feedback resistors selected from the following values: 10 MΩ, 50 MΩ, 100 MΩ, 1 GΩ, 5 GΩ, and 10 GΩ. The wide range of feedback resistors means currents can be recorded with outputs of 1 mV/nA to 10 mV/fA. The standard probe sent with each unit is the 100 MΩ/10 GΩ version, but other values can be selected.
Unlike other patch clamp amplifiers, the Model 2400 has a voltage follower in the probe. This allows this amplifier to be a true fast current clamp amplifier with no instability. An integrated four pole low pass Bessel filter provides flexible signal conditioning. Fine tuning capacity compensation is available to eliminate virtually all electrode-induced transients. Calibrated whole cell compensation provide easy display of membrane capacitance and access resistance.
A host of command potentials are integrated internally within the model 2400, including an automatic tracking command to zero the membrane current, manual controls for offset and holding potentials, and an easily readable digital display. For signals that are more complicated, an external command input with different scaling factors is available for use with any signal source.
A digital meter provides accurate values of command signals and membrane currents or voltages, the true RMS noise of the amplifier and experimental setup, the cut off frequency of the low pass filter, and the overall gain of the amplifier plus probe.
Series resistance compensation provides the researcher with the option of introducing either or both predictive and corrective compensation from zero to 100%. Fine and coarse controls for lag provide sensitive control to minimize oscillation produced by compensation close to 100%.
Separate compensation controls exist for eliminating transients seen during current clamp experiments when the bridge balance is used.
Telegraph outputs provide analog voltage equivalents of front panel settings including error conditions, amplifier mode and gain, Cmembrane, RMS noise, and low pass filter cut-off value. These telegraphs allow the Model 2400's front panel settings to be automatically recorded by your system software.
For those who need extra large bandwidths, the raw bandwidth of the entire amplifier may be adjusted via a rear panel potentiometer.
A second powered probe input is available for use as a bath signal input.
