PELCO® STEM Imaging Holder
The PELCO® STEM imaging holder enables STEM imaging in the SEM by using the standard Everhart-Thornley SE detector in the SEM chamber. The standard 3mm TEM grid is placed in the grid holder and located under the scanning beam. The STEM image is created by the adjustable Pt conversion plate which must face the chamber SE-detector. Cost-effective method for STEM imaging by using the existing SE detector in the SEM chamber. The i…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

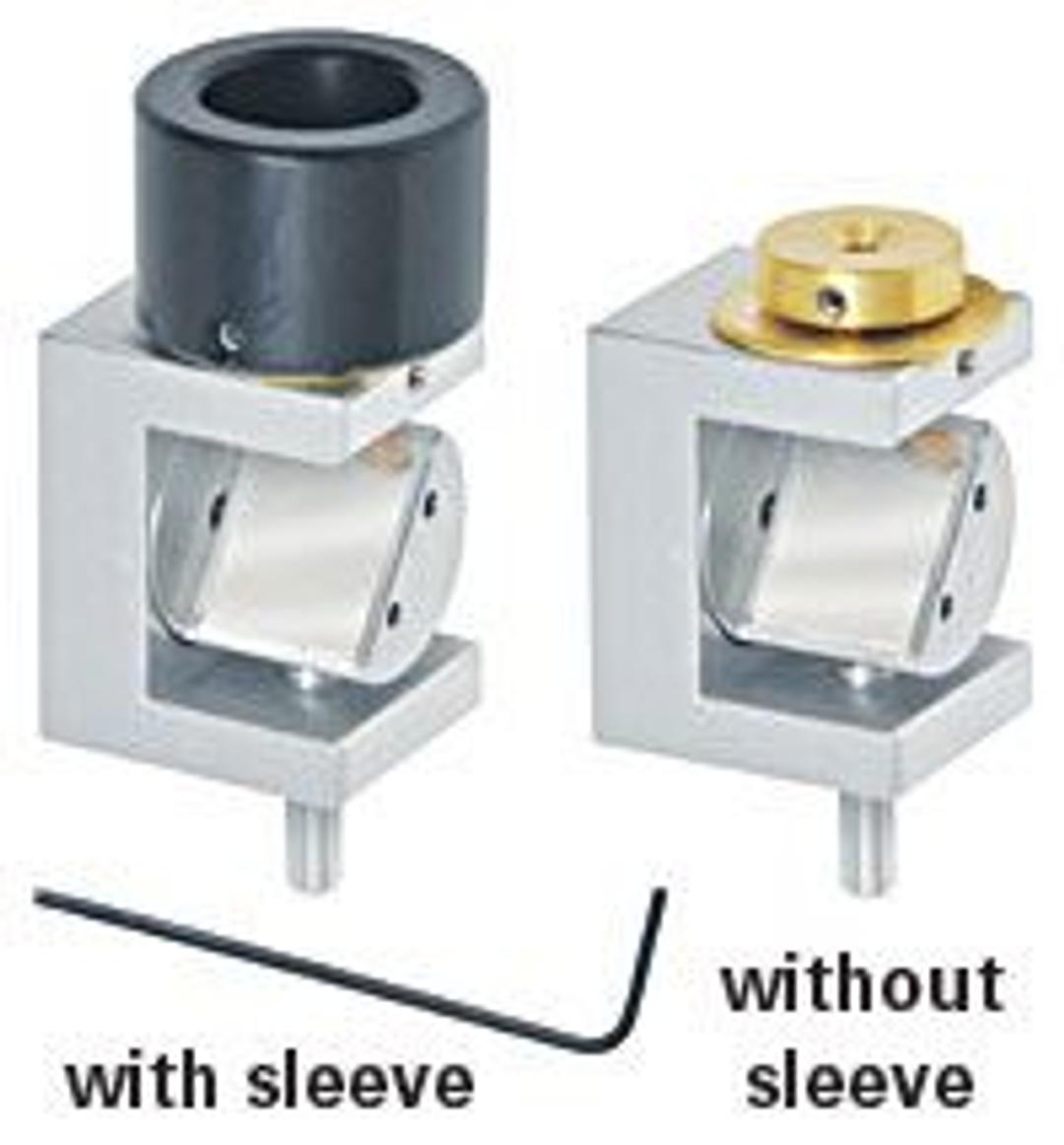

The PELCO® STEM imaging holder enables STEM imaging in the SEM by using the standard Everhart-Thornley SE detector in the SEM chamber. The standard 3mm TEM grid is placed in the grid holder and located under the scanning beam. The STEM image is created by the adjustable Pt conversion plate which must face the chamber SE-detector. Cost-effective method for STEM imaging by using the existing SE detector in the SEM chamber. The included conductive anti-scatter sleeve, placed between the holder and the SEM pole piece, contains secondary electron from the sample surface and prevents these from being detected; the result is clear STEM imaging. Overall height with anti-scatter sleeve is 37.5mm (1-1/2") and 29.2 (1.15") without the anti-scatter sleeve. Material: vacuum grade aluminum, brass grid holder, platinum conversion plate and conductive plastic.
