PICTOS | TWISTER & Co. - on-line Dynamic Image Analyser
Dynamic image analysis sensor for process particle size and distribution analysis of dry powders, granules, suspensions and emulsion from 1 μm to 10,000 μm

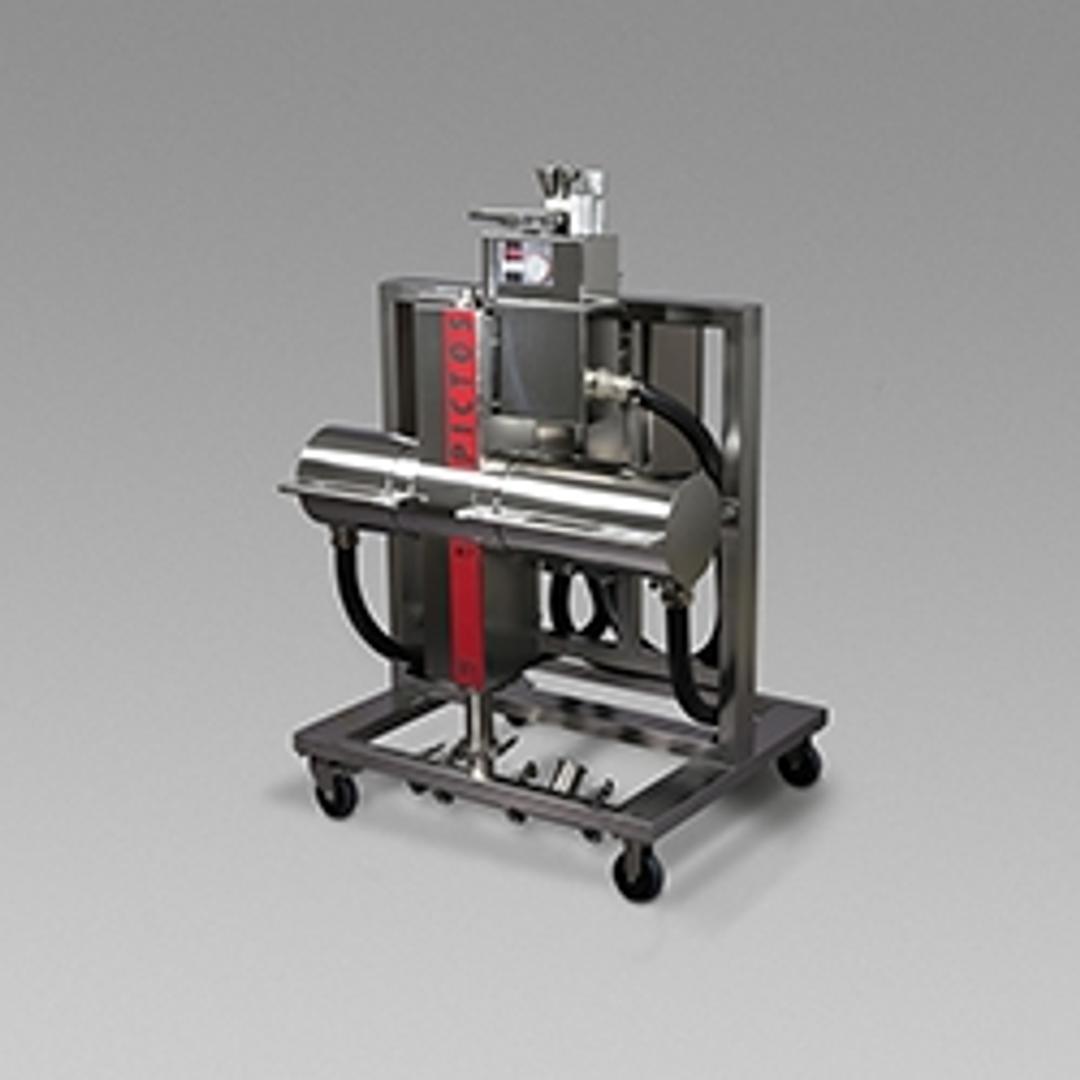

PICTOS with VIBRI dosing unit at-line

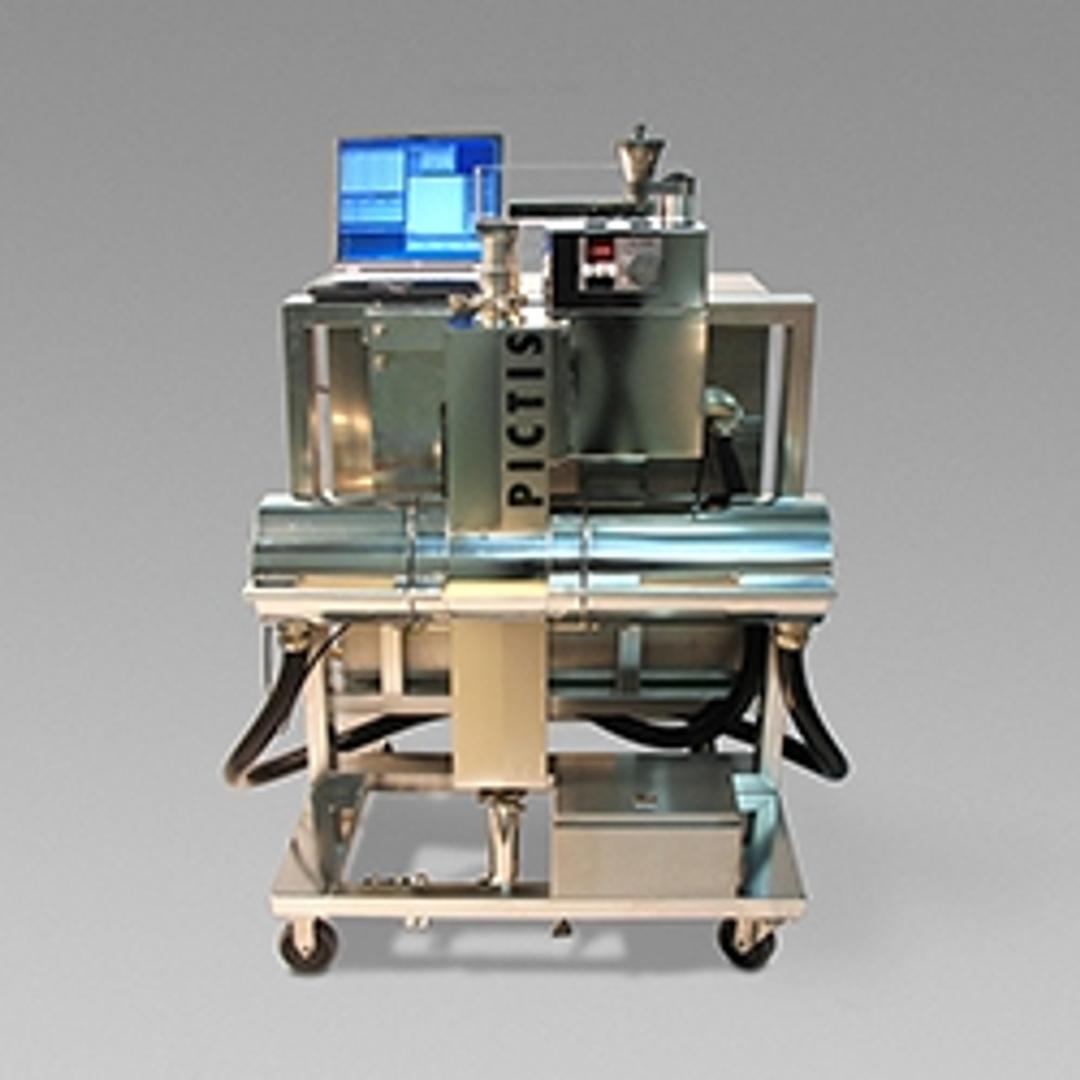

PICTIS with VIBRI on-line

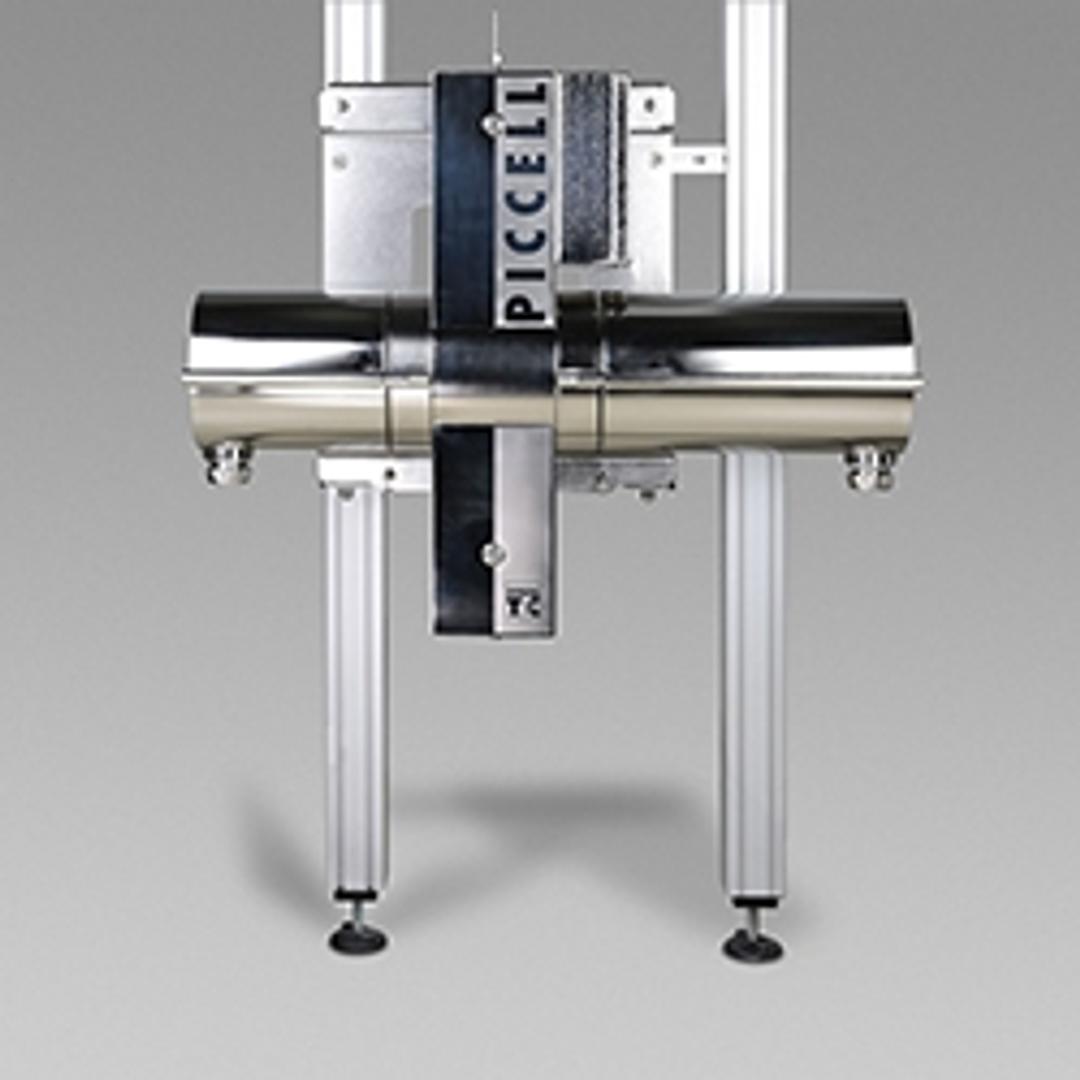

PICCELL on-line configuration
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The PICTOS, PICTIS & PICCELL image analysis sensors enable process-related particle size and shape characterization covering a size range from 1 µm to 10,000 µm.
PICTOS integrates QICPIC dynamic image analysis and RODOS dry dispersion technology in a robust housing, which was specifically developed for on-line applications. PICTIS combines image analysis and the gentle gravitational disperser GRADIS, allowing at-line or on-line applications in process environments. PICCELL with its flow-through cuvette finally transfers wet dispersion to on-line operations of image analysis.
Feeding of PICTOS is realized either with the dynamic and representative sampling system TWISTER, MIXER, or PROBE. Also, automatic as well as manual feeding is an option. PICTIS can be fed by alternative samplers, manually or automatically user control. PICELL is connected to the process line via a bypass.
PICTOS | TWISTER & Co. Features
- Particle size and shape characterisation
- Fibre analysis
- Powerful and complete dispersion of fine and cohesive powders, granules, and fibers with PICTOS
- Dispersion of free-flowing, coarser, and metastable powders, fibers, and granules with PICTIS
- Sensitive analysis of emulsions and suspensions with PICCELL
- Measurement outside the process line under process-related conditions
- Method transfer possible due to identical key components with off-line image analyzers QICPIC with RODOS, GRADIS, or LIXELL
- Real-time process analyses for timely process interventions
- GMP-compliant system design
- Remote control of the measurement procedure via TCP/IP or serial interface
- Process control systems can be connected via TCP/IP, OPC UA, Modbus® and Profibus®
PICTOS | TWISTER & Co. Features
- Pharmaceutical Products (Methylcellulose …)
- Extruded Polystyrene (EPS)
- Foundry Sands
- Pulpy Drinks
- From high purity GMP applications to applications in the harshest industrial environments
