Sine-Wave Vibro Viscometer SV Series 0.3 - 1,000 mPa·s
The SV-1A tuning fork vibro viscometer is capable of continuous measurement over a range of viscosities from 0.3 to 1000 mPa·s. 2 ml Sample Measurement Now Possible! This viscometer is able to easily measure the state transition from sol to gel as there is no need to change sensors during measurement. Measurement intervals can be set freely allowing for continuous 24-hour measurement or measurement of any long term viscosity…

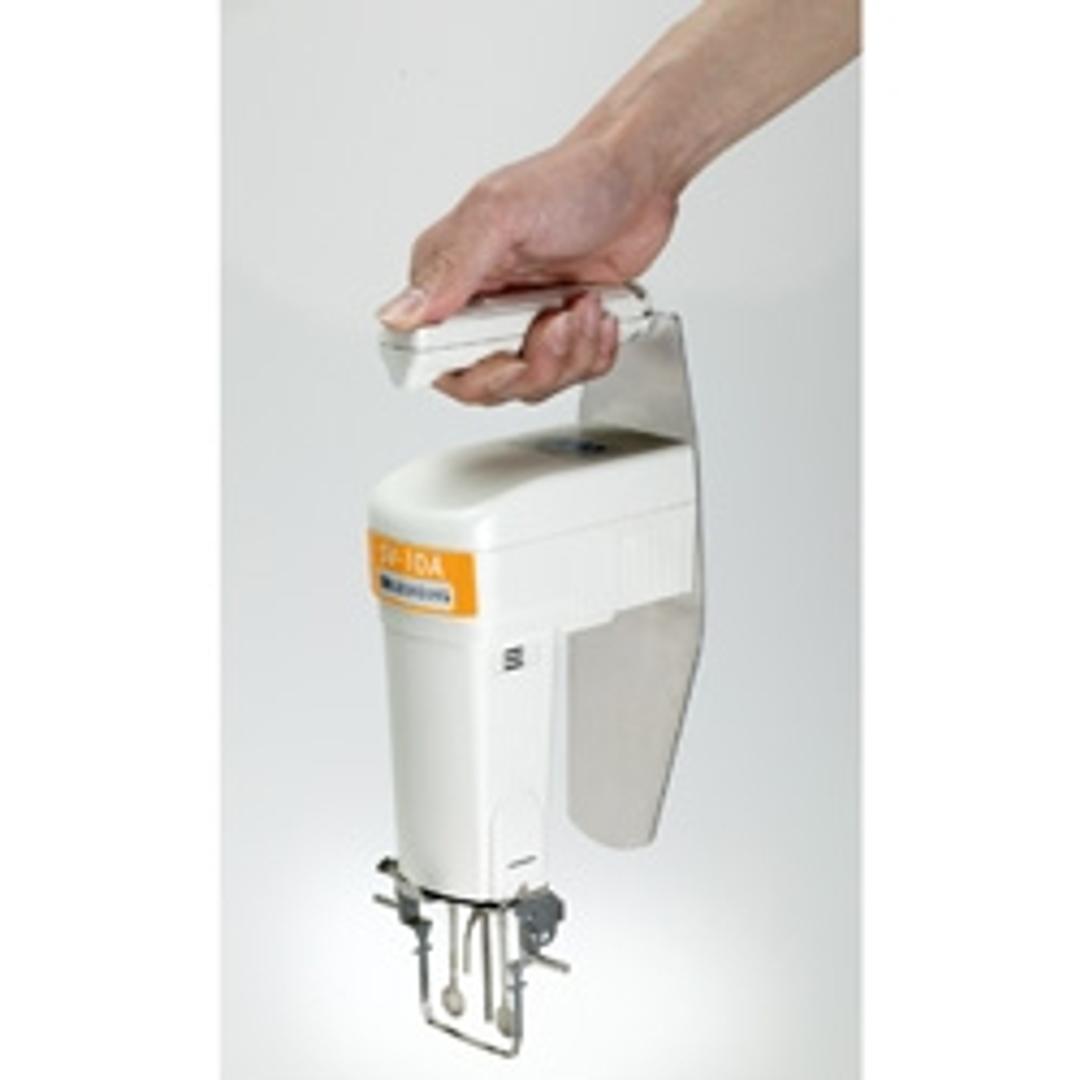

SV-1A: miniturised sensor
SV-1A: Closeup

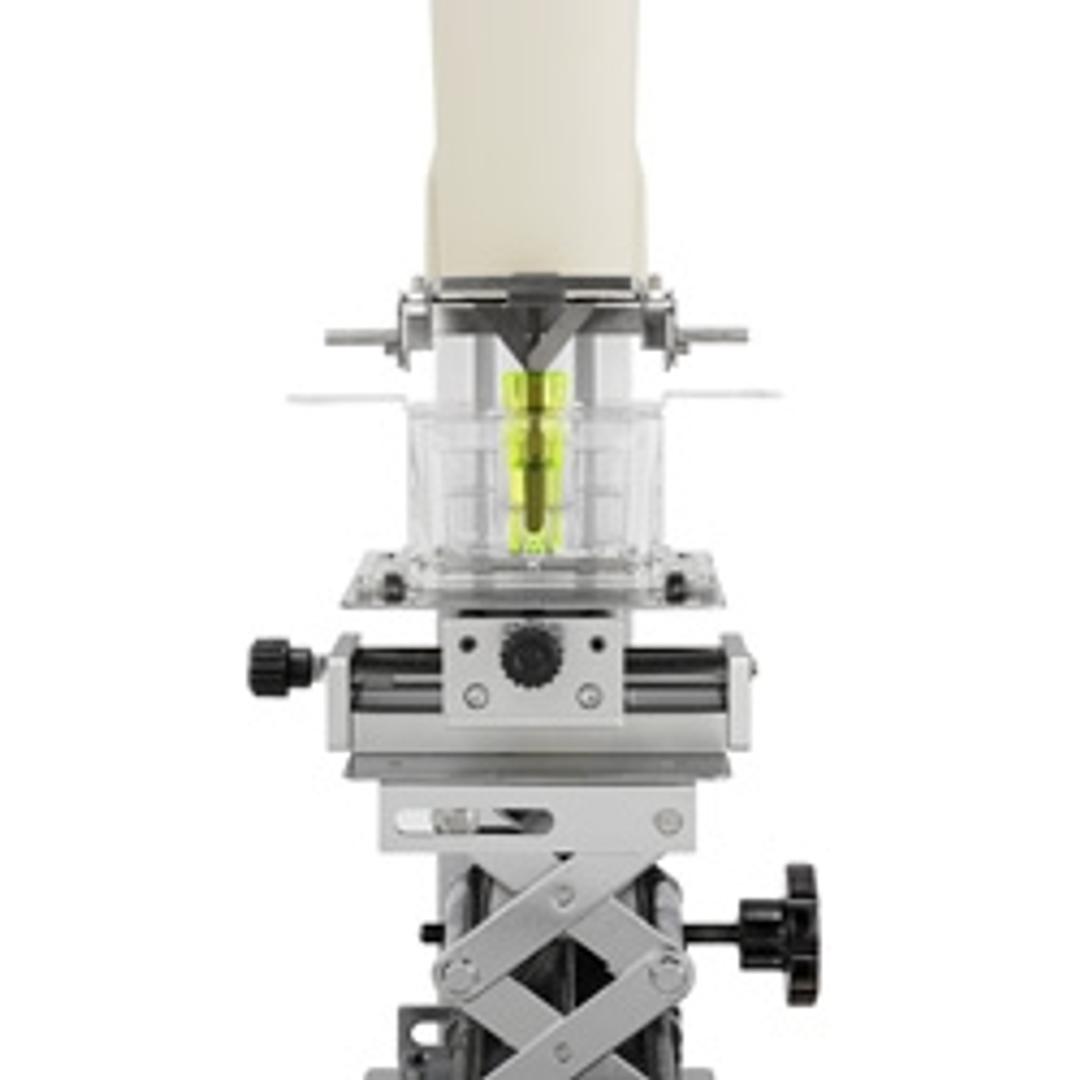

SV-1A: Sensor Unit
Request Pricing
Receive your quote directly from the manufacturer.
Features
- 2 ml sample measurement
- Anti-corrosive, titanium sensor plates and temperature sensor
- X-Y-Z stage for fine position adjustment of the sample cup
- Wide-range, continuous measurement without replacing the sensor plates
- Simultaneous measurements of temperature and viscosity
- Windows Communication Tools WinCT-Viscosity and a serial-USB converter provided as standard
- Easy set up and very quick measurement
- Excellent repeatability (1% of the measured value by standard deviation)
- Extremely high sensitivity (detects a viscosity as low as 0.3 mPa·s)
- Little interference to the sample fluid
- Possible to measure fluids in motion
- Simplified calibration function
- Easy cleaning after measurement
Standard accessories delivered with SV1-A:
- 10 x 2ml-sample tubes with lid (polycarbonate)
- 5 x 35ml-sample cup (polycarbonate)
- 10 x 2ml-sample tubes (glass)
- 5 x holders for 2ml-sample tubes: 3 in black and 2 transparent
- 1 rack for 2ml-sample tubes
- 1 water jacket (polycarbonate), for temperature control
- WinCT-Viscosity software, RS-232C interface and cable
- USB adapter
External Input / Output
RS-232C interface
