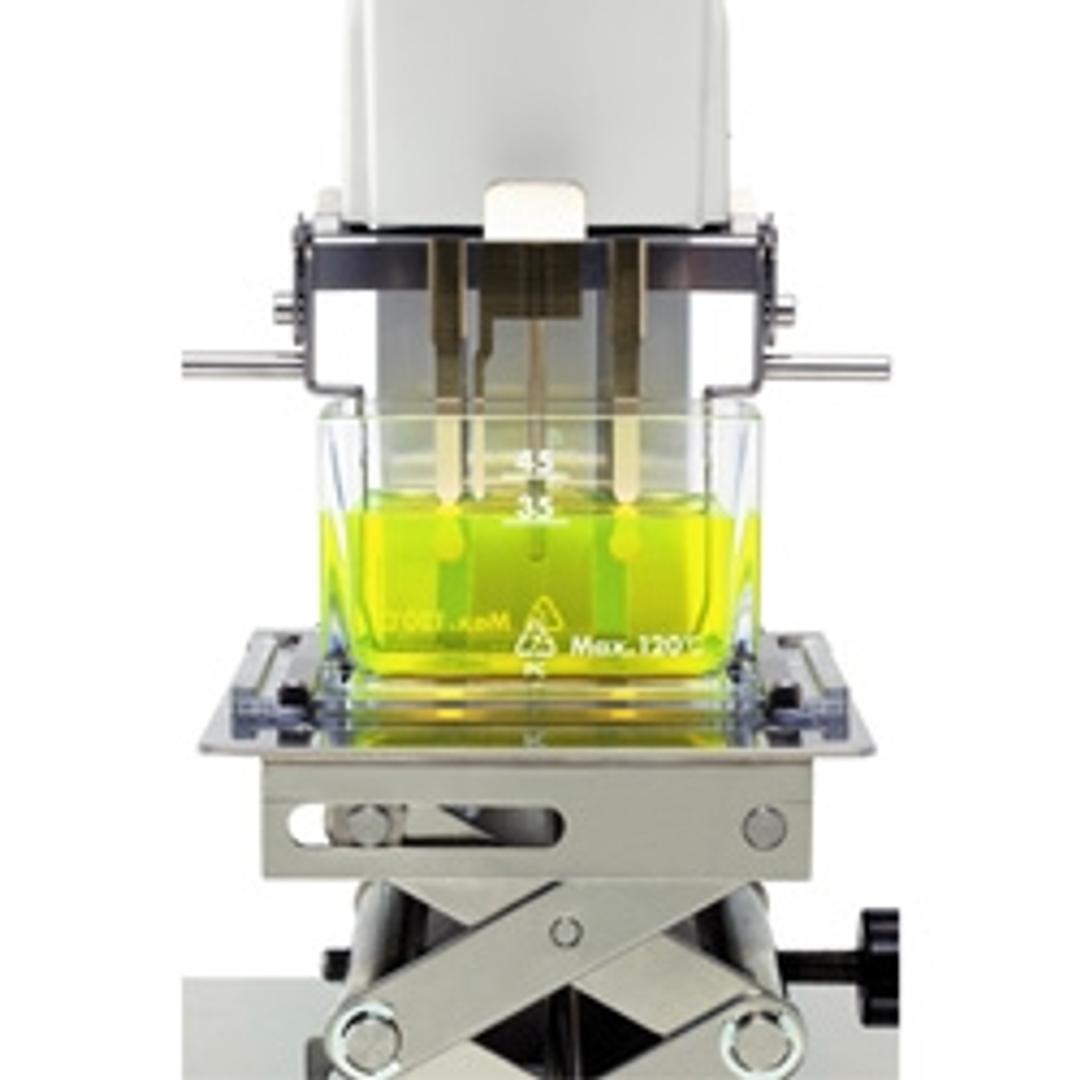

Sine-Wave Vibro Viscometer SV Series 1 - 100 Pa·s
Revolutionary range of viscometer featuring the vibrating tuning fork measurement method. The SV Series provides a fast, highly accurate result and is simple to use. Ideal for non Newtonian products particularly those with a volatile nature. The SV-10 has a measurement range of 1,000 - 100,000mPa·s. The SV series measures viscosity by detecting the driving current necessary to resonate two sensor plates at a constant freque…
SV-10/100
SV-100: Sensor Unit
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
- Wide measurement range: 1,000 – 100,000mPa·s.
- Measurement of very low viscosities (down to 1/3 of water viscosity!)
- Temperature measurement from 0 to 160° C
- Fast measurements: 1st result within 15 seconds, and refresh in real time
- Possible continuous measurements in order to characterize changes of state
- High precision with a repeatability of ±1% of displayed value
- Small size sample: cups of 35ml, 13ml, 10ml
- Possibility to do measurements directly into your containers: beakers, product packages, etc
- Low mechanical impact: preservation of sample characteristics and its texture
- Negligible thermal impact
- Measurements possible on foaming samples, on foam itself, on flowing or agitated samples
- Simple operation: no configuration – just push the start button
- Easy cleaning
- WinCT-Viscosity software for data acquisition on PC, graphic display of curves, and data archiving (viscosity curves against temperature or time)
- Calibration (judgement and even adjustment) of viscosity possible by the user: 1 or 2 points
- Temperature control of sample with water jacket option (AX-SV-37) or other methods
