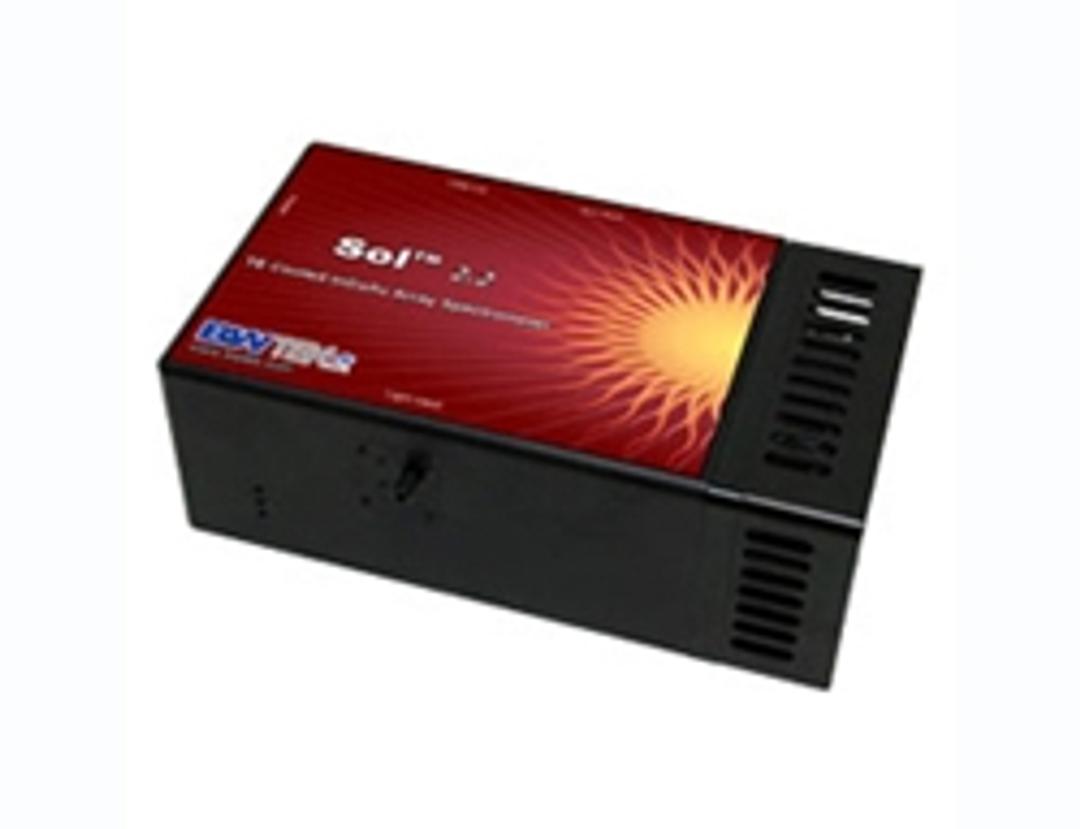

Sol 2.2 ‒ High Resolution TE Cooled InGaAs Array Spectrometer

The Sol™ 2.2 NIR spectrometer is the only extended InGaAs array spectrometer with a range as wide as 900nm-2200nm that can be configured for resolutions as fine as 3.5nm The Sol 2.2 is a high performance linear InGaAs array spectrometer, featuring 512 (standard) or 1024 pixels with TE Cooling down to -15°C, all while providing high throughput and large dynamic range. Using the included software, you can choose between High Se…

B&W Tek, Inc.

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The Sol™ 2.2 NIR spectrometer is the only extended InGaAs array spectrometer with a range as wide as 900nm-2200nm that can be configured for resolutions as fine as 3.5nm

The Sol 2.2 is a high performance linear InGaAs array spectrometer, featuring 512 (standard) or 1024 pixels with TE Cooling down to -15°C, all while providing high throughput and large dynamic range. Using the included software, you can choose between High Sensitivity and High Dynamic Range mode. The Sol 2.2 NIR spectrometer features dozens of configurations between 900nm and 2200nm and spectral resolution as low as 3.5nm.

The Sol 2.2 NIR spectrometer features an SMA 905 fiber optic input, a built-in 16-bit digitizer, and is USB 2.0 plug-and-play compatible. These spectrometers are ideal for demanding applications in process monitoring, quality control, and materials identification. Flexible custom configurations and application support are available for OEM applications.


Sol 2.2 ‒ High Resolution TE Cooled InGaAs Array Spectrometer Features:

  • 900nm - 1700nm Spectral Range
  • Resolution as Fine as 0.35nm
  • Built-in 16-bit Digitizer
  • -10°C TE Cooling
  • Two Gain Modes
