TD4
Automatic ring tensiometer with highest precision

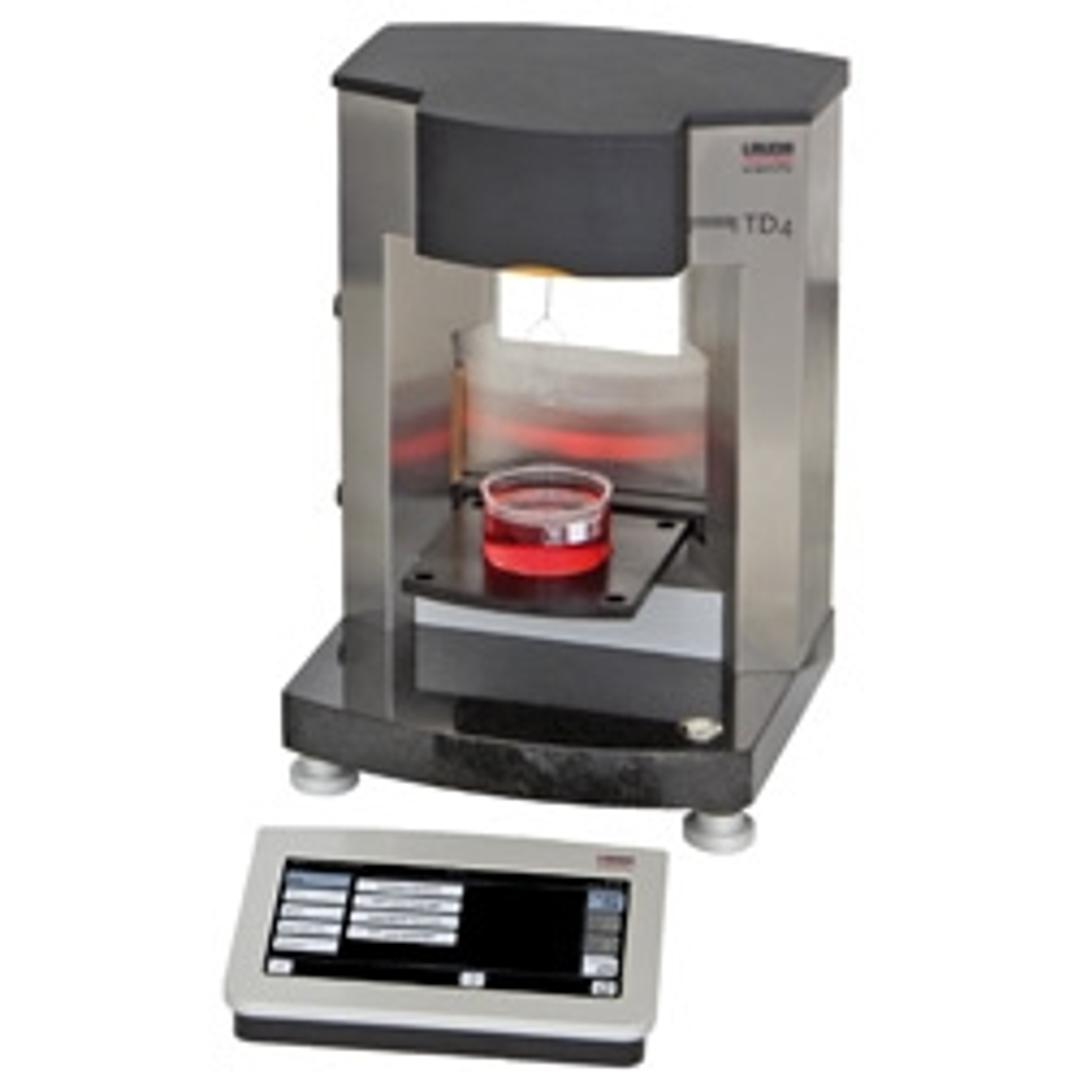

TD4 with standard Du-Nuöy ring

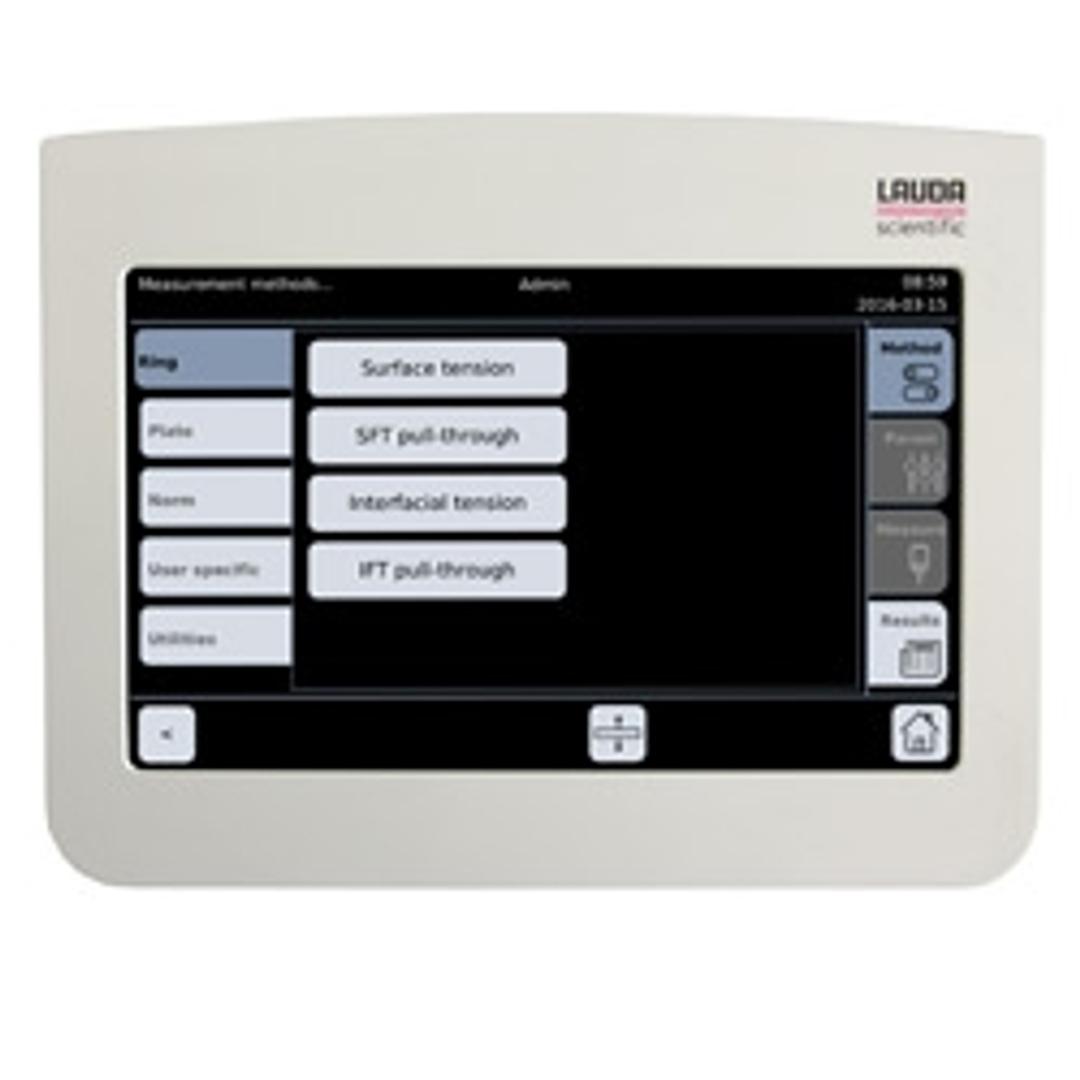

Intuitive control with the Tensio.Touch

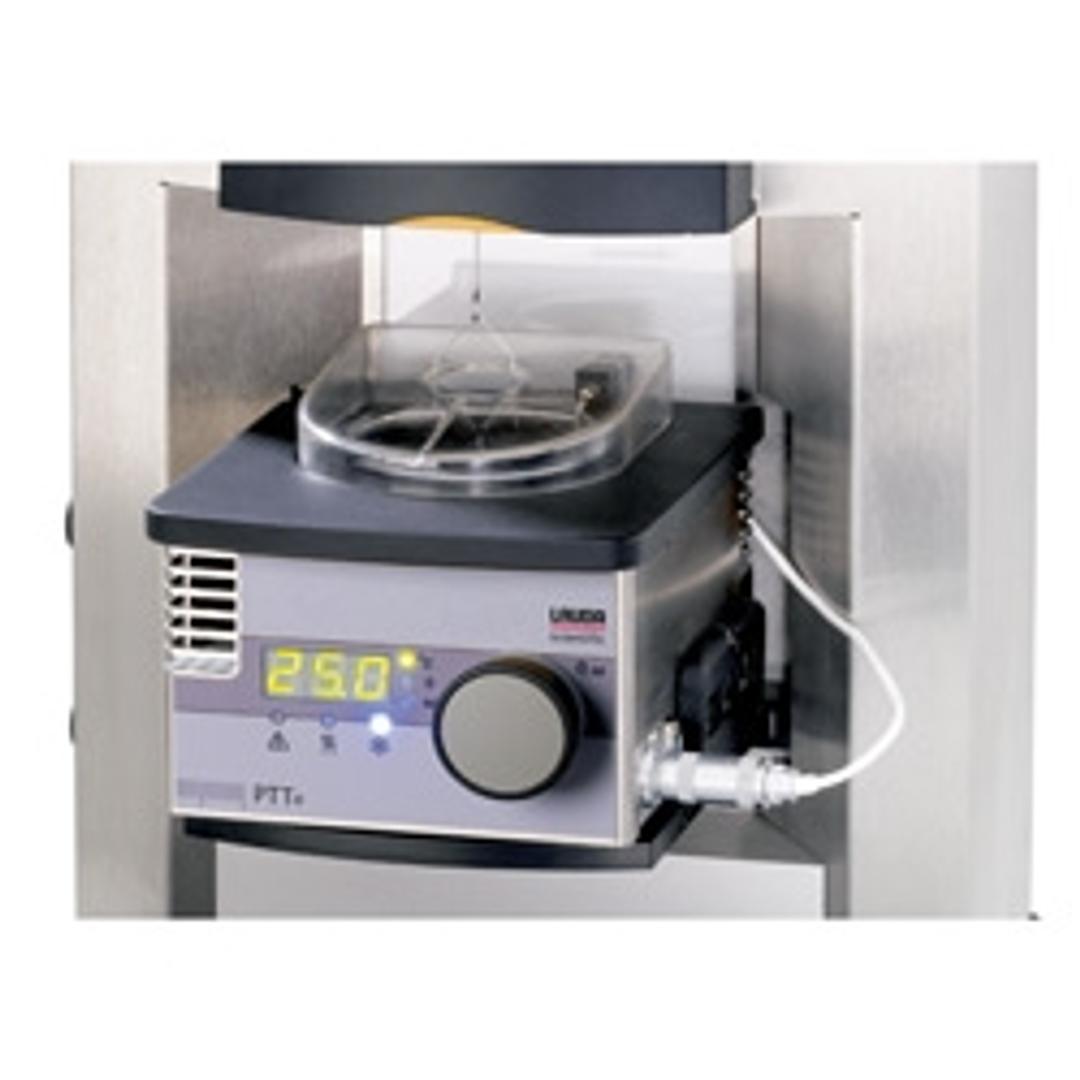

PTT+ for direct temperature control
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Best automatic tensiometer for reproducible surface and interfacial tension results
- Ease-of-use, precision and robustness combined on minimum area
- Precise and reproducible automatic operation for research and quality testing
- Predefined standard methods (i.e. ASTM D971, EN 14370, IEC 62961)
- Intuitive user interface Tensio.Touch
- Precise measurement due to high-precision position/distance measurement
- Automatic surface recognition for precise Wilhelmy-plate measurement
- Lamella height measurement possible
- Measurement of IFT at very low density differences
- Adjustable sample stage speed
- Integrated user management with different levels – GLP/GMP compliant
- Log-file for operation traceability
- Optional thermostat PTT+ with direct connectivity to the instrument
- Direct temperature control in the range of 5 to 80°C
- Low space requirement
- Including calibration weight, density measurement accessory and 1 set of sample beakers
- Resolution: 0.01 mN/m
- Weight resolution: 0.1mg
- Ring correction formulas implemented (Zuidema/Waters and Harkins/Jordan)
