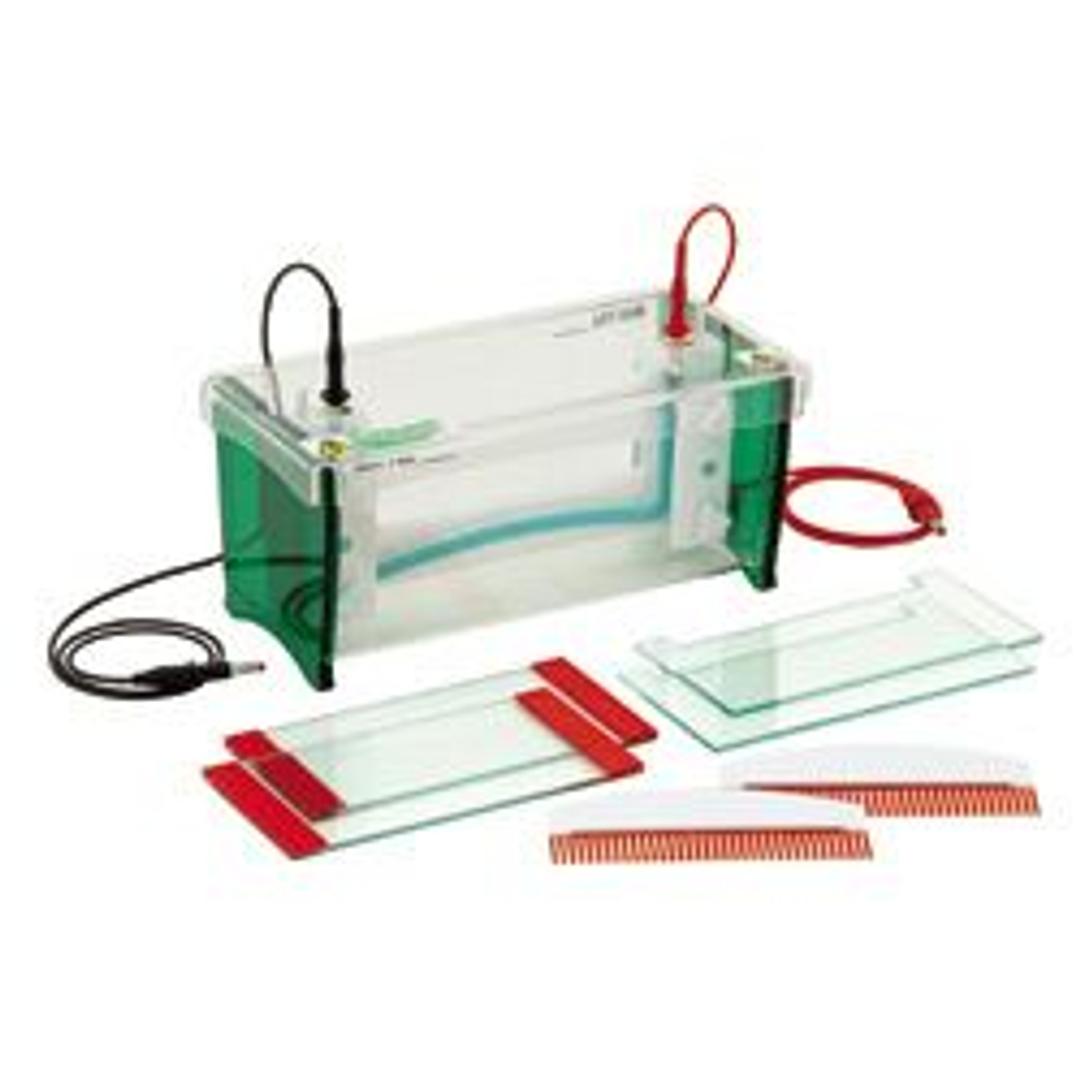

TV200 Standard Twin-Plate Wide Format Mini-Gel Electrophoresis Unit

The TV200 twin-plate 20.5 x 10cm (W x H) wide format mini-gel units are designed specifically for PAGE techniques requiring tape-cast gels or gels cast within the TV200-MC2 2-gel and TV200-MC10 10-gel multicasters, which are also available through Scie-Plas.

A 20.5cm gel width allows the user to separate twice the number of samples within a single gel, thereby eliminating the problems borne from comparing samples resolved in 2 separate mini-gels.


TV200 Standard Twin-Plate Wide Format Mini-Gel Electrophoresis Unit Features:

• Twin Plate 20.5 x 10cm (W x H) wide format mini-gel unit – designed specifically for PAGE techniques requiring self-cast gels.
• Wide Format – 20.5sm gel width effectively allows 2 mini-gels to be run within the same gel.
• Glass plate stops within the newly modified GRM – lock the glass plates firmly into position onto soft silicone gaskets in the casting base to ensure leak-free gel-casting.
• Additional gel casting – with the optional TV400-CB cam-pin casting base or TV400-MC2 and 2 gel multicaster.
• Float glass plates are 4mm thick – garauntees uniform gel thickness and even sample migration, and with ground edges to inhibit sample leakage during casting.
• Twin Screws on each gel-clamp act in cunjuction with a counterbalanced, dovetailed silicone gasket to disperse pressure evenly along the height and bredth of the gel as the screws are tightened.
• Colour-coded combs and spacers available in 0.75, 1, 1.5 and 2mm thicknesses.
