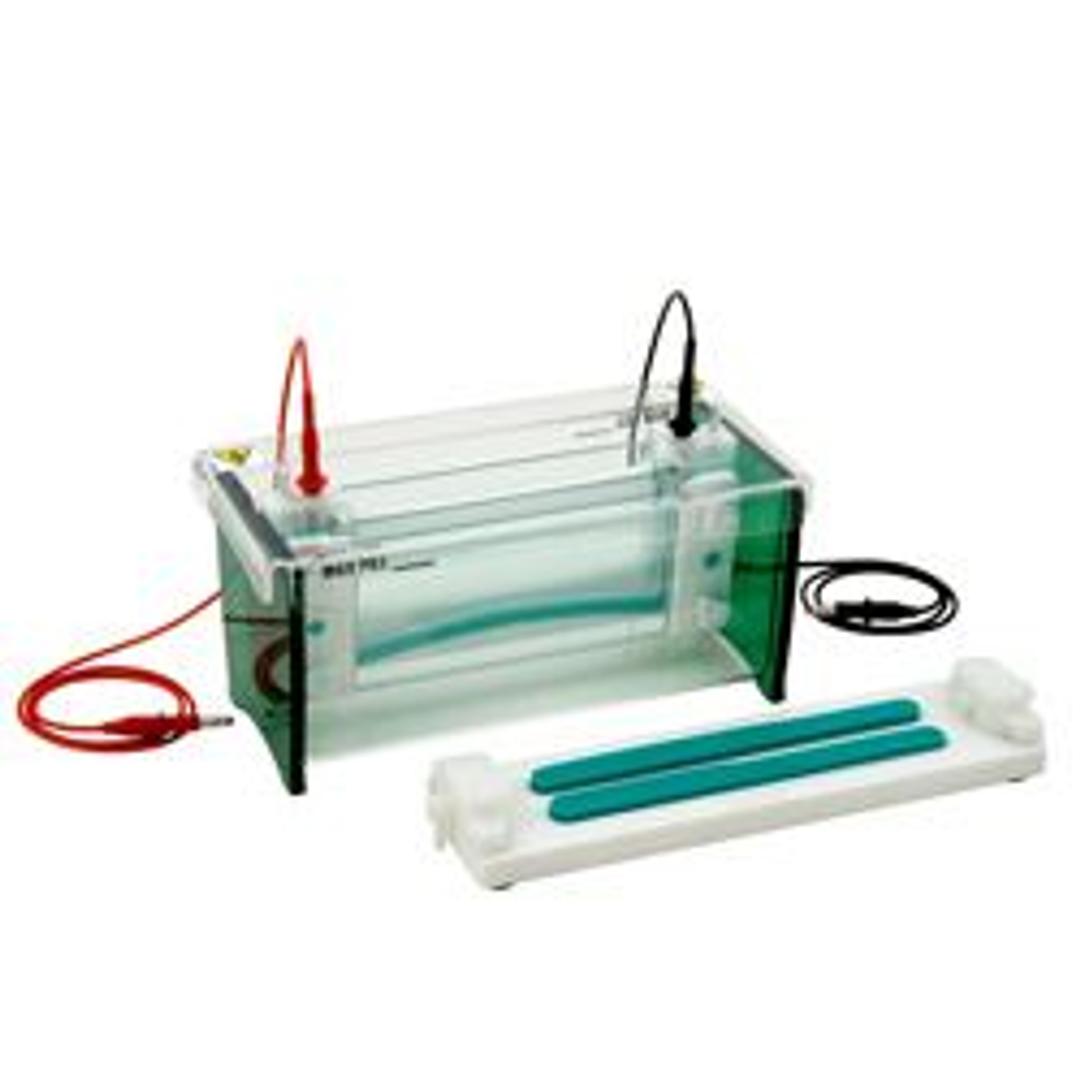

TV200Y Standard Twin-Plate Wide Format Mini-Gel Electrophoresis Unit

The TV200Y twin-plate 20.5 x 10cm (W x H) wide format mini-gel unit includes, as standard, a precision engineered casting base, which acts in conjunction with our recently modified TV200-GRM to provide simple, leak-free casting.

Twin screws, located on each gel clamp within the GRM, work in tandem with a dovetailed silicone gasket to distribute pressure evenly along the height and breadth of the gel, while glass plate stops lock the glass plates firmly into position on the casting base as the cam pins are turned clockwise through 120°.


TV200Y Standard Twin-Plate Wide Format Mini-Gel Electrophoresis Unit Features:

• Twin Plate 20.5 x 10cm (W x H) wide format mini-gel unit – designed specifically for PAGE techniques requiring self-cast gels.
• Wide Format – 20.5sm gel width effectively allows 2 mini-gels to be run within the same gel
• Casting Base included as standard.
• Glass plate stops within the newly modified GRM – lock the glass plates firmly into position onto soft silicone gaskets in the casting base to ensure leak-free gel-casting.
• Additional gel casting – with the optional TV400-CB cam-pin casting base or TV400-MC2 and 2 gel multicaster.
• Float glass plates are 4mm thick – garauntees uniform gel thickness and even sample migration, and with ground edges to inhibit sample leakage during casting.
• Twin Screws on each gel-clamp act in cunjuction with a counterbalanced, dovetailed silicone gasket to disperse pressure evenly along the height and bredth of the gel as the screws are tightened.
• Colour-coded combs and spacers available in 0.75, 1, 1.5 and 2mm thicknesses.
