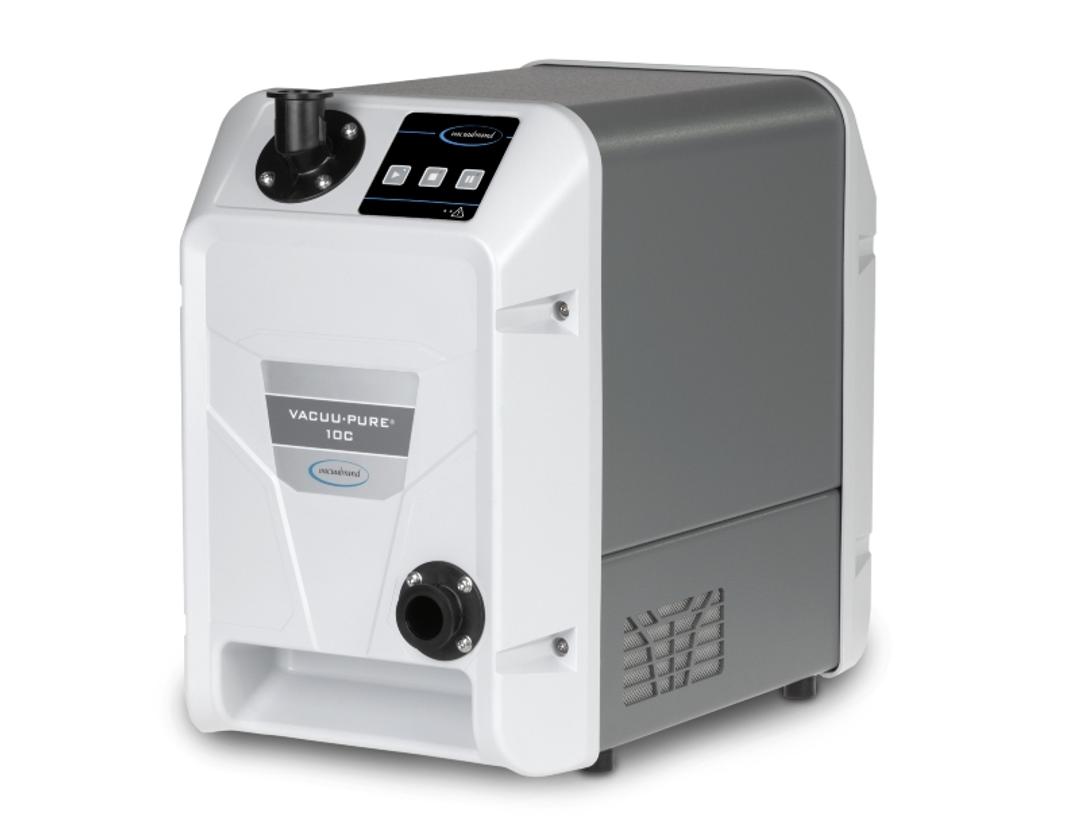

VACUU·PURE 10C vacuum pump
With the new VACUU·PURE® 10C, VACUUBRAND introduces a unique chemically resistant, oil-free screw pump for vacuum down to 10-3 mbar. The pump features maintenance-free technology with no wear parts and delivers a pumping speed of 9 m3/h. Users benefit from clean processes, greater efficiency, and improved sustainability.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

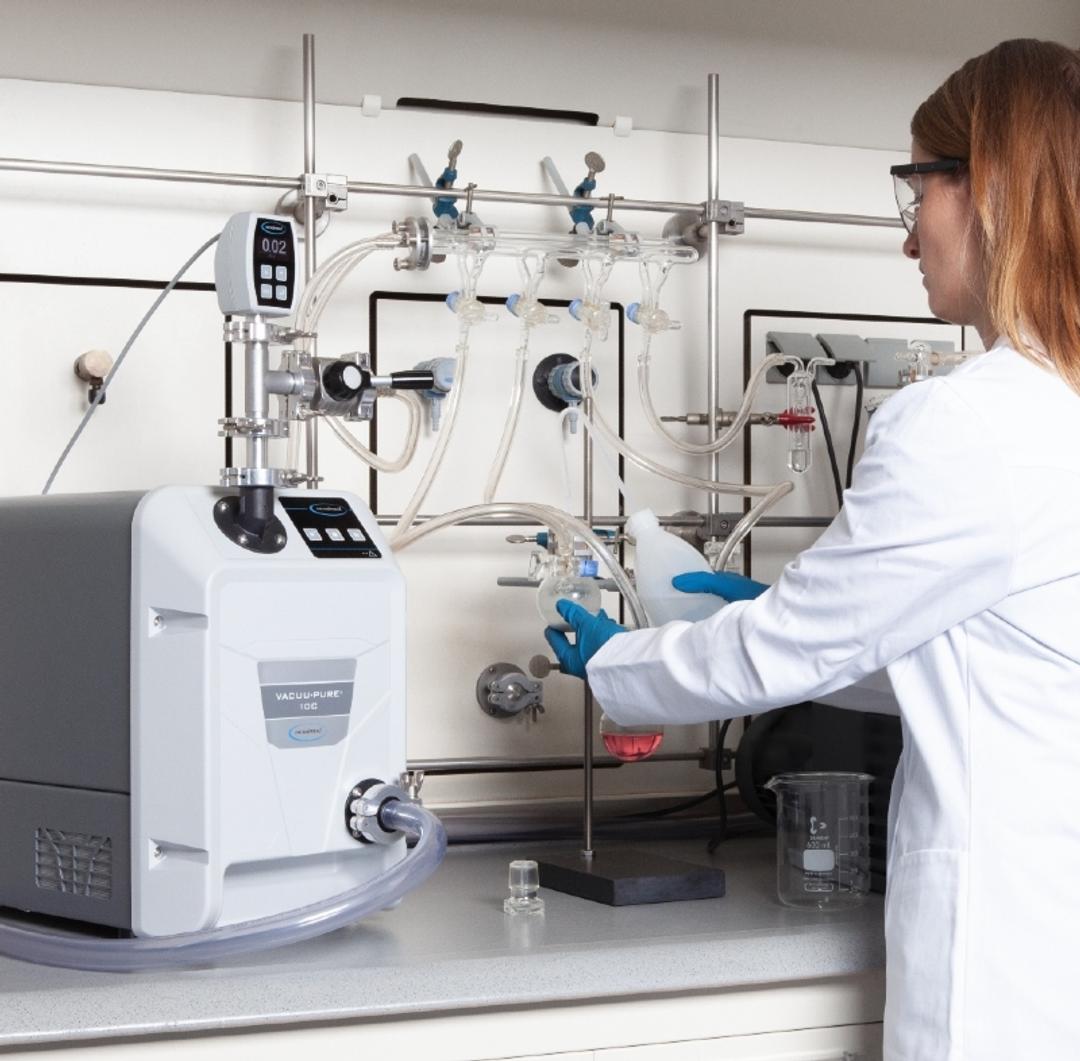

VACUU·PURE 10C is the ideal solution for processes in which aggressive gases or vapors are pumped and clean vacuum is also required. This lets the vacuum pump cover many application areas in the fields of analytics, chemistry, life sciences, pharmaceuticals, for work ranging from bench-scale research & development up to the kilo laboratory. It is ideal for processes such as vacuum drying, Schlenk lines, heat treatment, distillation, degassing, coating, or as fore vacuum for turbomolecular pumps. VACUU-PURE is a new, innovative technology for the vacuum range down to 10-3 mbar. Uniquely among fine vacuum pumps, VACUU∙PURE pumps can also be used continuously at higher pressures, i.e. in the complete working range between atmospheric pressure and the ultimate vacuum of the pump.
Clean processes and sustainability
VACUU·PURE is a significant advancement of dry screw pump technology. VACUU∙PURE’s special design features two cantilevered spindles and a magnetic gear which is completely oil-free. The spindles run contact-free, eliminating wear and abrasion. This allows clean processes and pure products without contamination by oil or lubricants in the entire vacuum range down to 10-3 mbar. This also contributes to the protection of the laboratory and the environment, as oil emissions and waste oil disposal are eliminated. Due to the contact-free, lubricant-free design, no regular maintenance is required. The vacuum – and the purity of the process – is not affected by wear and tear of wear parts.
High chemical compatibility and efficiency
To work with aggressive gases or vapors, wetted components of the vacuum pump are all made of chemically resistant plastics. A thick PEEK encapsulation protects the spindles and stator in the pump chamber. The high chemical compatibility allows efficient pumping without interruption – an upstream cold trap is not necessary in most processes. The optimized screw pump also features high condensate tolerance, which means that no gas ballast is required, even with high chemical vapor generation. An integrated regeneration mode allows the vacuum pump to dry quickly after the end of the process.
Features
- 10-3 mbar vacuum range
- 100% oil-free
- Chemically resistant
- No wear parts
Applications

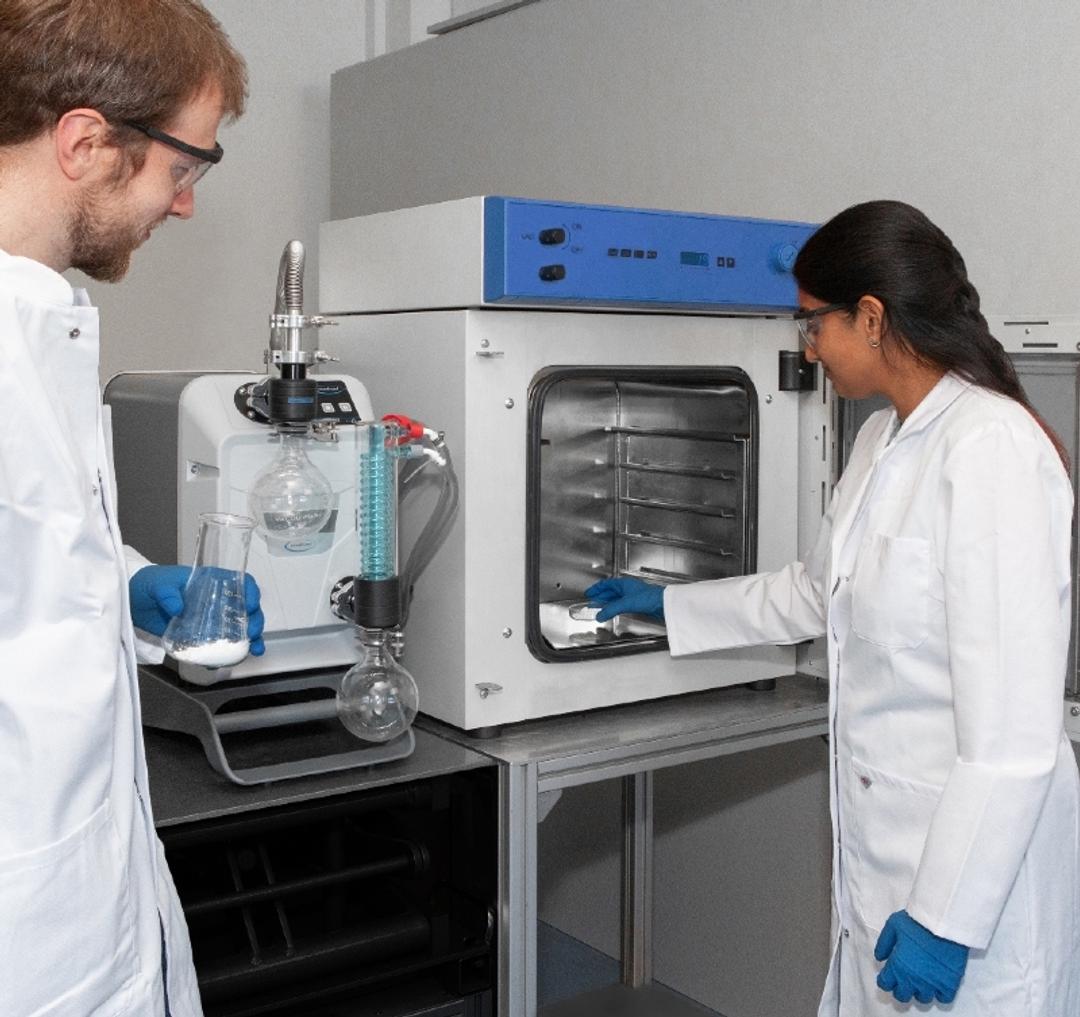

- Vacuum drying
- Distillation
- Heat treatment
- Schlenk Line
- Freeze drying
- Degassing
- Coating
- Fore vacuum for turbomolecular pumps
- Analytical applications
