Vega Benchtop System
HiFi sequencing within reach
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

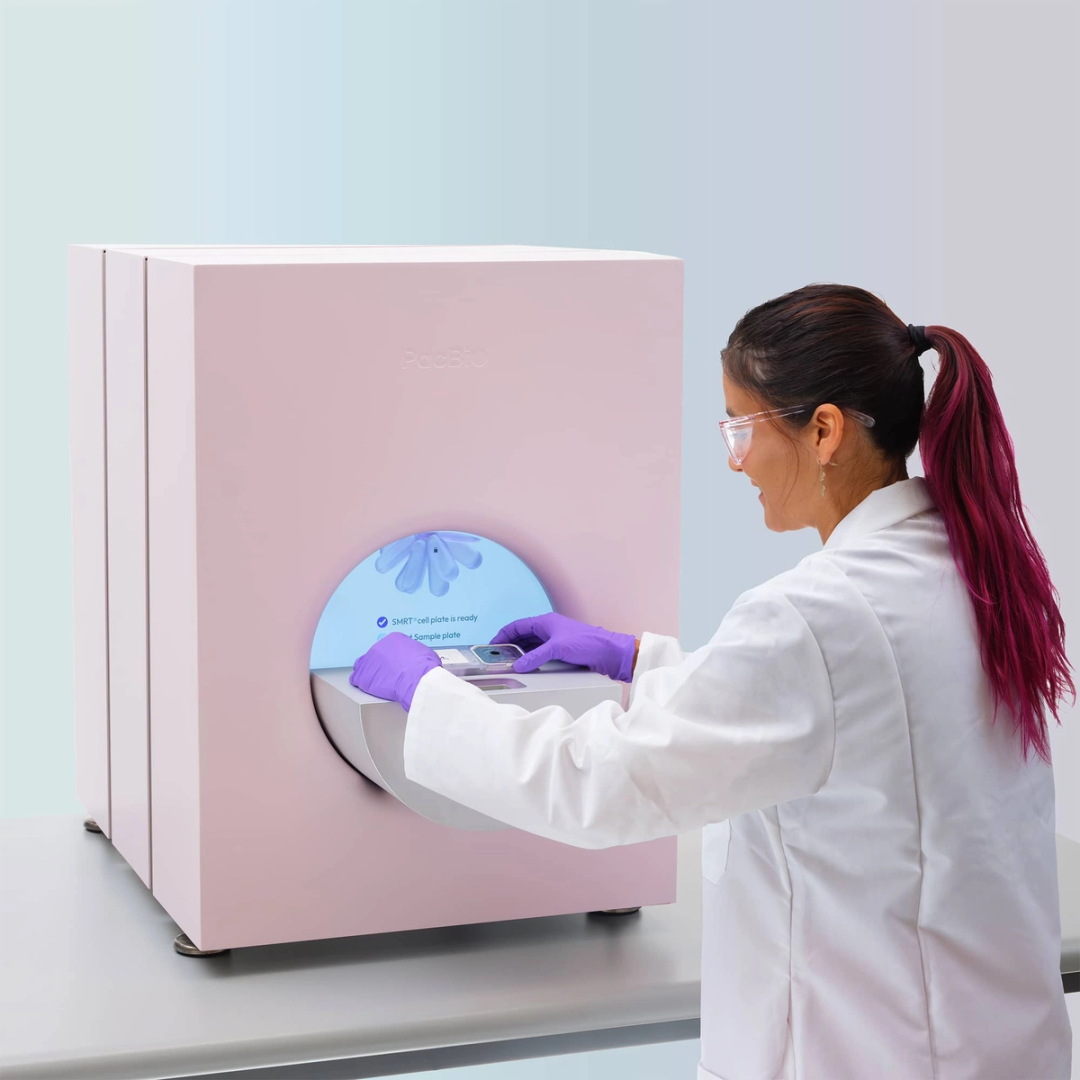

With the Vega™ system, the established power of HiFi sequencing—long reads, exceptional accuracy, and direct methylation detection—is now available for your lab. Adopting HiFi technology is made easy with streamlined end-to-end workflows from sample prep to analysis, plug-and-play system setup, and user-friendly interfaces like the web-based run manager SMRT® Link. Built on the same technologies that power the Revio® system, the Vega system gives you a more complete view of genomes, epigenomes, and transcriptomes from your benchtop.
The Vega benchtop system delivers up to 60 Gb of HiFi data per run, methylation calling included, using a single SMRT® Cell. The onboard compute provides accurate base calling, HiFi read generation with DeepConsensus, methylation calling, barcode demultiplexing, and BAM file generation.
Instrument specifications
Operating environment
- Temperature: 19–25°C (66–77°F)
- Humidity: 20–80% relative humidity, non-condensing
- Ventilation: 4,250 BTU/hr (1,250 W)
- Altitude: Below 2,250 m (7,380 ft)
- Air quality : Pollution degree 2, indoor use only
- Noise output: <70 dBA
Dimensions
- W × D × H: 55.7 cm (21.9 in) × 69.5 cm (27.4 in) × 76.8 cm (30.2 in)
- Weight: 125 kg (276 lb)
- Crated: W × D × H 93.7 cm (36.9 in) × 79.7 cm (31.4 in) × 126.4 cm (49.8 in)
- Crated weight: 216 kg (476 lb)
Electrical power
- Power requirements: 100–120 VAC at 50–60 Hz
Compute
- Network connection: 1 GbE
- Instrument operating system: Rocky Linux 9.4
- Output file format: hifi_reads.bam; ~30 GB each, up to 6 TB per year
