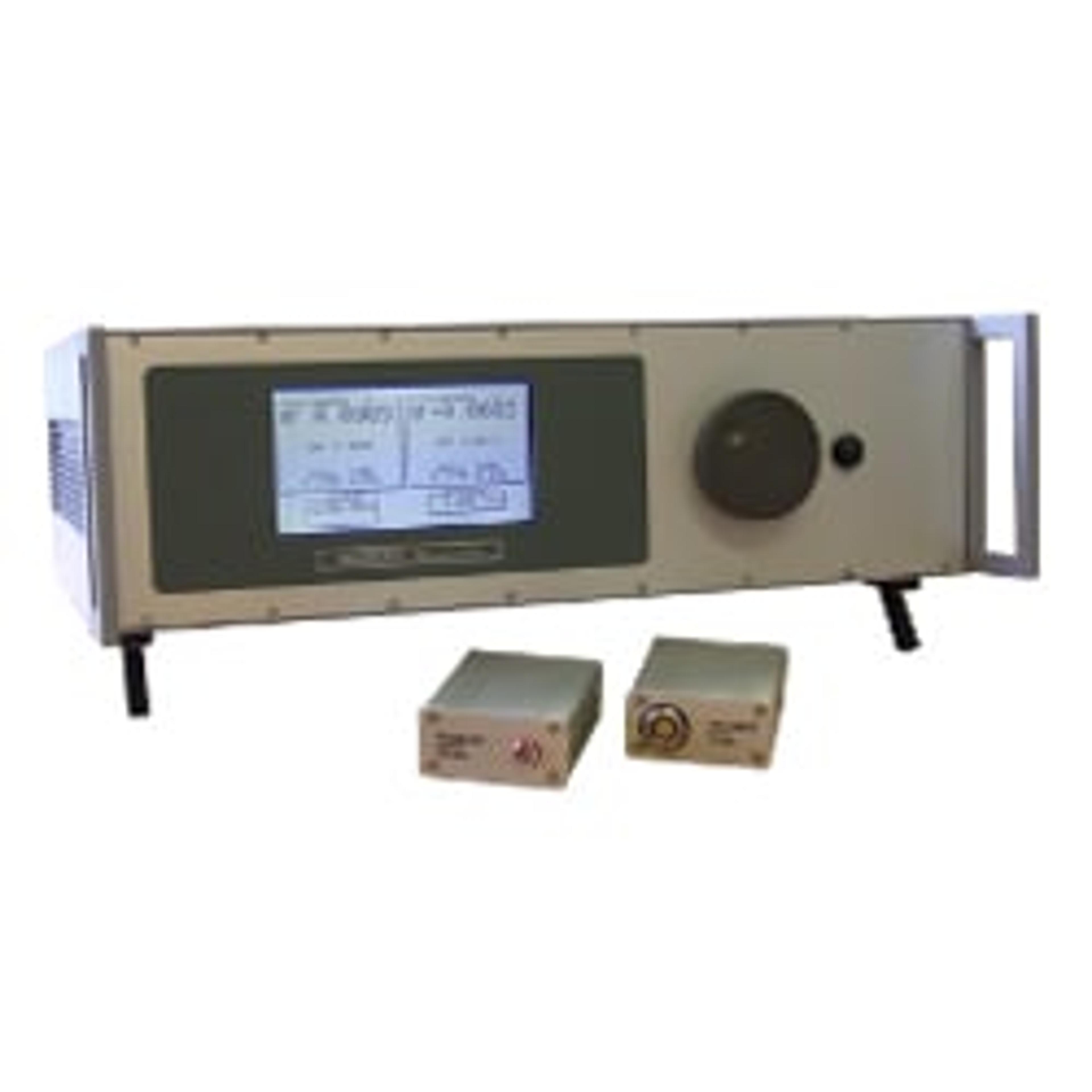

CGM-7 ACPD CRACK GROWTH MONITOR

The CGM-7 is a modern microprocessor based instrument for measuring crack depth in metalsundergoing materials testing. Building on the success of the CGM-5R this unit improves upon theCGM-5R specification by offering two channel operation, higher frequency and current outputs, fullcomputer control and a variety of expansion options.It utilises the alternating current potential drop method (ACPD) which is an established techniq…

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Write your own review

The CGM-7 is a modern microprocessor based instrument for measuring crack depth in metals
undergoing materials testing. Building on the success of the CGM-5R this unit improves upon the
CGM-5R specification by offering two channel operation, higher frequency and current outputs, full
computer control and a variety of expansion options.


It utilises the alternating current potential drop method (ACPD) which is an established technique
covered by the ASTM 647 standard. The technique involves passing an alternating current through
the metal under test and measuring the resultant voltage drop that is created across the specimen.
The presence of a growing defect will alter this voltage and by suitable calibration, a measure of
the defect depth can be obtained.
