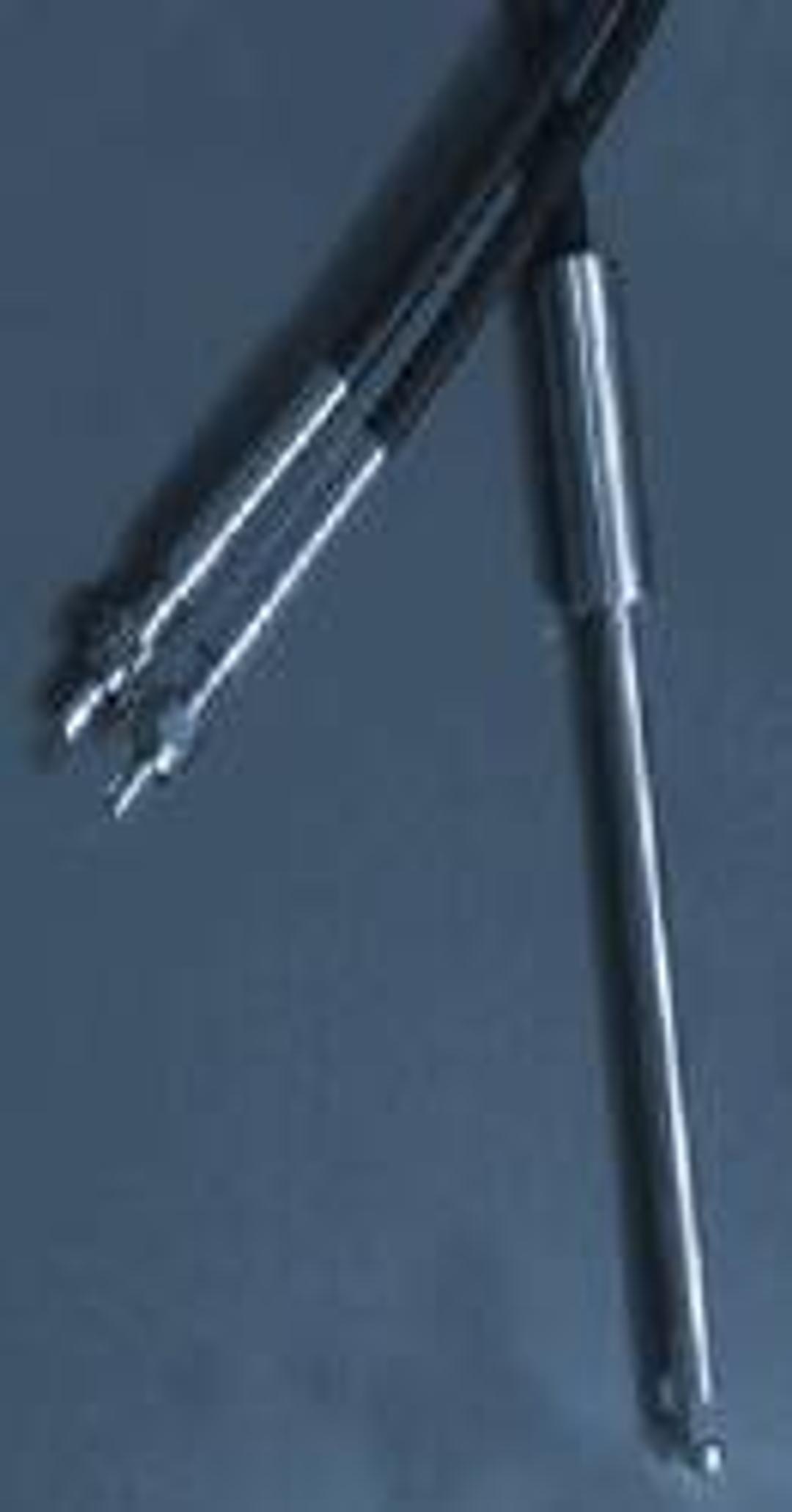

Dip Probe
FeaturesDurable Stainless Steel design Multiple pathlengths with replaceable threaded tips High throughput efficiency Pathlength is two times the gap width (dual pass light path) High repeatability Specifications Fiber type: Silica/Silica, .22 NA Fiber size: 600 microns standard; options for 200 or 400 micron core Probe body material: 316 Stainless Steel (option for Torlon plastic) Diameter: 6.35mm (.25"); Torlon prob…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Robust and well made dip probes. Easy to use and install.
Review Date: 12 Jun 2011 | C Technologies, Inc.
Features
Durable Stainless Steel design
Multiple pathlengths with replaceable threaded tips
High throughput efficiency
Pathlength is two times the gap width (dual pass light path)
High repeatability
Specifications
- Fiber type: Silica/Silica, .22 NA
- Fiber size: 600 microns standard; options for 200 or 400 micron core
- Probe body material: 316 Stainless Steel (option for Torlon plastic)
- Diameter: 6.35mm (.25"); Torlon probe = 7.87mm (.31")
- Length of probe body: ~100mm (4"), depending on pathlength
- Pathlength: 2, 5, 10mm replaceable tip; up to 50mm (1.97")
- Connections: SMA-905
- Overall length: 1.5m (4.5')
- Fiber optic cable sheathing: PVC coated monocoil (option for stainless steel)
- Wavelength ranges: UV-Vis (200-1100nm) or Vis-NIR (400-2200nm)
- Upper temperature range: 125° C
- Pressure rating: 6 bar
