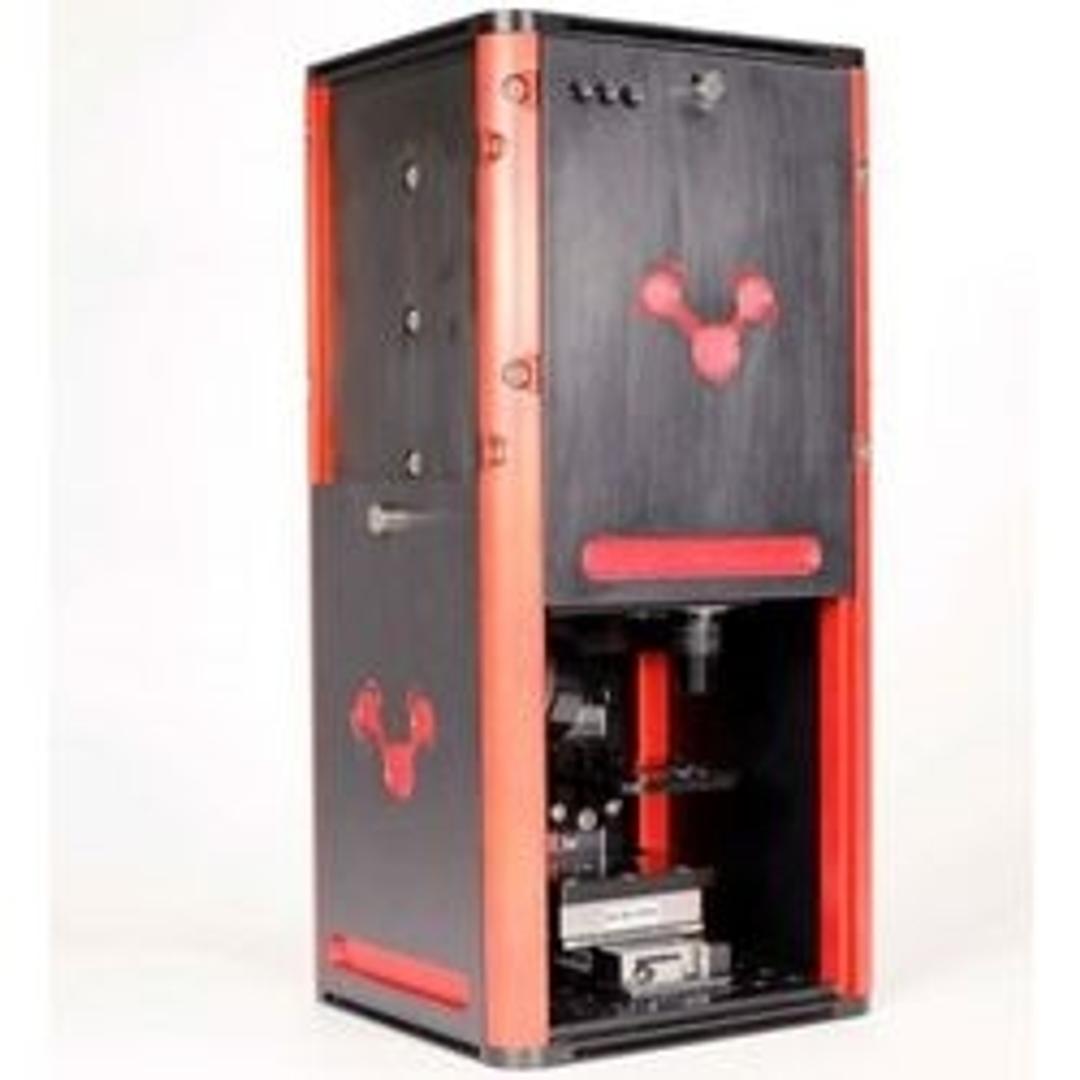

MiniRaman Microscope
Lightnovo's miniRaman microscope is the world's most miniature confocal Raman microscope for 660nm and 785nm laser wavelengths. With a footprint of only 12x13cm all while still providing diffraction-limited spatial resolution, extremely high throughput, and equipped with reflection, off-axis, and transmittance white light microscopy.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
The miniRaman microscope is based on Lightnovo's miniRaman spectrometer, which performs Raman shift and Raman intensity calibration during every spectrum acquisition. This makes miniRaman microscope much less expensive than typical Raman microscopes with frequency-stabilized lasers. The patented technology of the miniRaman microscope guarantees very high throughput, wavenumber accuracy, and Raman intensity control via an in-built reference channel.
The miniRaman microscope technology has been developed for Raman microscopy in near IR range from laser source at wavelengths 660 and 785nm. This instrumental setup allows for both sample viewing using optical microscopy capabilities and simultaneously performing measurements by Raman spectroscopy. The visual observation reveals morphological details of a sample (e.g. color, size, shape), whereas the spectroscopic measurement reveals information about a sample's molecular structure and chemical composition.
The miniRaman microscope is available in five models:
- Standard M
- Power M
- SERS M
- Power Dual M
- Standard Dual M.
Features include: Single 785nm or dual 660nm and 785nm laser
- Spectral range: 400-2700 cm-1 for 785nm laser and 2700-4500cm-1 for 660nm laser
- Power at sample up to 150mW at 785nm, 32nm at 660nm
- Spectral resoluiton 7-15cm-1
- Signal-to-noise ratio up to 1000:1
