OWL SW1.7CL 640 VIS-SWIR
Raptor Photonics, the leading company in SWIR and Visible SWIR cameras is adding a new product to it’s range. The OWL SW1.7 CL-640 is a rugged, high sensitivity digital VIS-SWIR camera. Using a 640 x 512 InGaAs sensor from SCD the OWL enables high sensitivity imaging from 0.4µm to 1.7µm. The 15µm x 15µm pixel pitch enables high resolution VIS-SWIR images. Available with a 14 bit CameraLink output, the OWL 640 will run from 10…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

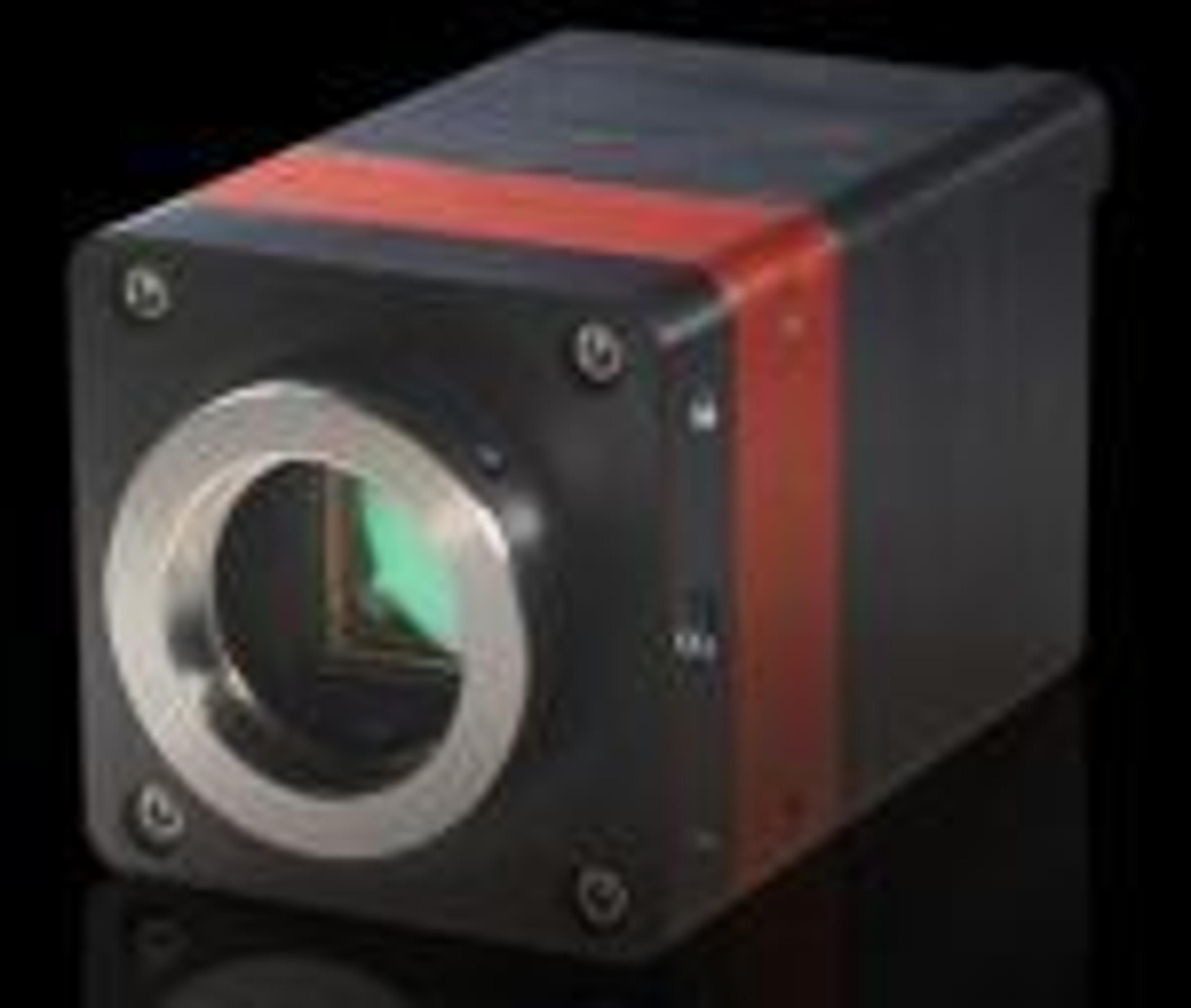

Raptor Photonics, the leading company in SWIR and Visible SWIR cameras is adding a new product to it’s range. The OWL SW1.7 CL-640 is a rugged, high sensitivity digital VIS-SWIR camera. Using a 640 x 512 InGaAs sensor from SCD the OWL enables high sensitivity imaging from 0.4µm to 1.7µm. The 15µm x 15µm pixel pitch enables high resolution VIS-SWIR images.
Available with a 14 bit CameraLink output, the OWL 640 will run from 10 to 120Hz enabling high speed digital video with intelligent auto AGC. This new feature On-board Automated Gain Control (AGC) will enable clear video in all light conditions. The OWL 640 also features an on-board intelligent 3 point NUC which will provide the highest quality images.
As with all Raptor cameras the OWL 640 is an ultra compact, low power (<5W) camera which makes it ideal for hand-held, mobile or airborne systems. It is also very rugged, and has no fan enabling integration into UAV, handheld or any Electro-Optic system.
