ProtoCOL 3 for Automatic Colony Counting and Zone Measuring
ProtoCOL 3/ProtoCOL 3 HD is the next generation instrument for colony counting, zone measurements (inhibition and antibiotic susceptibility testing), membranes, PETRIFILM™ plates, CompactDry™ plates and a range of other applications including: spiral plates, OPKA (opsonophagocytic killing assay), SBA (serum bactericidal assay), Multi-sector, Multi-well, SRD (single radial immunodiffusion) and Ames.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

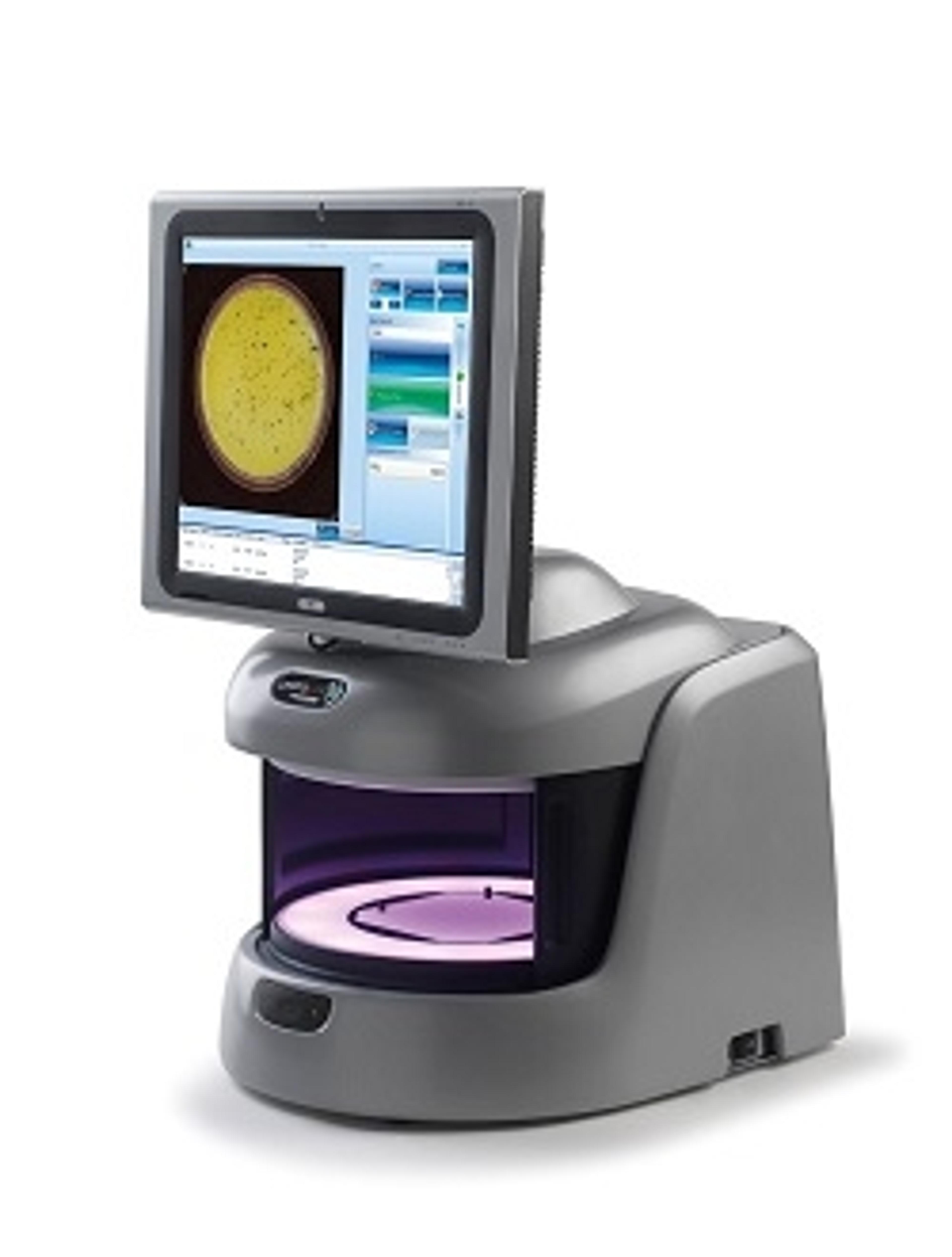

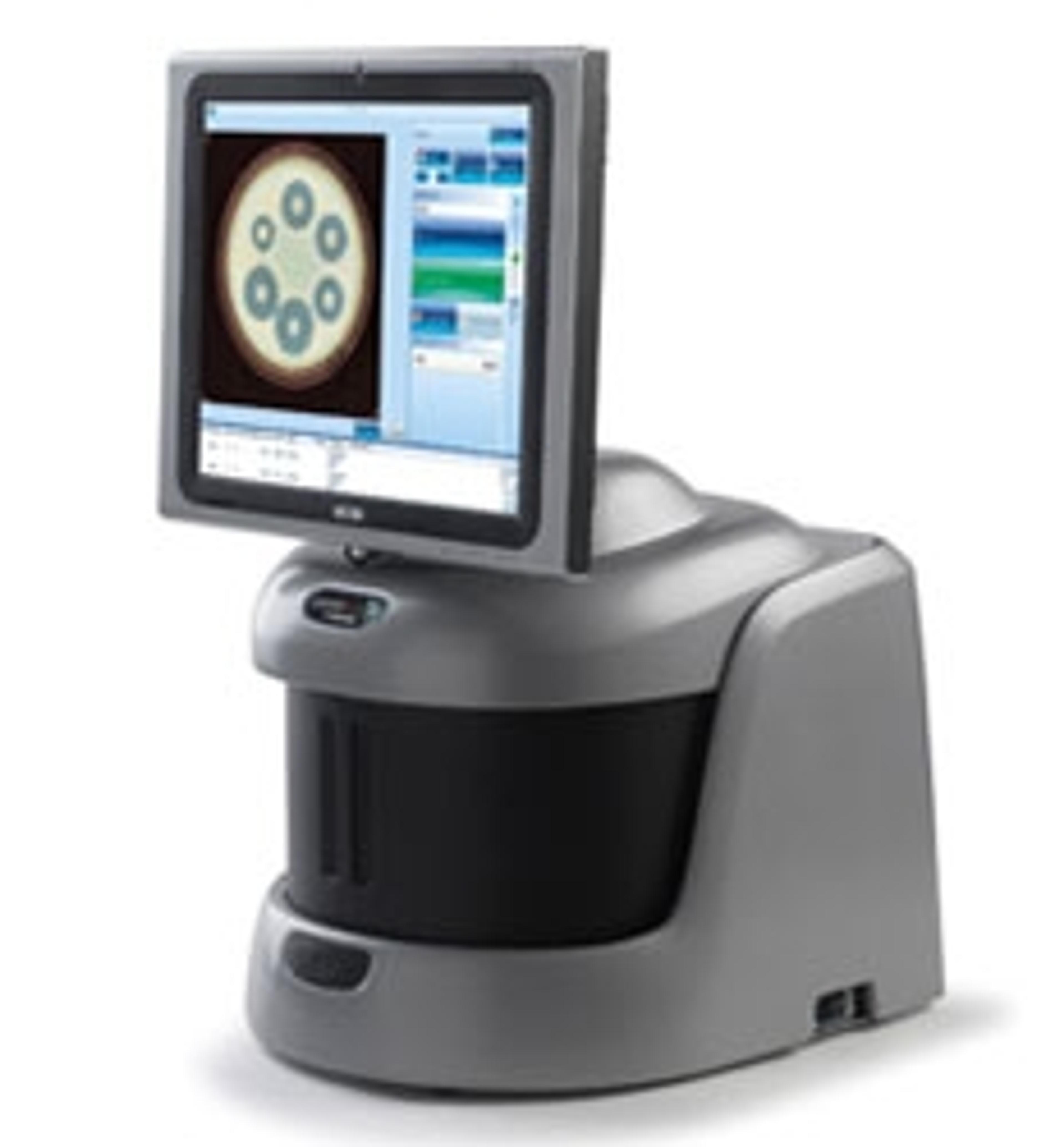

ProtoCOL 3/ProtoCOL 3 HD is the next generation instrument for colony counting, zone measurements (inhibition and antibiotic susceptibility testing), membranes, PETRIFILM™ plates, CompactDry™ plates and a range of other applications including: spiral plates, OPKA (opsonophagocytic killing assay), SBA (serum bactericidal assay), Multi-sector, Multi-well, SRD (single radial immunodiffusion) and Ames. The new design enables plates of up to 150mm diameter to be automatically read at the press of a button. Designed for use across a wide range of applications, ProtoCOL 3 will count colonies as small as 43 microns (0.043mm) and measure zones accurately to 0.5mm with a theoretical detection limit of 0.1mm.
ProtoCOL 3 has a unique 3 channel LED lighting system configured for exceptional illumination of all sample types. High definition, colour images taken with a 1.4 mega pixel scientific grade CCD camera ensure that even the smallest colony can be seen and counted, while zone measurements are fast, accurate and reproducible. ProtoCOL 3 HD, the newest addition to the range, has an ultra-HD 5 megapixel camera which captures high definition images and measures zones with >99.9% accuracy, making the ProtoCOL 3 HD a must-have for vaccine potency testing and other laboratories wanting to optimize zone reading accuracy.

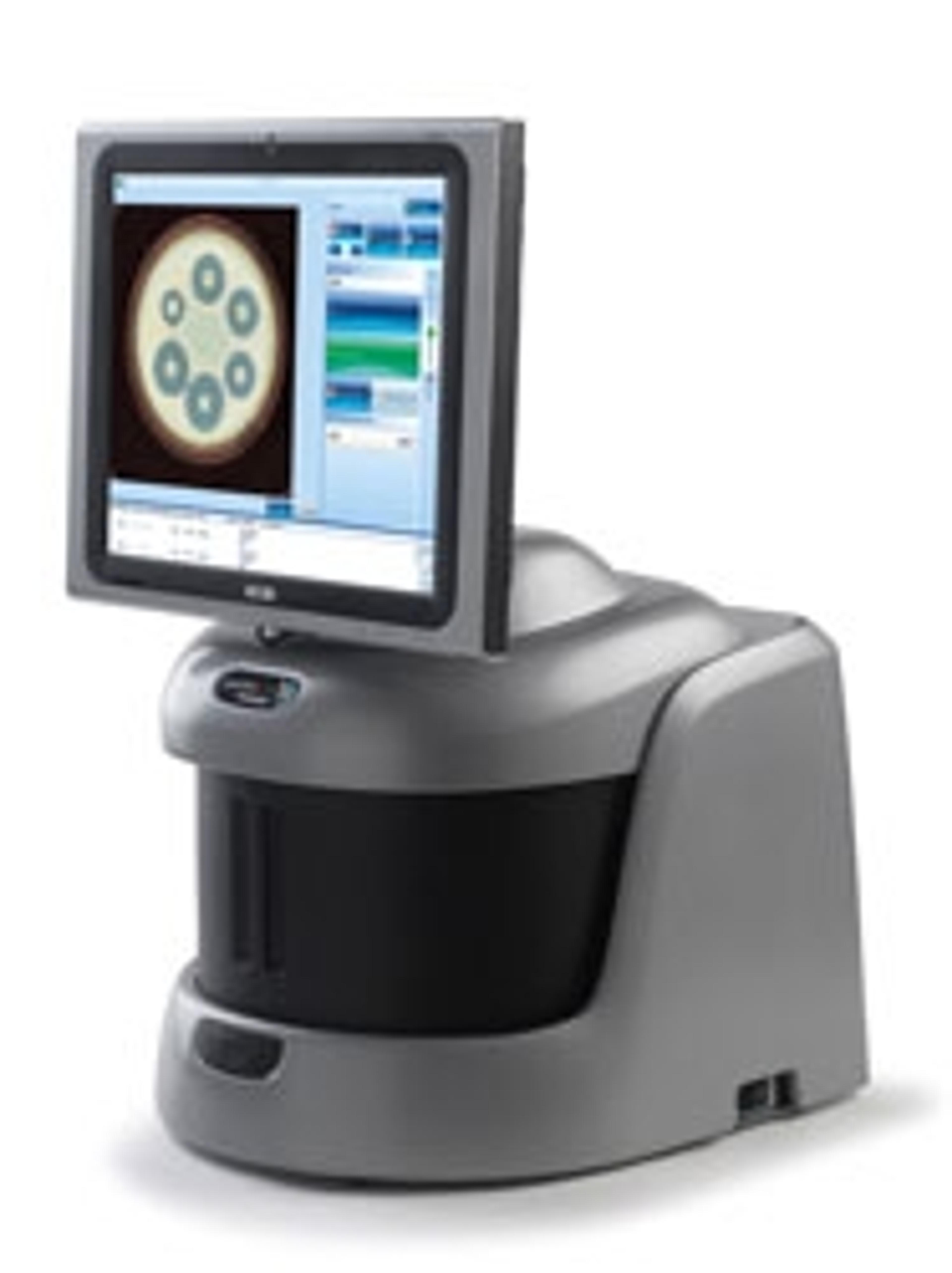

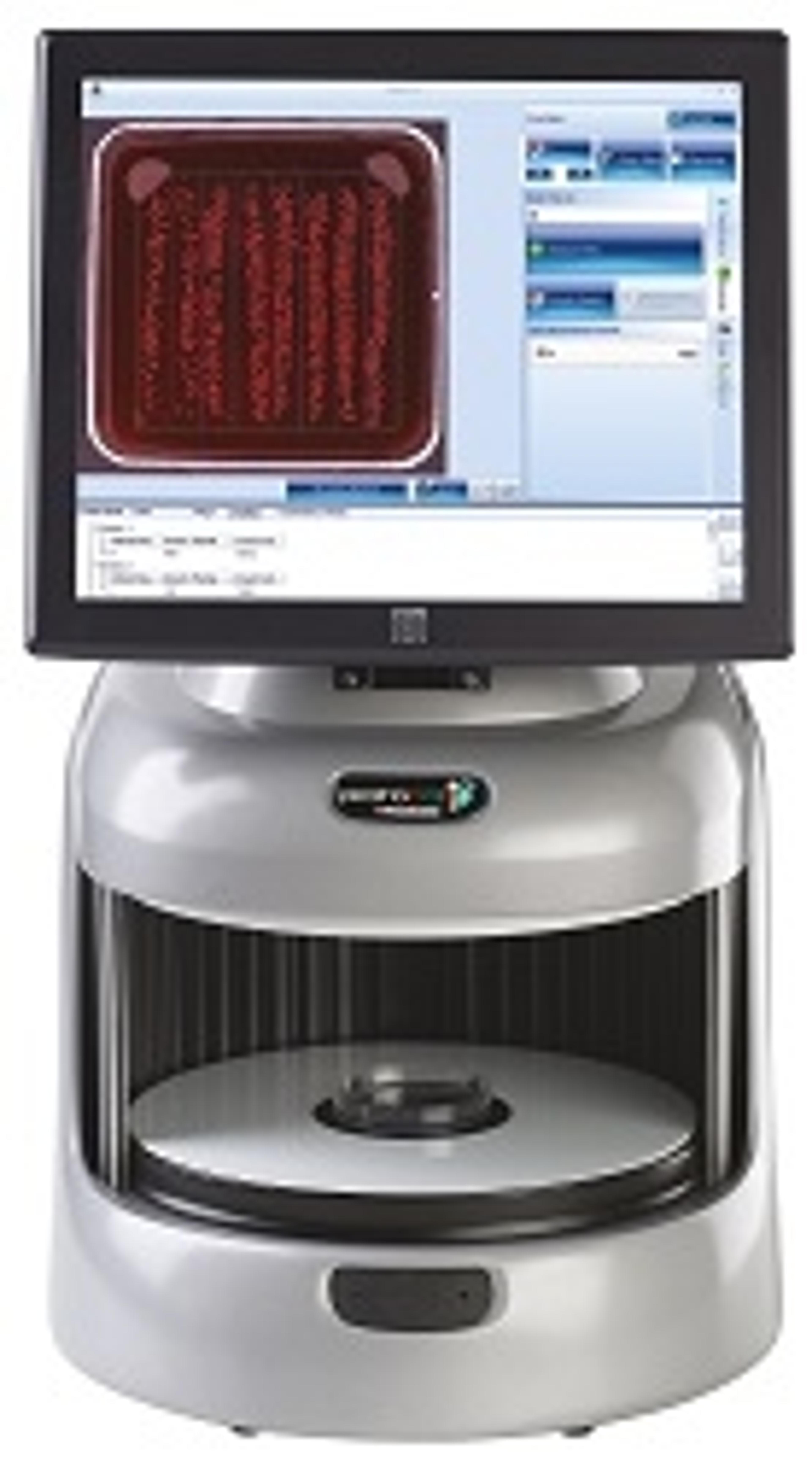

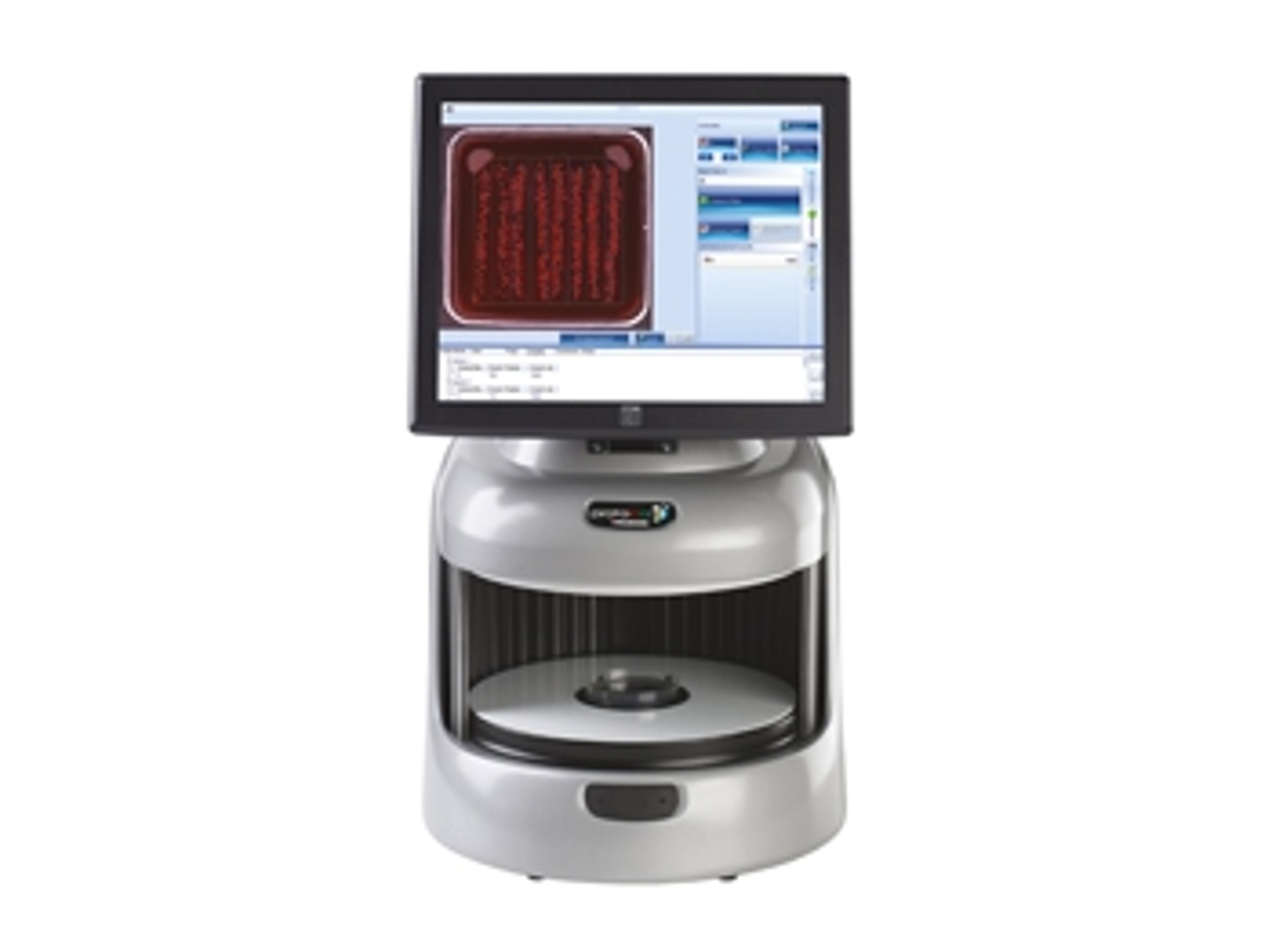

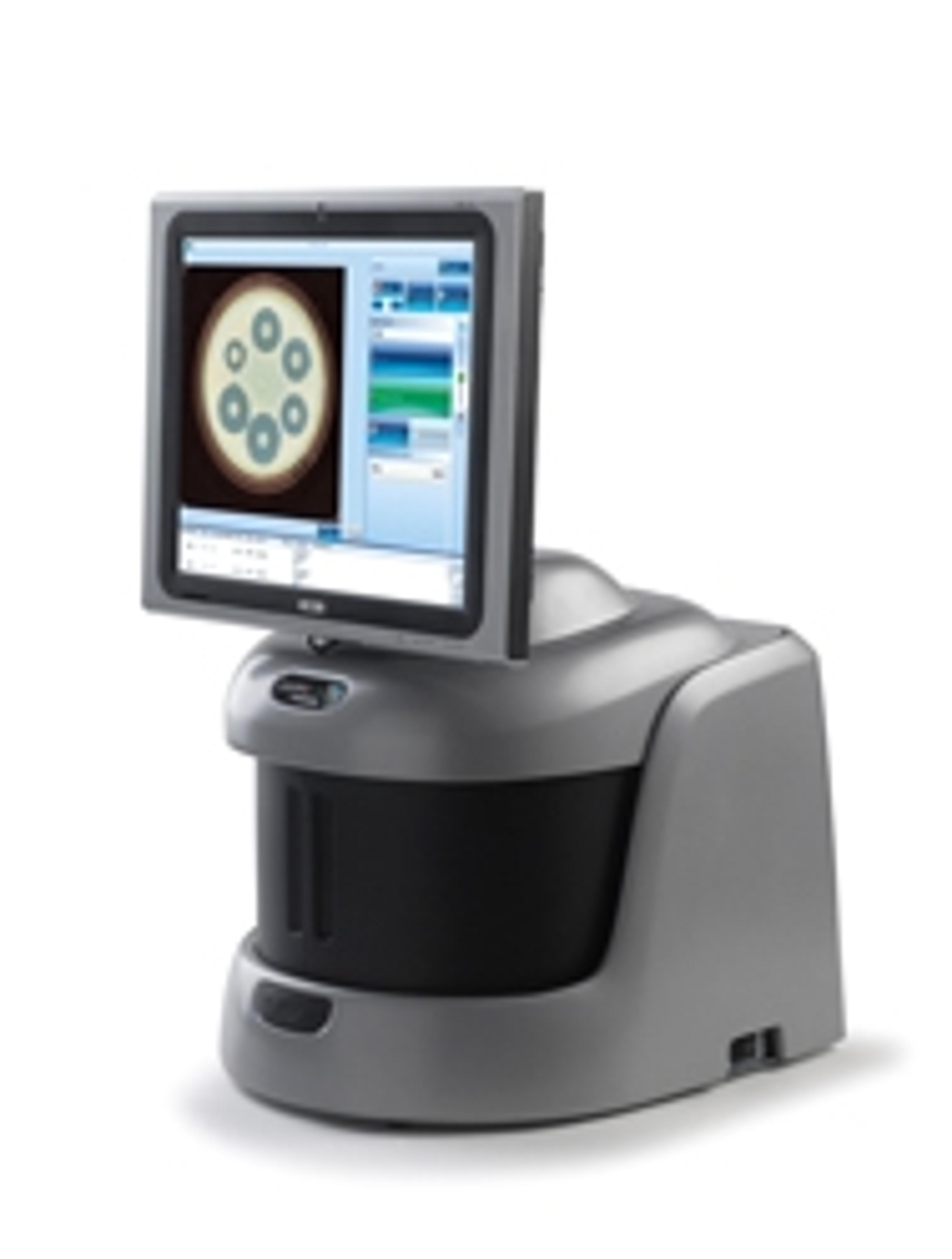

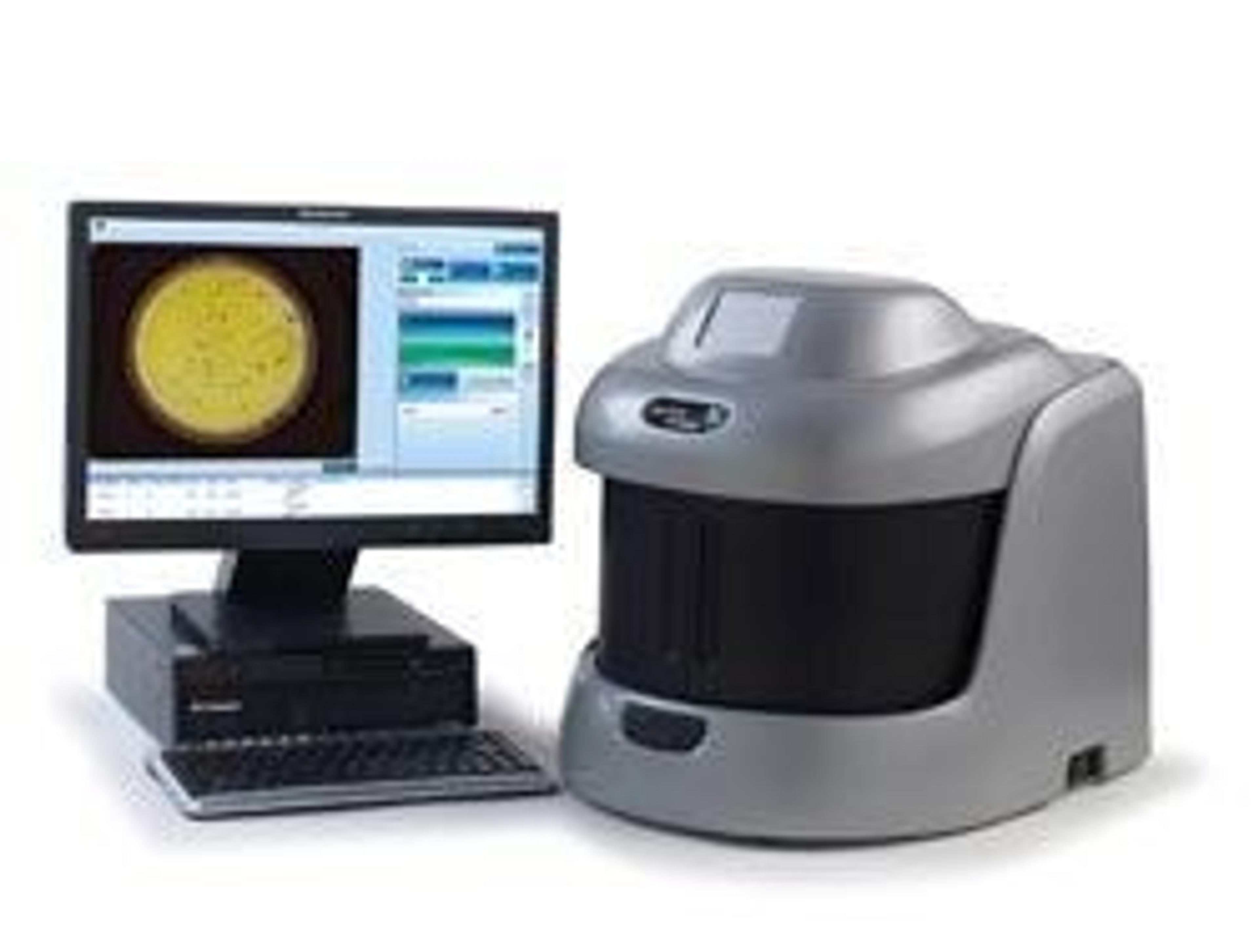

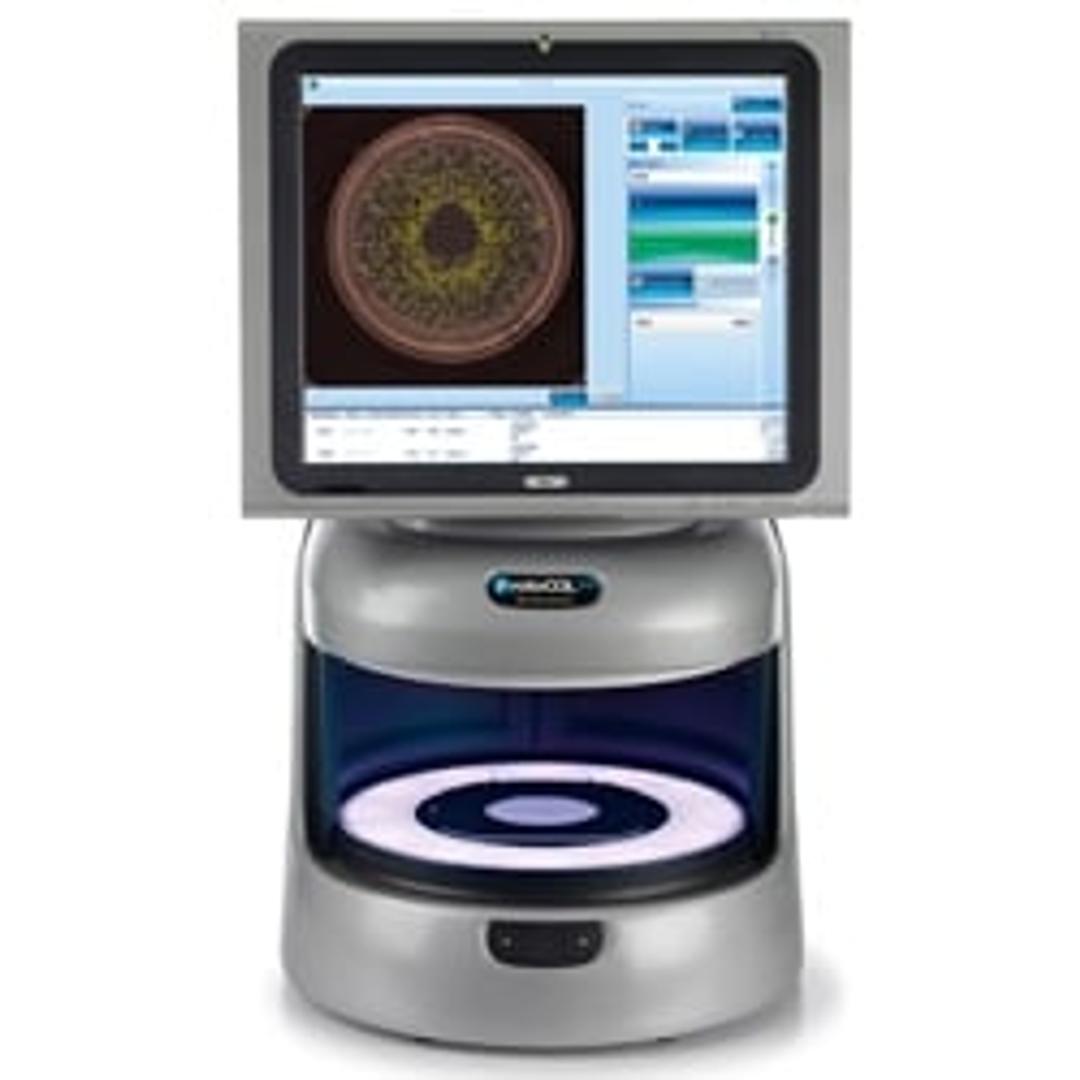

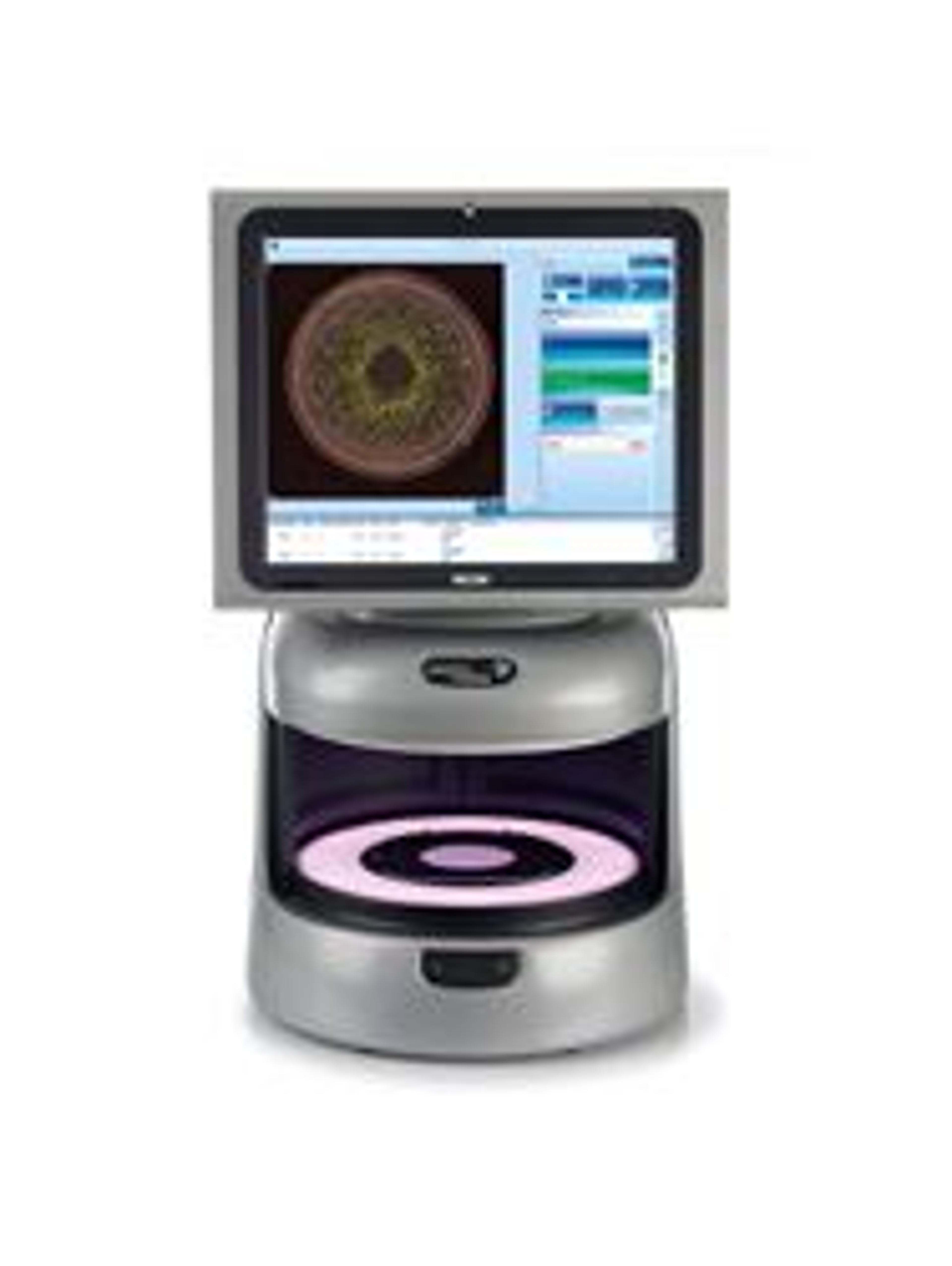

The ProtoCOL 3 system is available with a mounted touchscreen processor which enables ease of control while the easy-to-use software produces highly accurate results. Alternatively, the ProtoCOL 3 can now be used with a new or existing stand-alone desktop or laptop computer via USB connection – no additional PCI cards are required.

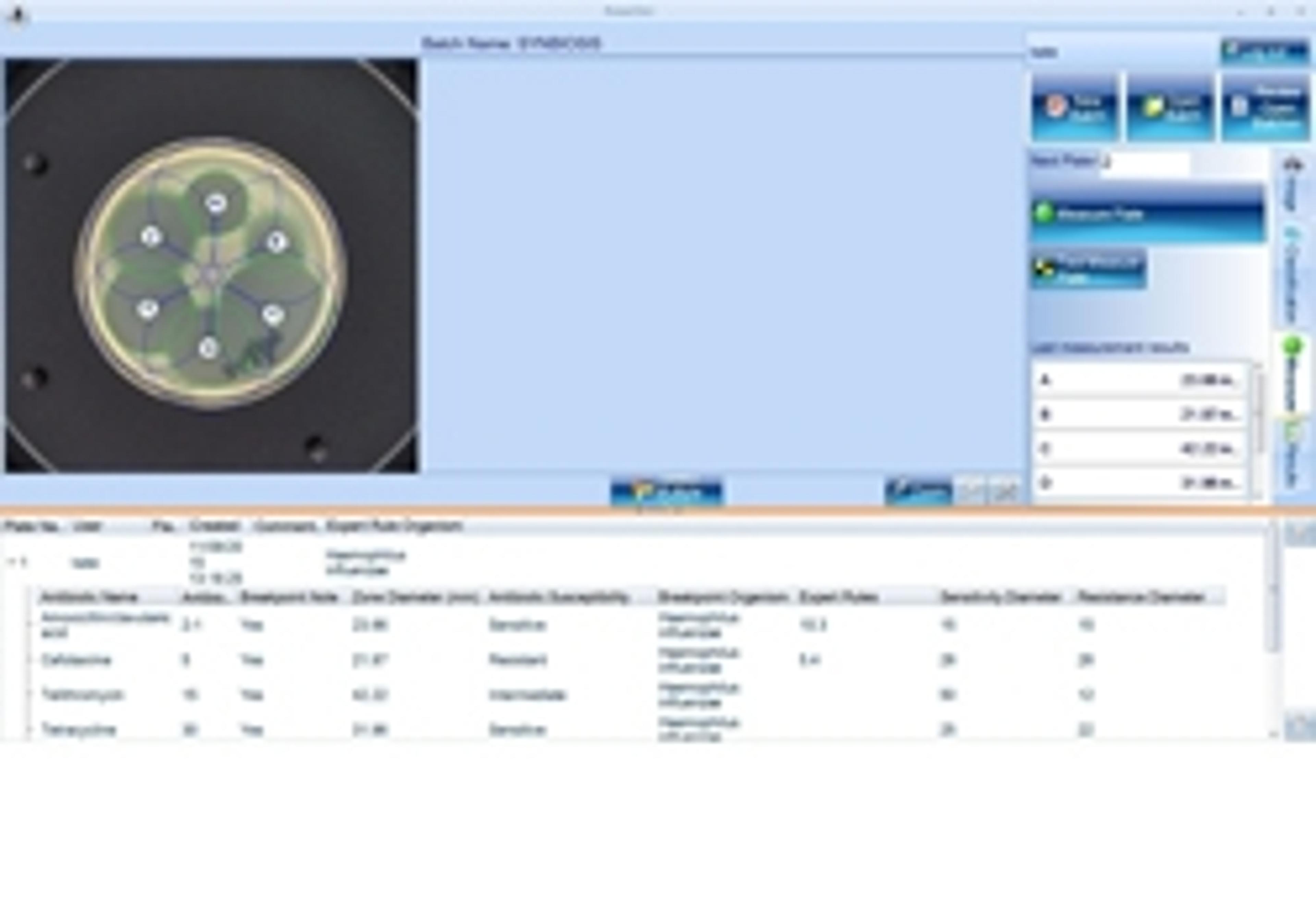

The ProtoCOL 3 comes inclusive with both colony counting and inhibition zone measuring ability. To extend its range of applications, inexpensive additional modules can be added to the software for Spiral, OPKA, SBA, Multi-sector, Multi-well, Ames and antibiotic susceptibility testing (eAST). Results can be automatically transferred to Excel or a LIMS system. The system can also be used with 1D barcodes. All data generated is GLP/GMP/21 CFR Part 11 compliant with a full audit trail and can be used to produce professional reports. Each system comes complete with 2 validation plates. Additional application-specific validation plates are available on request.
PETRIFILMTM is a trademark of 3M Company. 3M Company is not affiliated with Synbiosis and does not endorse or certify Synbiosis’s products.
