ValveLink®16 Pinch Valve Perfusion System
Perfusion System for real-time or pre-programmed liquid switching in perfusion, physiology, biophysics, electrochemistry, or general liquid-handling research applicationsIncrease reproducibility with 20 millisecond accuracyValveGuard™ technology detects bad valvesPrevent damage to your ValveLink and easily observe problem valves.Run experiments automatically - even unattendedMicroprocessor-based for accuracy and flexibilityBec…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Perfusion System for real-time or pre-programmed liquid switching in perfusion, physiology, biophysics, electrochemistry, or general liquid-handling research applications
Increase reproducibility with 20 millisecond accuracy
ValveGuard™ technology detects bad valves
Prevent damage to your ValveLink and easily observe problem valves.
Run experiments automatically - even unattended
Microprocessor-based for accuracy and flexibility
Because they lack a microprocessor, competing valve controllers do not offer a USB port, or simultaneous manual and computer valve control.
Manual, TTL (digital input), analog and USB inputs to control valves.
Free USB software for computer valve control.
Features:
*1 millisecond (0.001 sec) switching accuracy
*16 digital inputs and pushbuttons
*16 bi-colored LED indicators
*USB and analog input
*Event marker analog output
*Spill sensor
*Many manual perfusion features built-in
*CE Marked for sale to Europe
Valve Driving:
*Control 16x 12V DC solenoid valves
*Up to 12 Watts (1 Amp) per valve or 24 Watts (2A) total
*Valves are opened or closed rapidly using full power, then held-in
at 1/2 power to prevent thermal transfer to your solutions
*Low noise circuitry for electrophysiology

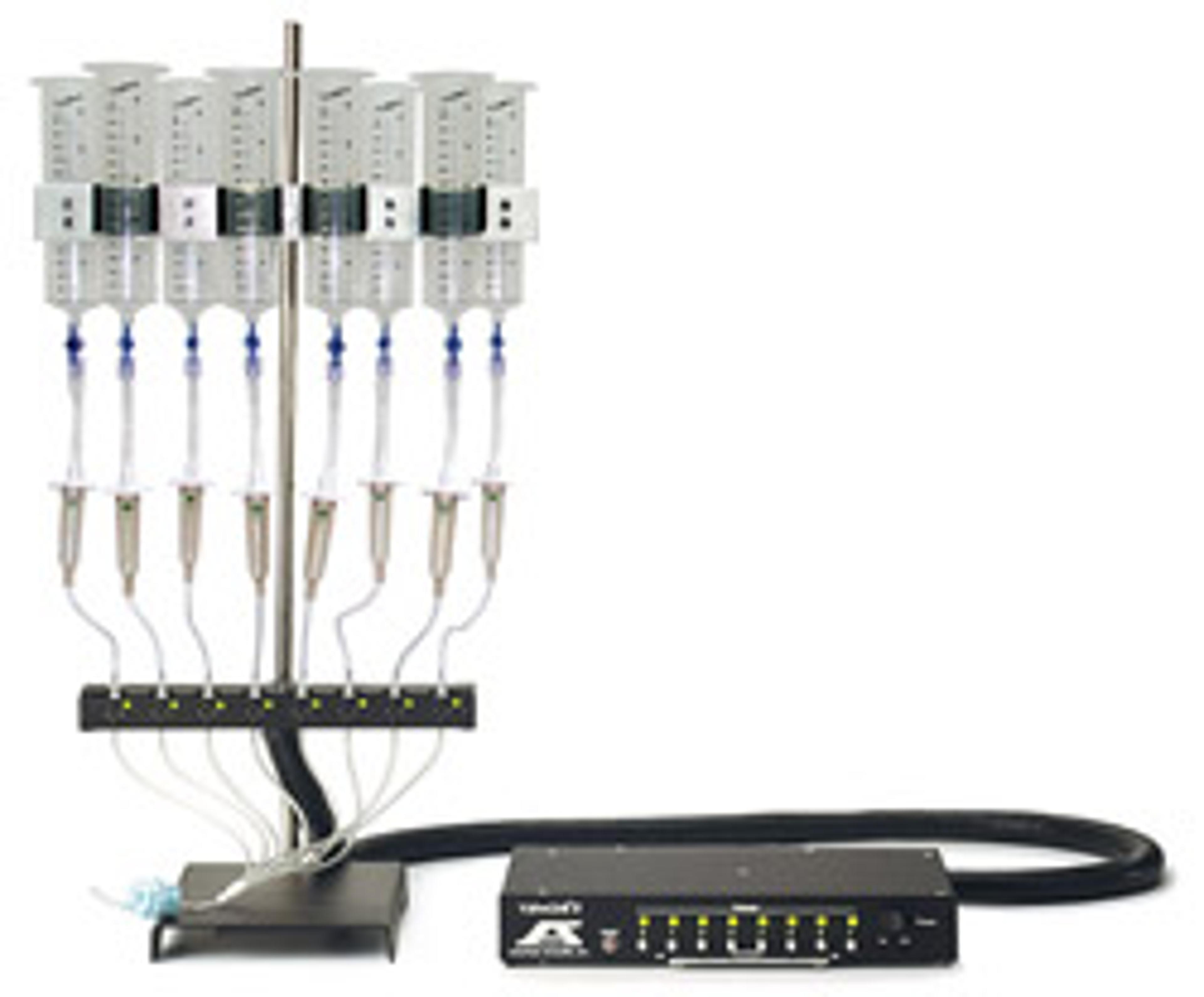

System Includes:
* Two ValveLink8.2® controllers
* 16x ringstand-mounted 12V DC, two-way solenoid pinch valves
Each valve includes an indicator LED & 5' long RCA cables
* 16-into-1 Teflon™ micro manifold -for bath and Oocyte perfusion
* 16x 60ml syringe reservoirs
5, 15, 35, 60 and 140ml syringes available.
* Tubing for plumbing the system
* Power supply and manual
* One year limited warranty covering both parts and labor
