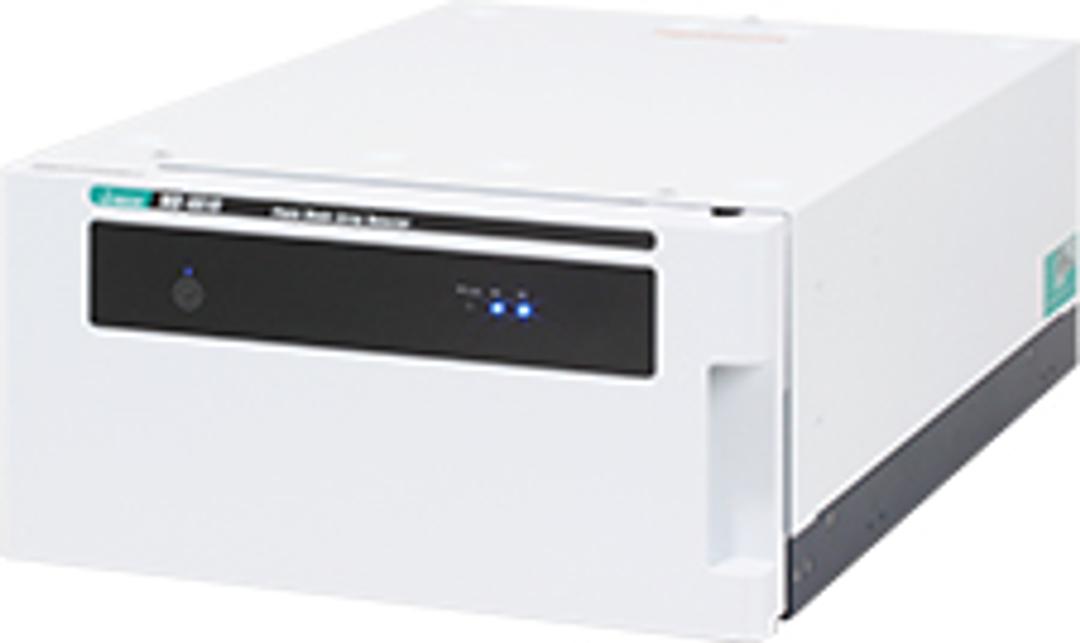

LC-4000 Series PDA Detectors

JASCO (USA)MD-401Available: Worldwide

The LC-4000 Series includes three PDA detectors.The MD - 4 017 is a useful replacement for a single wavelength detector, the MD-4015 is the workhor se for UV- visible detection in the range 200 to 600nm and the MD-4010 is designed for high sensitivity and high spectral and time resolution. The MD-4010 PDA detector offers the highest detection sensitivity, equivalent to a single wavelength detec tor. Making use of a 1024 eleme…

JASCO (USA)

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Be the first to leave a review

The LC-4000 Series includes three PDA detectors.

The MD - 4 017 is a useful replacement for a single wavelength detector, the MD-4015 is the workhor se for UV- visible detection in the range 200 to 600nm and the MD-4010 is designed for high sensitivity and high spectral and time resolution.

The MD-4010 PDA detector offers the highest detection sensitivity, equivalent to a single wavelength detec tor. Making use of a 1024 element photometric diode array, the measurement wavelength range is from 190nm to 90 0nm with a MD-4010 PDA resolution of 1nm and fast spectrum acquisition rate of up to 100 spectra/ sec. When used with the new temperature controlled SP t ype semi-micro flow cell the MD-4010 is well suited to the narrower peaks typically found with UHPLC or RHPLC separations. The MD-4010 is fitted with an internal mercury lamp for automatic wavelength calibration.

The MD-4015 PDA detector is the routine detector for conventional HPLC, RHPLC and UHPLC. The sensitivity is almost equivalent to that of the MD-4010 but only covers the wavelength range from 200nm to 600nm using a 512 element PDA for 1nm resolution and with high speed 100Hz spectrum acquisition.
