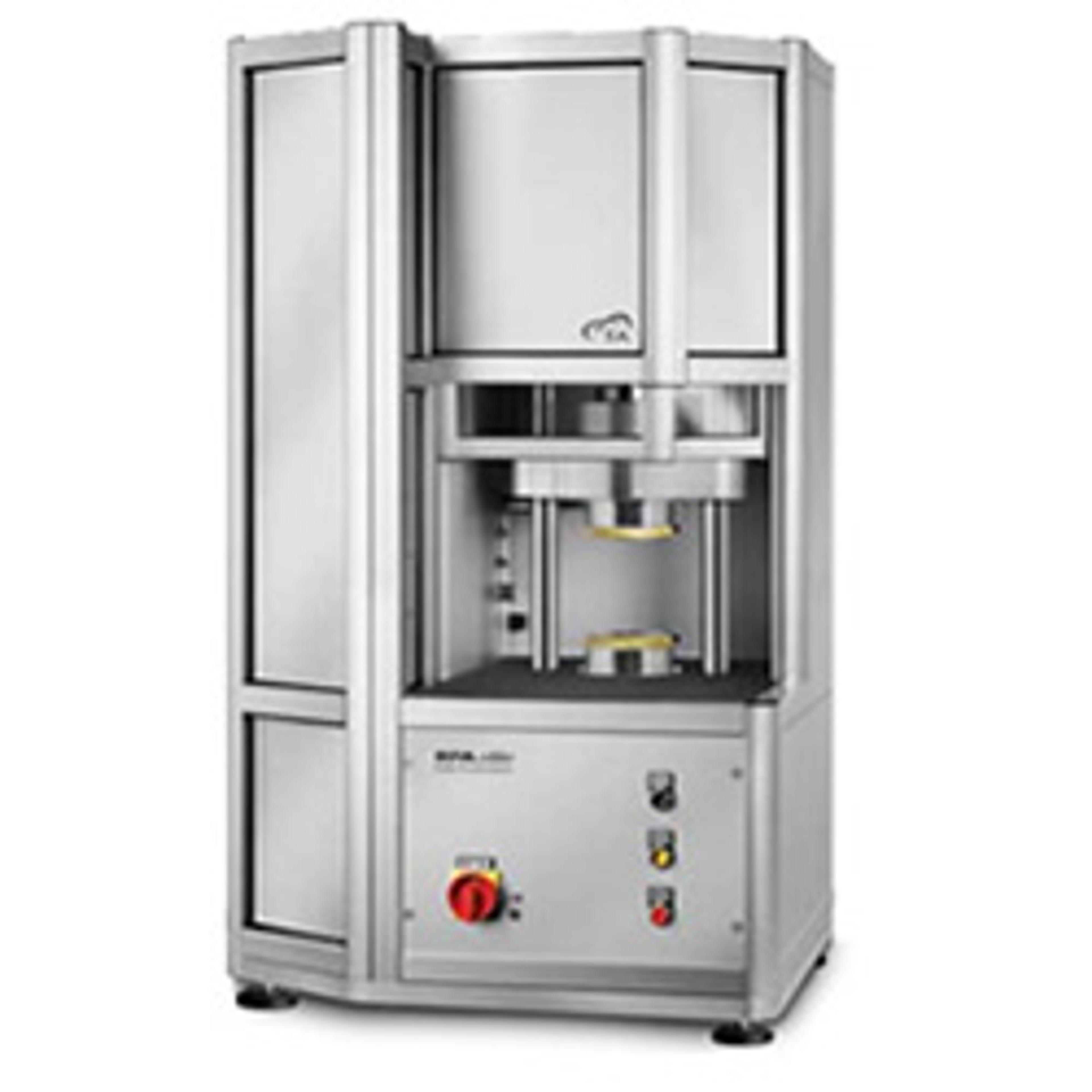

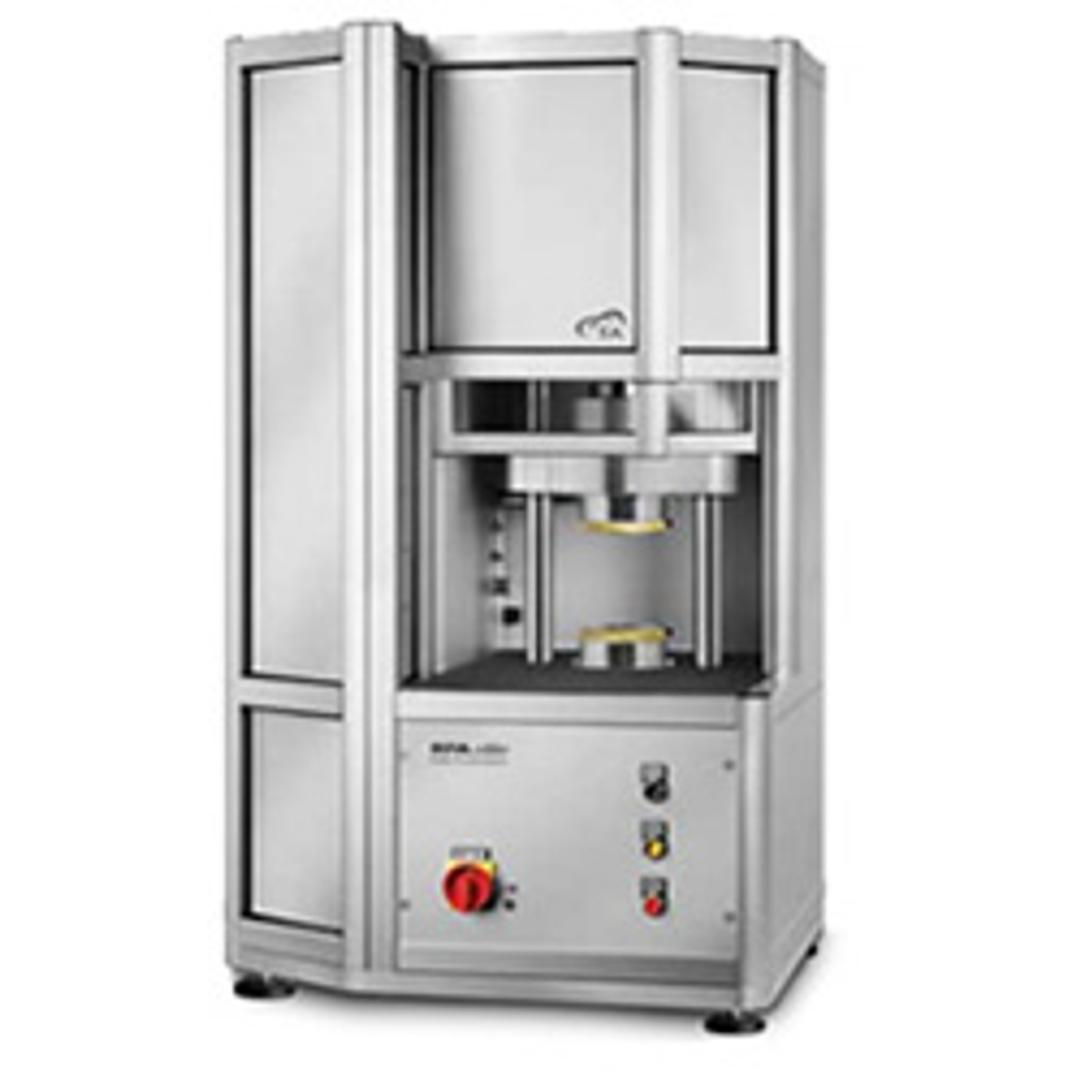

Rubber Process Analyzer RPA Elite

The TA Instruments RPA elite rubber process analyzer (RPA) is the most advanced rotorless rotational shear rheometer dedicated to the complete characterization of polymers, rubber and rubber compounds at all stages of manufacture. The RPA elite provides invaluable viscoelastic data on materials that are uncured, through the curing process, and in situ cured materials. The ultra-rigid test frame, high-resolution variable direct drive motor, ultra-stiff wide-range torque transducer, and precision temperature control provide the most precise and accurate torque, viscosity and viscoelastic properties of elastomers over the widest ranges of testing conditions. The fully flexible architecture of the RPA elite enables advanced testing capabilities beyond any other rubber rheometer including: complete post cure viscoelastic characterization, fully programmable sealing pressure, large amplitude oscillatory shear (LAOS) and arbitrary waveform deformations.

Features

• The most advanced design for testing flexibility and unmatched data precision and accuracy
• High resolution variable direct drive motor for absolute strain control
• Proprietary high stiffness, wide torque range transducer with high sensitivity for noise free data
• Extremely rigid test frame for accurate compliance-free data
• Fully programmable testing parameters and methods including: strain, frequency, temperature, time, and sealing pressure
• Widest range and combination of tests and testing conditions available
• Pneumatic locking cylinders with adjustable platen closing force and pressure sensor
• Available autosampler for unattended operation
• User calibration and user replaceable seals
