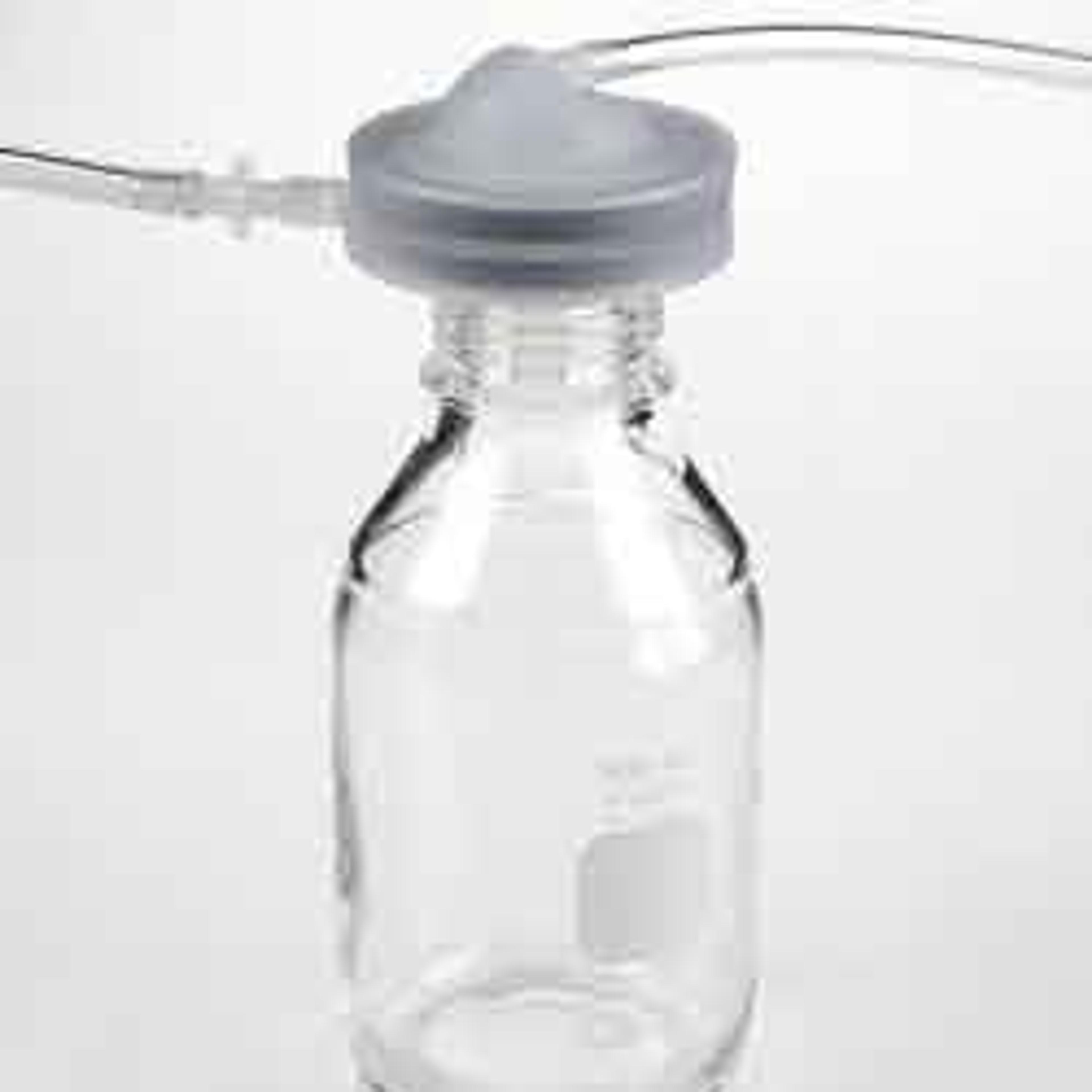

SolVac Filter Holder

Simplifies Clean-Up and Degassing of Mobile Phase Solvents and Other Solutions Versatile design fits most HPLC bottles, flasks, and containers, and eliminates the added steps of washing flasks and transferring mobile phase solvent from flask to reservoir. Draws directly from HPLC solvent bottle. Less likely to spill aggressive solvents than glass funnels or disposable cups. Durable plastic construction is less likely…

Pall Life Sciences - Laboratory, Food, Beverage

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Average Rating 5.0

|2Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Cost/time saving solution for mobile phase filtration



Average Rating 5.0

Application Area:

HPLC mobile phase filtration

We use this device to filter mobile phases used in HPLC. We had in the past, a high cost for replacing the classic filtration glass equipment. We use this and mitigate the risk of chemists being injured and the cost of purchasing new material.

Review Date: 26 Oct 2018 | Pall Life Sciences - Laboratory, Food, Beverage

Amazing! Directly from the solvent bottle



Average Rating 5.0

Application Area:

Remove particles and degas of mobile phase solvents

Definitely practical! Forget about the funnel and vacuum flask. Save time cleaning and avoid breaking laboratory glassware. Any 47 mm membrane disc fits perfect.

Review Date: 25 Aug 2017 | Pall Life Sciences - Laboratory, Food, Beverage

Simplifies Clean-Up and Degassing of Mobile Phase Solvents and Other Solutions

  • Versatile design fits most HPLC bottles, flasks, and containers, and eliminates the added steps of washing flasks and transferring mobile phase solvent from flask to reservoir.
  • Draws directly from HPLC solvent bottle. Less likely to spill aggressive solvents than glass funnels or disposable cups.
  • Durable plastic construction is less likely to break than glass funnels, assemblies, or adapters.
  • Patented magnetic seal is reliable and leak proof. Eliminates the possibility of membrane shifting or tearing which can occur with aluminum clamps or threaded holders.
  • Reusable, chemically resistant polypropylene construction is resistant to common HPLC mobile phase solvents such as methanol, acetonitrile, and tetrahydrofuran.

Applications

  • Remove contaminating particulate from mobile phase or other solutions
  • De-gas mobile phase solvents and solutions
  • Eliminate pour-and-wait filtration
  • Remove microbial growth every 24 hours from aqueous buffer mobile phases

Specifications

Materials of Construction

  • Upper Housing, Housing Base: Polypropylene
  • Feedline Tubing: Ultra chemical-resistant Tygon*, 4.8 mm (3/16 in.) ID
  • Thumb Clamp: Celcon*
  • Feedline Sinker: PTFE
  • Vacuum Port Adapter, Membrane Seal Gasket, and Seal Gasket: Polyethylene

Effective Filtration Area

  • 10.2 cm2

Filter Size

  • Accepts 47 mm filter

Inlet/Outlet Connections

  • Tapered inlet accepts 3.2-6.4 mm (1/8-1/4 in.) ID tubing; outlet seals to bottles with openings 17.8 mm (0.7 in.) ID to 48.3 mm (1.9 in.) OD

Vacuum Port Adapter

  • 4.8-7.9 mm (3/16 - 5/16 in.) tapered hose barb

Maximum Vacuum

  • 63.5 cm Hg (25 in. Hg)

Operating Temperature

  • Ambient; not to exceed 38° C (100° F); not autoclavable
