TLC Scanner 4

CAMAG92907

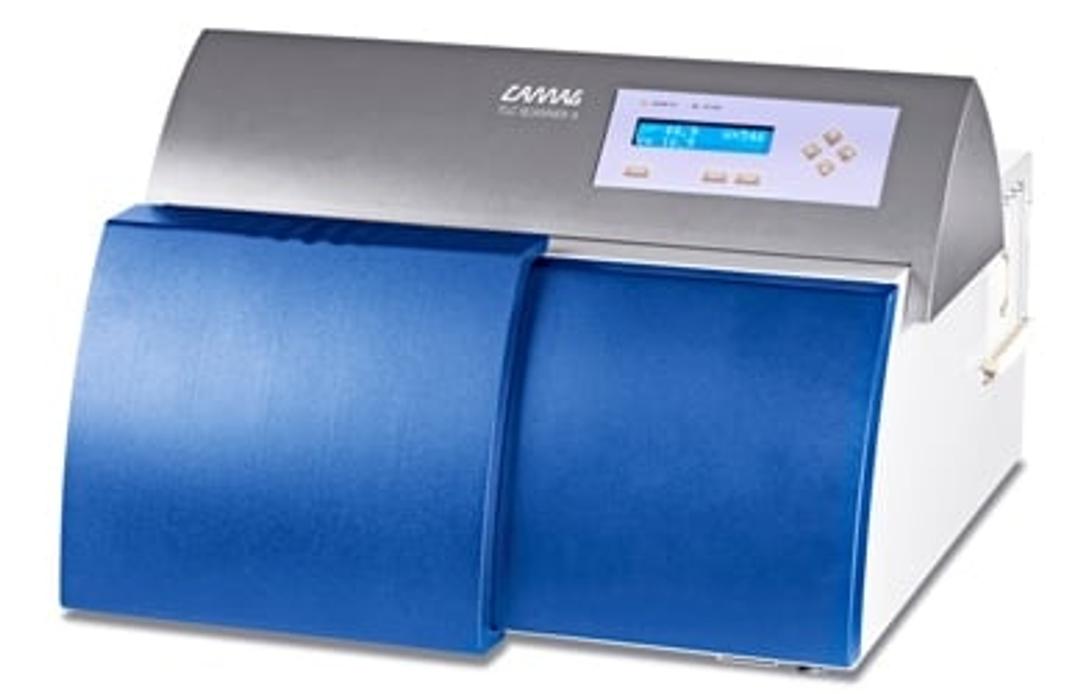

The TLC Scanner 4 is the most advanced workstation for densitometric evaluation of TLC/HPTLC chromatograms and other planar objects.

Request Pricing
CAMAG

Receive your quote directly from the manufacturer.

Average Rating 5.0

|2Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Great results and reproducibility



Average Rating 5.0

Application Area:

HERBAL PRODUCTS QUANTIFICATION

Scan speed, Accuracy and ease of use.

Review Date: 14 Jul 2022 | CAMAG

Makes our measurements very easy.



Average Rating 5.0

Application Area:

Content of aminbase in pharmaceutical products

Reproducible and good results, easy to use very good further development from the previous model.

Review Date: 9 Nov 2020 | CAMAG

The TLC Scanner 4 is a scanning densitometer. It measures the reflection of separated compounds in absorption and/or fluorescence mode. Controlled by visionCATS software the TLC Scanner 4 enables quantitative evaluation of the generated densitometric data. The spectral range of light from 190 to 900 nm is available for selecting single or multiple wavelengths for scanning densitometry. Detection can thus be fine-tuned to match the spectral properties of the analyte to its optimized specificity and sensitivity of the detection.

Key features:

  • Measurement of reflection, either in absorbance and/or fluorescence
  • Spectral range from 190 to 900 nm
  • Data step resolution 25–200 μm
  • Spectrum recording up to 100 nm/s
  • Any plate format up to 20 x 20 cm
  • Software-controlled by visionCATS
