TLC Visualizer 3
High-end imaging and documentation system for white light and UV fluorescence detection
Raw materials
This is very easy and efficient when running ID by HPTLC for raw materials. It definitely makes lab life easier.
Review Date: 21 Nov 2022 | CAMAG
The visual presentation of the entire chromatogram showing references and samples side by side is a unique feature of High-Performance Thin-Layer Chromatography (HPTLC), allowing the convenient evaluation of multiple samples in parallel.

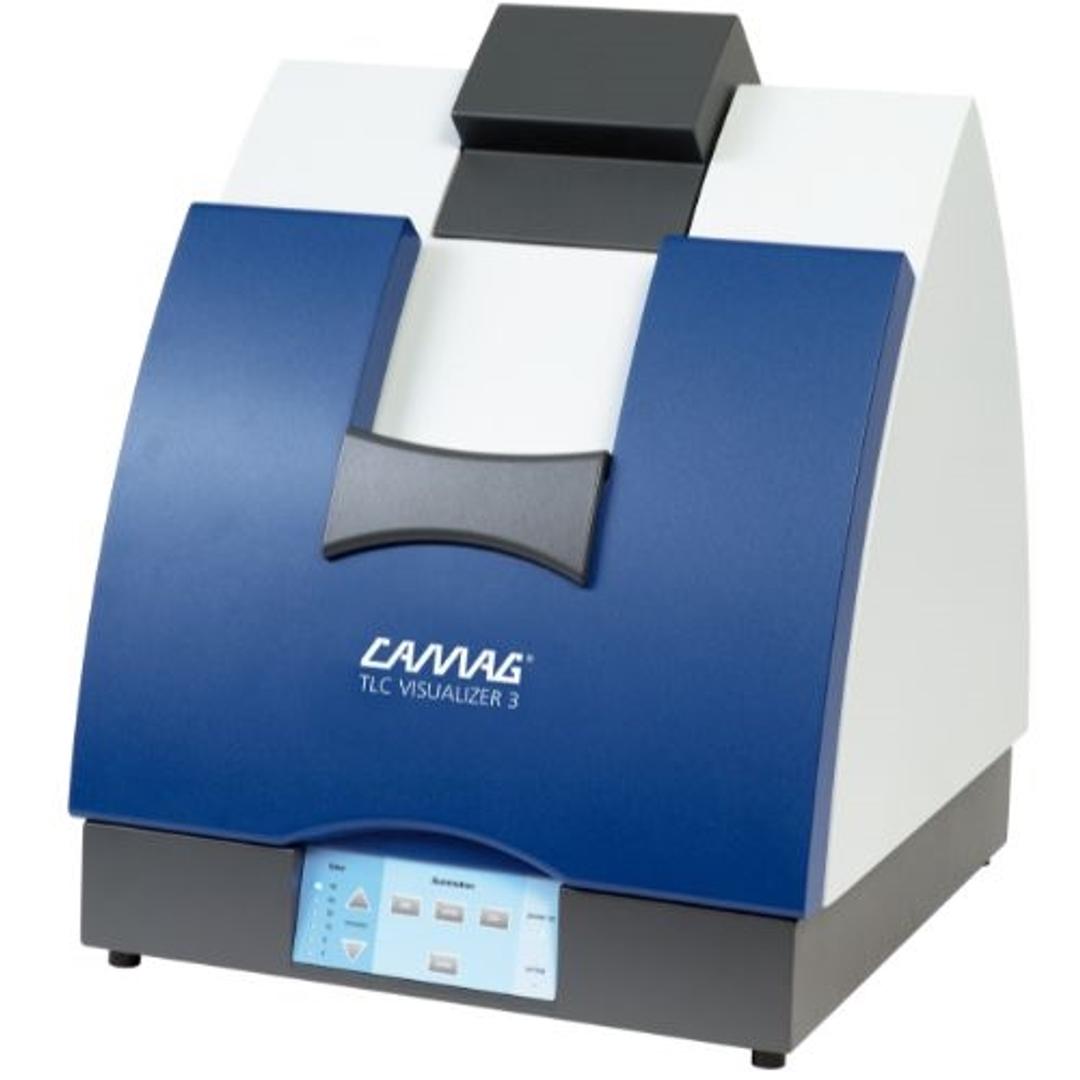

The TLC Visualizer 3 is a high-end imaging and documentation system with superior performance in white light, long-wave UV (366 nm) and short-wave UV (254 nm) ensuring illumination with maximum homogeneity. Designed for the acquisition of premium-quality images, the TLC Visualizer 3 features a high-performance industrial camera of the newest generation equipped with a CMOS image sensor.
Powered by visionCATS HPTLC software, the TLC Visualizer 3 allows the detection of even the faintest zones and ensures reproducibility at a maximum level, while maintaining cGMP/GLP and 21 CFR Part 11 compliance.
Key Features
- Maximum illumination homogeneity in white light, UV 366 nm and UV 254 nm
- High-performance industrial camera with CMOS image sensor
- Powered by visionCATS HPTLC analysis software
- Various image enhancement tools for the detection of even the faintest zones
- Side-by-side display of tracks from different plates
- Image-based evaluation
- Full compliance with cGMP/cGLP and 21 CFR Part 11
