HPTLC PRO Module DEVELOPMENT
Chamber designed to separate analytes using optimized parameters (activation and preconditioning of the HPTLC glass plate (20 x 10 cm) before, conditioning during, and drying after development).

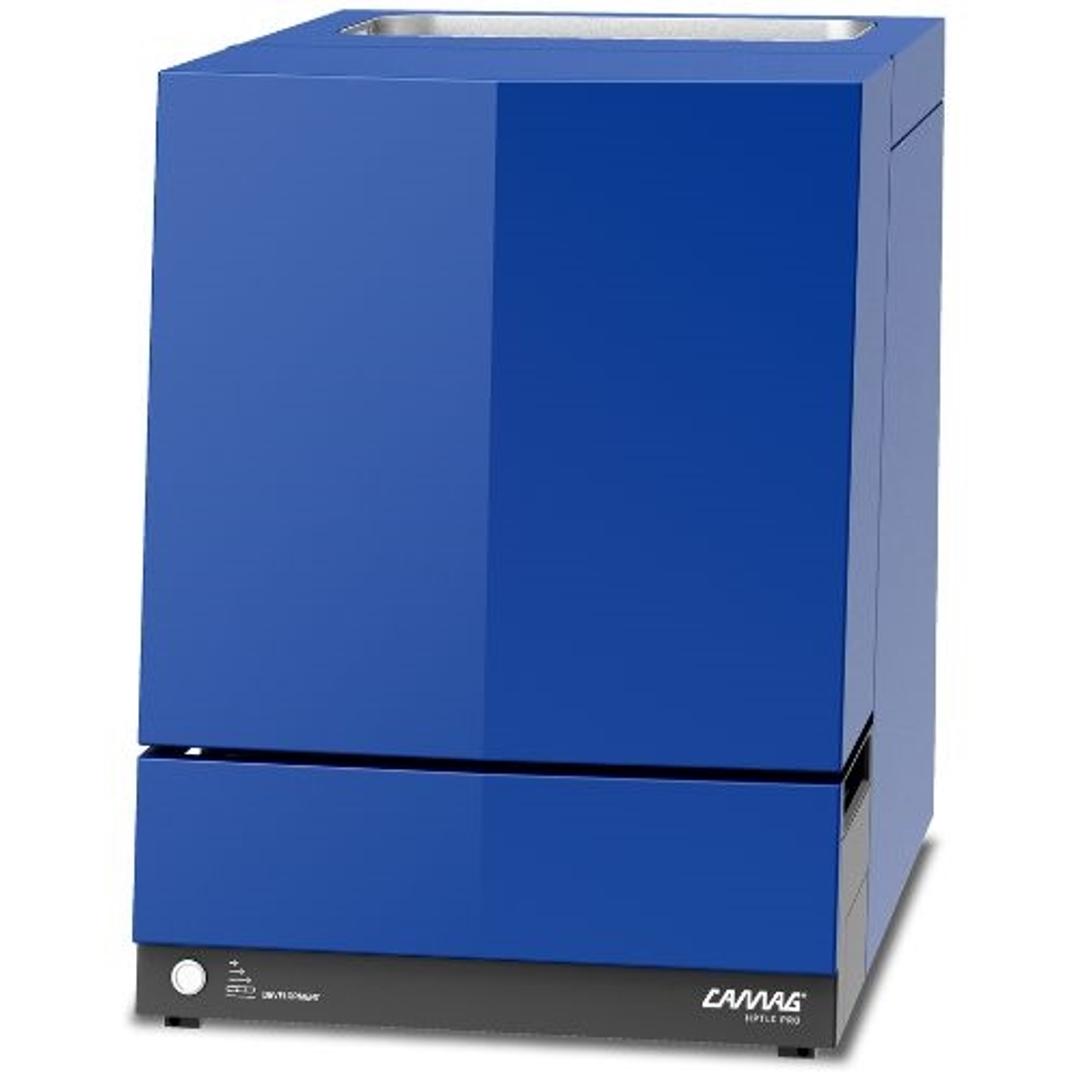

CAMAG® HPTLC PRO Module DEVELOPMENT

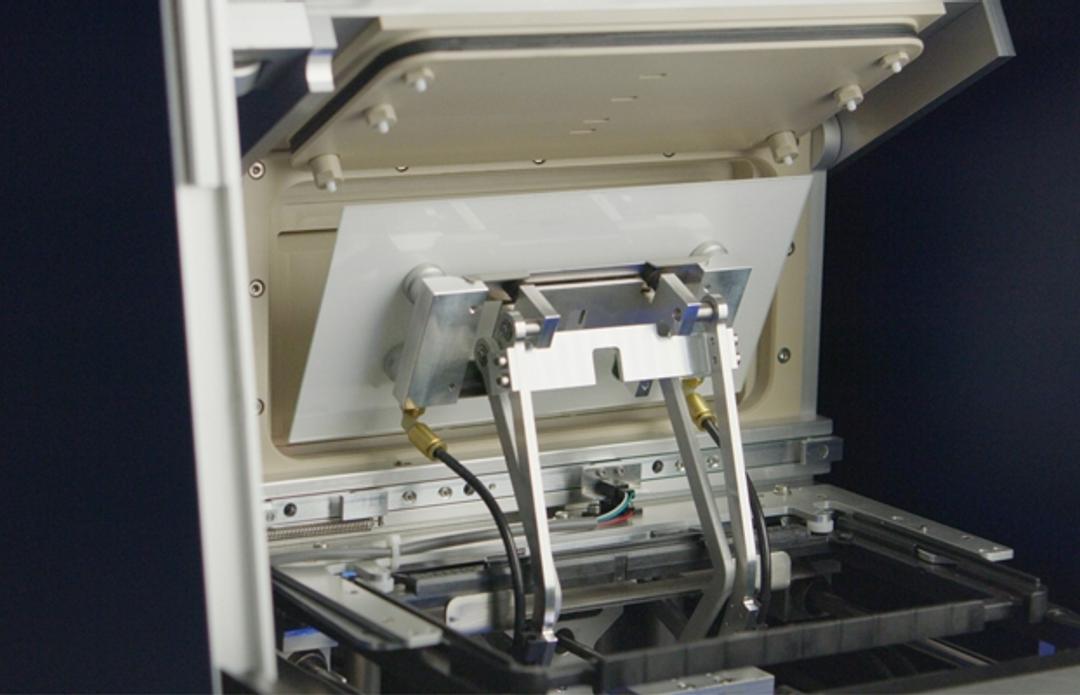

Plate loading into the developing chamber
The built-in conveyor transports a 20x10cm HPTLC glass plate
Receive your quote directly from the manufacturer.
Very useful instrument to get band of different chemical constituents.
Estimation of chemical constituents of crude drug of plants.
The HPTLC instrument is a very useful instrument in the field of Pharmacy. One can get result in the form band on pre-coted silica aluminium plate.
Review Date: 1 Apr 2022 | CAMAG
The HPTLC PRO Module DEVELOPMENT is part of the CAMAG® HPTLC PRO SYSTEM – the first fully automated HPTLC system worldwide.
The sophisticated developing chamber of the CAMAG® HPTLC PRO Module DEVELOPMENT revolutionizes the development step: its geometry allows for the full control of the gas phase prior to and during chromatography, enabling the Module DEVELOPMENT to obtain highly reproducible analytical results, while the duration of pre-conditioning and activation of the stationary phase are significantly reduced.
Controlled by the CAMAG® HPTLC Software visionCATS, the Module DEVELOPMENT allows for the preparation of several analysis files, which can be executed sequentially, enabling the autonomous development of up to five different HPTLC glass plates (20 × 10 cm) with up to three different developing solvents. Users have the choice to operate a module as stand-alone or as part of the HPTLC PRO SYSTEM. If two or more modules are connected to form a system, a conveyor moves the HPTLC plate from one module to the other.
Key Features
- Part of the fully automated HPTLC PRO SYSTEM
- Development of up to 5 HPTLC plates (20 x 10 cm)
- Supports up to 3 different developing solvents
- Chamber geometry streamlined to speed up the development
- Gas phase can be actively circulated during development
- HPTLC glass plates (20 x 10 cm), only
- Optimal cleaning between different developing solvents
- Software-controlled by visionCATS
Key Benefits
- Low chamber volume for better control of the gas phase
- Fast activation and pre-conditioning of the stationary phase (due to active circulation of the gas phase)
- Full control of the gas phase during development
- Sensor-controlled constant volume of the developing solvent in the chamber during development
- Significant time savings due to active gas phase handling
- Optimized cleaning procedure between different developing solvents
- User-independent reproducibility
