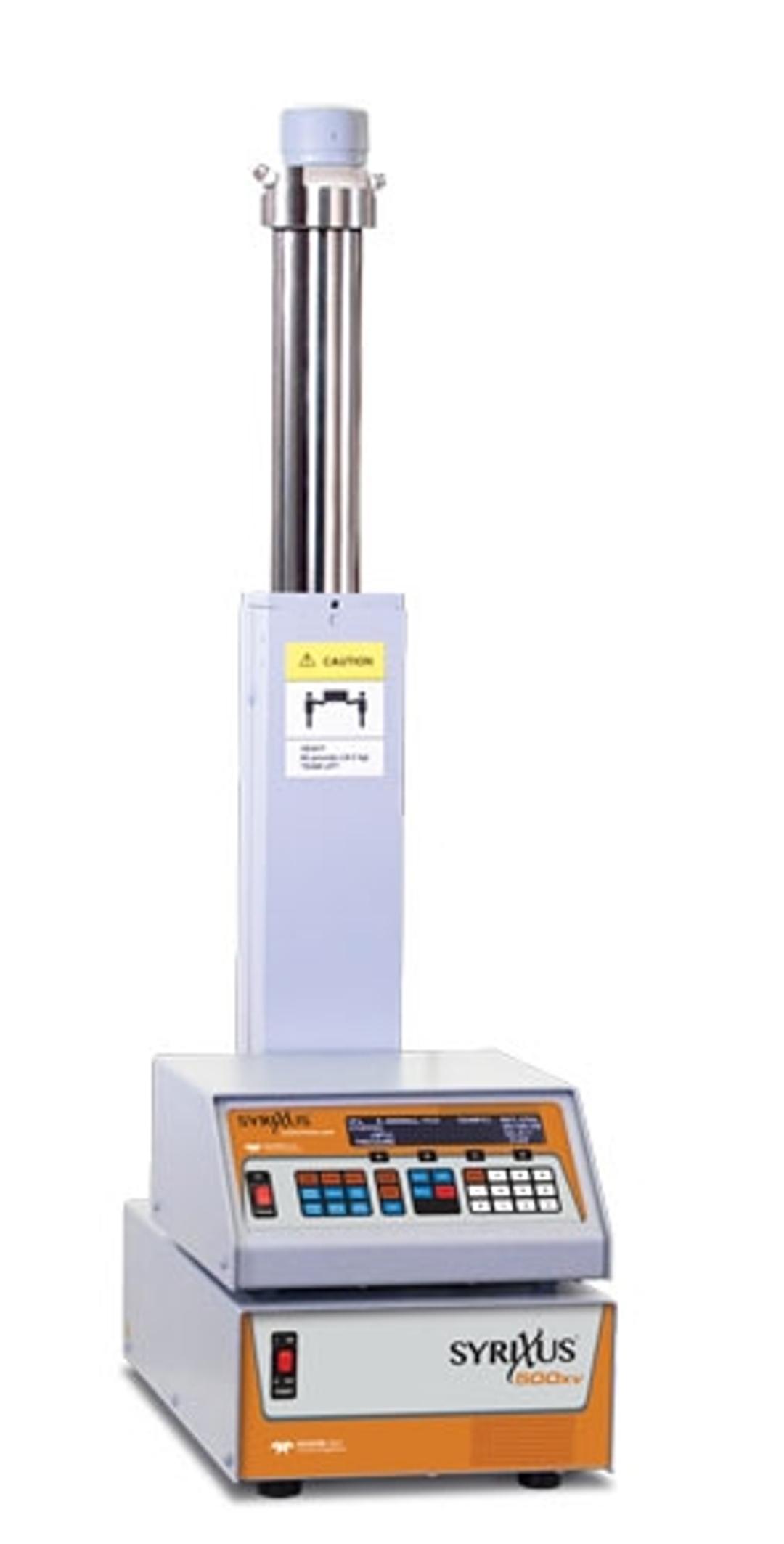

500VX Syringe Pump
The 500xv can pump higher viscosity material by reducing the restriction within the syringe pump, specially designed with 3/8” ports at a 45-degree angle. Ball valves are used for automating refill and continuous flow, which clear easily.??
Receive your quote directly from the manufacturer.
The 500xv is able to pump higher viscosity material by reducing the restriction within the pump, specially designed with 3/8” ports at a 45 degree angle. Ball valves are used for automating refill and continuous flow which clear easily.
The 500xv syringe pump provides precise delivery of high viscosity material up to 204 mL/min. Pulse-less flow is delivered up to 5,000 psi (345 bar) for pumping thick materials. Viscosity can be reduced by heating the pump chamber. A Temperature Control Jacket can be used to raise the temperature above ambient up to 100 ◦C.The High Temperature package allows the ability to heat up to 200 ◦C.
The SyriXus controller has backlighted keypad and 4-line LCD display, as well as built-in and optional interfaces for computer control and other devices. Programming is easy and flexible, with instant access to menu screens even when the pump is running. This allows you to change operating parameters on the fly. Control the pump remotely using driver for LabVIEW™ software, in addition to pump controller.
The 500xv pump module has a single-ratio drive train with auto-lubricating gears for long life and low maintenance. Special fittings are used to prevent leaks and ensure safety at maximum pressure.
Applications
- High viscosity materials
- Slurries
- Column packing
- Bio-fueling from pulp extracts
