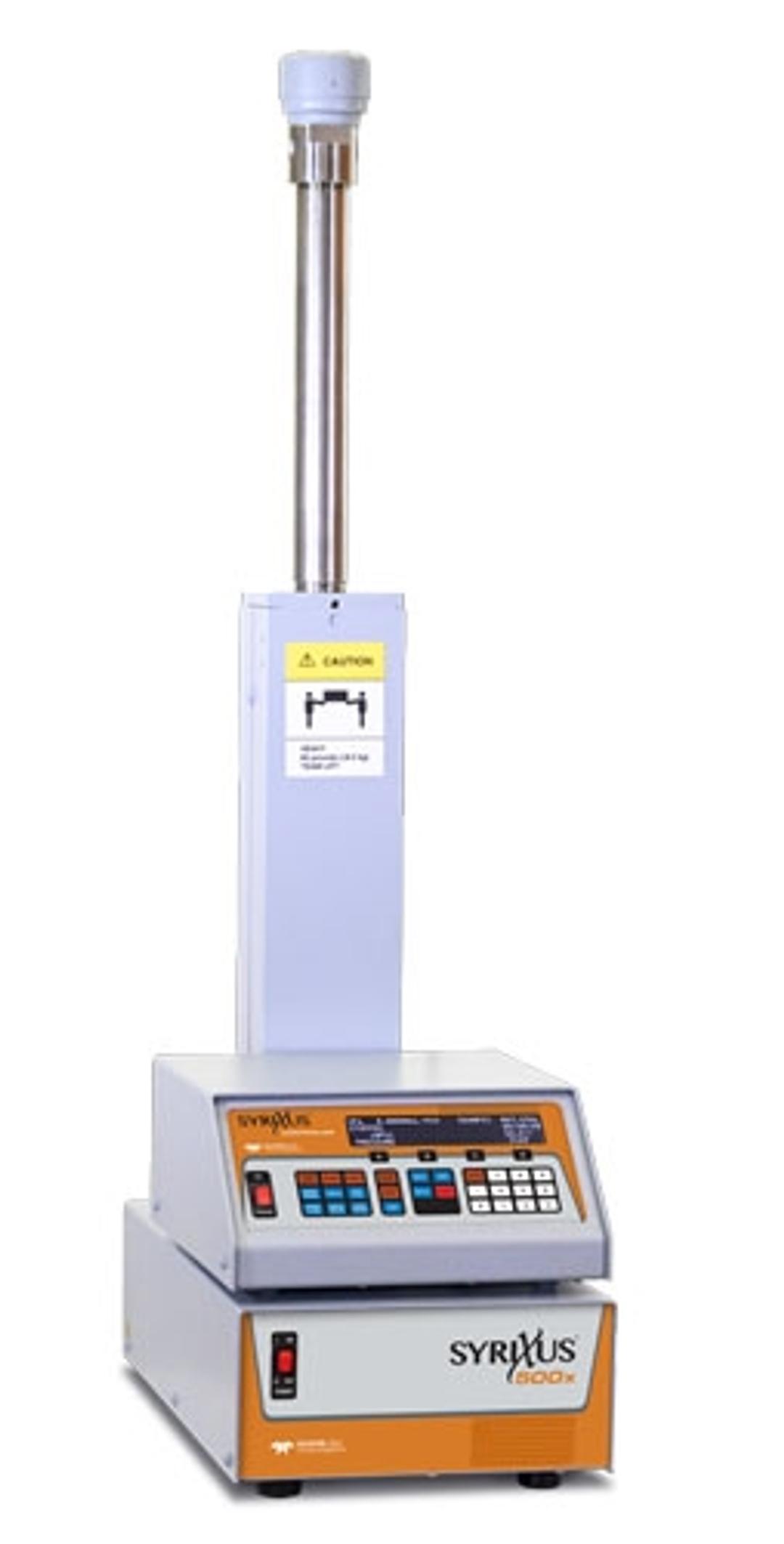

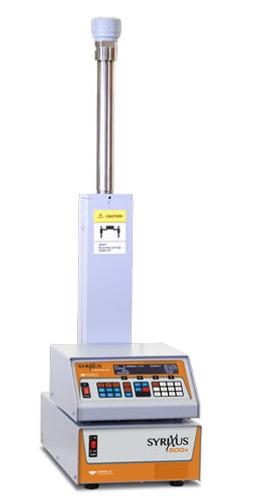

500X Syringe Pump
The 500X is ideal for a wide range of chemical feed applications requiring flow rates up to 200 mL/min at pressures up to 3,750 psi. With its 500 mL cylinder capacity, this pump can deliver a precise 500 mL/min for over 8 hours on a single fill. For non-stop continuous flow, see dual pump systems with a choice of valve packages.
Receive your quote directly from the manufacturer.
The 500X syringe pump provides precise, predictable flow and pressure control at flow rates from sub-microliter to 204 ml/min. Exceptional low-flow stability at up to 3,750 psi makes this the ideal pump for high pressure applications from deep well core analysis to multi-dimensional capillary LC using small-bore packed capillary columns. The X-series controller has a keypad and LCD, as well as built-in and optional interfaces for computer control and other devices. Programming is easy and flexible, with instant access to menu screens even when the pump is running. This allows you to change operating parameters on the fly. An optional extension cable lets you locate the controller up to 50 feet from the pump. The 500X pump module has a single-ratio drive train with auto-lubricating gears for long life and low maintenance. Special fittings are used to prevent leaks and ensure safety at maximum pressure. Wetted materials are compatible with most aqueous and organic liquids, corrosive solutions, heated fluids, liquefied gases, viscous fluids, or slurries and pastes.
500X Syringe Pump Features:
- 500X pump has 1/8" NPT inlet and outlet ports for rapid, low-restriction filling and dispensing and easy connection in process and pilot-plant plumbing.
- Integral button-style pressure transducer in cylinder cap assures excellent stability and repeatability.
- Rugged single-ratio drive train has auto-lubricating gears to assure long life and low maintenance
- . Each Isco X-Series syringe pump is bench tested at the factory.
- All pumps are CE compliant and certified to UL 3101 and EN 61010-1 standards.
- Cylinder wash system protects the seals from deposits. Exclusive "Smart Key" controller.
- All Isco X-series pumps use the same controller that can operate any three pump modules, either independently or together. RS-232 serial interface for computer control or monitoring of operating parameters.
- Redundant safety is designed in.
- All D-Series pumps have mechanical and electrical fail-safes, in addition to the factory default or user-set limits.
- Corrosion resistance.
- Nitronic 50 - the standard material for cylinders, pistons, and caps - is an austenitic stainless steel with outstanding strength and corrosion resistance.
- Standard seals are heavy-duty, graphite-impregnated Teflon, providing very long life under harsh operating conditions.
