Evacuable Pellet Dies
Specac manufactures a wide range of high-quality Evacuable Pellet Dies suitable compacting powdered samples into discs or briquettes. These are particularly well suited for the preparation of solid KBr pellets for FTIR molecular spectroscopic analysis and XRF pellets for X-Ray Fluorescence atomic spectroscopic analysis (as required by a number of USLP and ASTM methods), but also find use in a broad range of other applications.…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
High quality and easy to clean
FTIR
The specac evacuable dye is very easy to use and clean. I use it to press KBr for FTIR analysis. It has been a year with no issue.
Review Date: 16 May 2024 | Specac Ltd
Disappointing product
KBr pellet making
1) Manual has mistakes in naming the parts in the specific assembly section for 5 mm evacuable die. 2) Manual does not have technical drawings. Selling mechanical parts like this without showing dimensions and tolerance at which each part is manufactured show total lack of engineering sense. 3) While following the specific assembly procedure, the stainless steel pellet got stucked into the cylinder body when using just hand insertion. The dimension of the pellet was measured to be 4.99 mm. Since the diameter in the cylinder body is 5 mm it is hard to imagine how to insert the pellets inside the cylinder. 4) Though the die is said to be made of 440C stainless steel, it get dents using less then maximum load.
Review Date: 20 May 2022 | Specac Ltd
Great pellet dies!
Preparation of KBr pellets for transmission FT-IR
The dies are very precisely made from high-quality materials, which are easy to maintain and clean. Very good quality for a very reasonable price. The assembly and disassembly are also very smooth.
Review Date: 31 May 2019 | Specac Ltd
I would purchase this product again.
Battery component characterization
The only issue I have with this product is that over a year or two of not too frequent use, the tolerance between the ram and the barrel loosens, creating uneven pellets.
Review Date: 2 Apr 2019 | Specac Ltd
Great product, very good to make pellets or tablets.
Ceramics - materials science. Electrodes for solid oxide fuel cells
Great product, very good to make pellets or tablets.
Review Date: 20 Mar 2019 | Specac Ltd
Disappointing result for the price paid
FTIR and UV-Vis sample preparation
I bought 5 mm evacuable pellet die set that had the most inconvenient manual for sampling loading (Section 6 in the manual). The issue could be easily resolved by including a funnel to the set with appropriate size. Given the price of the equipment, it is possible to include a free funnel. After the first use, one of the stainless steel pellets were stuck inside the die cylinder body and could not be retrieved because the plunger (pushing rod) was not long enough. When I contacted Specac regarding the problem with retrieving the stainless steel pellet, I did not get any help and was ignored.
Review Date: 11 Jul 2018 | Specac Ltd
Great results
sample preparation for Neutron Activation Analysis
It is very effective for our application, we are very happy with this
Review Date: 11 Jul 2018 | Specac Ltd
Integral to our mineralogy setup.
Creating pellets of sample for FTIR database/indentification.
The product is easy to use and is used in conjunction with our presses, which pressurizes up to 12k psi. We have consistent, reproducible results and these die setups last years, so are a very good buy for their money.
Review Date: 11 Jul 2018 | Specac Ltd
All our works starts will a well made pellet and Specac gives us this every time.
Battery technology
Robust and easy to use. Gives reproducible high quality pellets. Ideal for teaching and research use
Review Date: 4 May 2018 | Specac Ltd
Good setting (although a bit cumbersome), but the core dies tend to become distorted
Preparing KBr pellets for FTIR
The two core dies are simply not hard enough (we use the 5 and 7 mm diameter ones). As a research academic lab, with many students using the instrument, we needed to order or make new ones several times, as they squash on one side and cannot fit in anymore. Now, we do not use them at all.
Review Date: 19 Apr 2018 | Specac Ltd

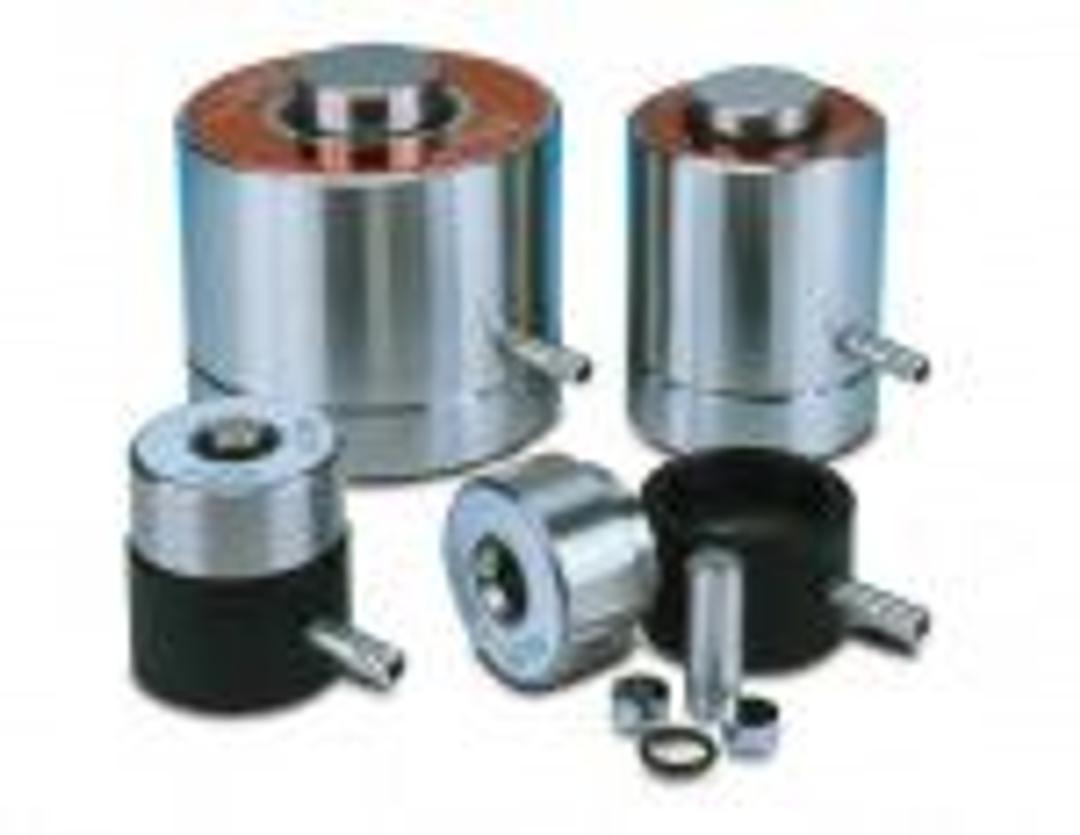

Specac manufactures a wide range of high-quality Evacuable Pellet Dies suitable compacting powdered samples into discs or briquettes. These are particularly well suited for the preparation of solid KBr pellets for FTIR molecular spectroscopic analysis and XRF pellets for X-Ray Fluorescence atomic spectroscopic analysis (as required by a number of USLP and ASTM methods), but also find use in a broad range of other applications. Atlas Series Evacuable Pellet Dies are typically used in conjunction with the Specac’s Atlas Series of Hydraulic Press Products.
These Evacuable Pellet Dies produce circular pellets in sizes from 5 mm to 40 mm diameter as standard, but other shapes and sizes are available on request. These pellet dies cover a range of load capabilities. For optimum quality and durability of the pellet die, all parts are manufactured from hardened stainless steel, and surfaces that come in contact with the sample are highly polished. Each Pellet Die comprises an evacuable base, body, plunger, set of pellets, extractor ring, and O Ring Kit. Both Standard Evacuable Pellet Dies are available, as well as a number of Lightweight Pellet Dies. Being lighter, the latter pellet dies are easier to handle in laboratory applications that require repeated pellet preparation.
