One-Piece Pressure Reactors
One-piece pressure systems with a maximum pressure limit of 45psig @ 100ºC.

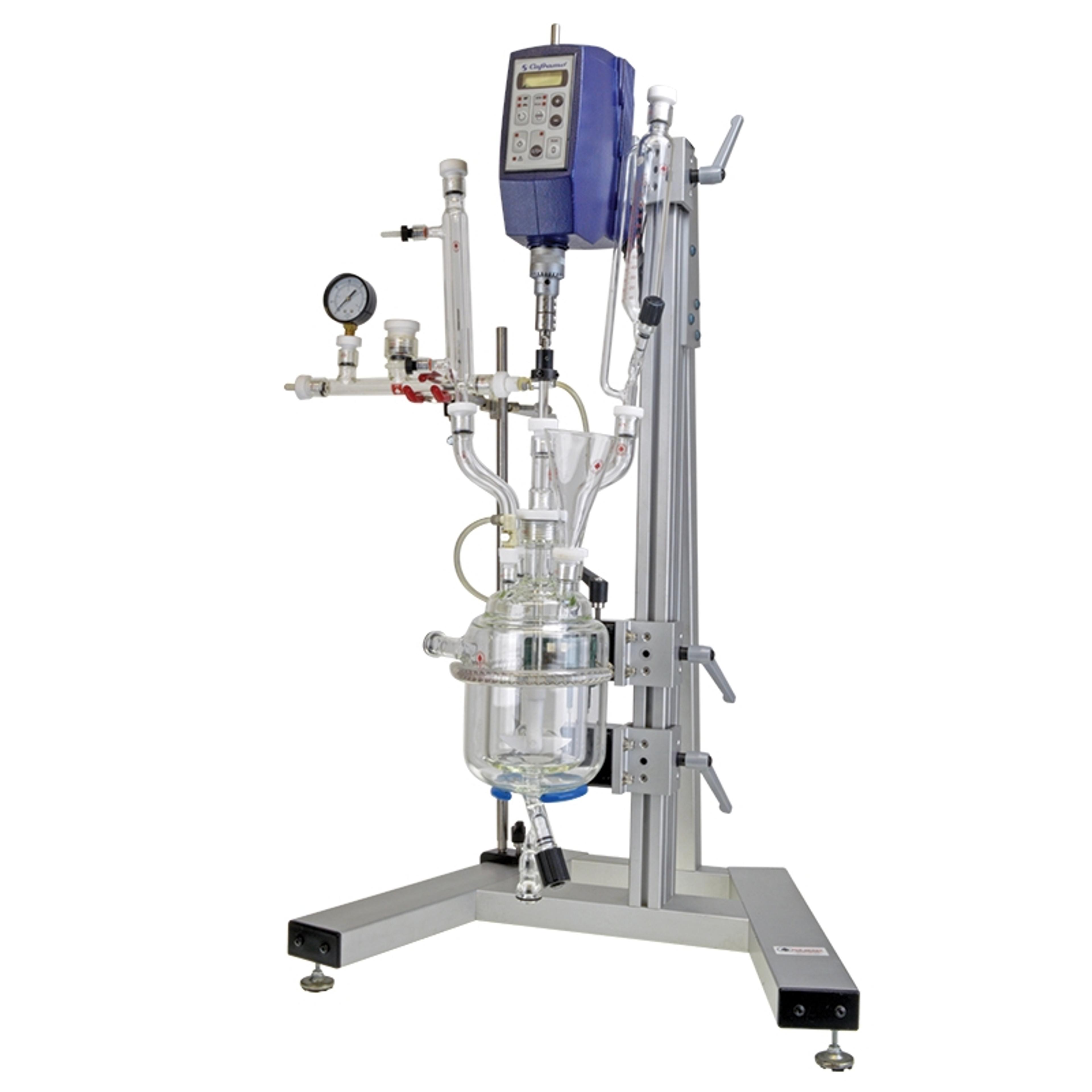

One-piece Jacketed Pressure Reactor shown.

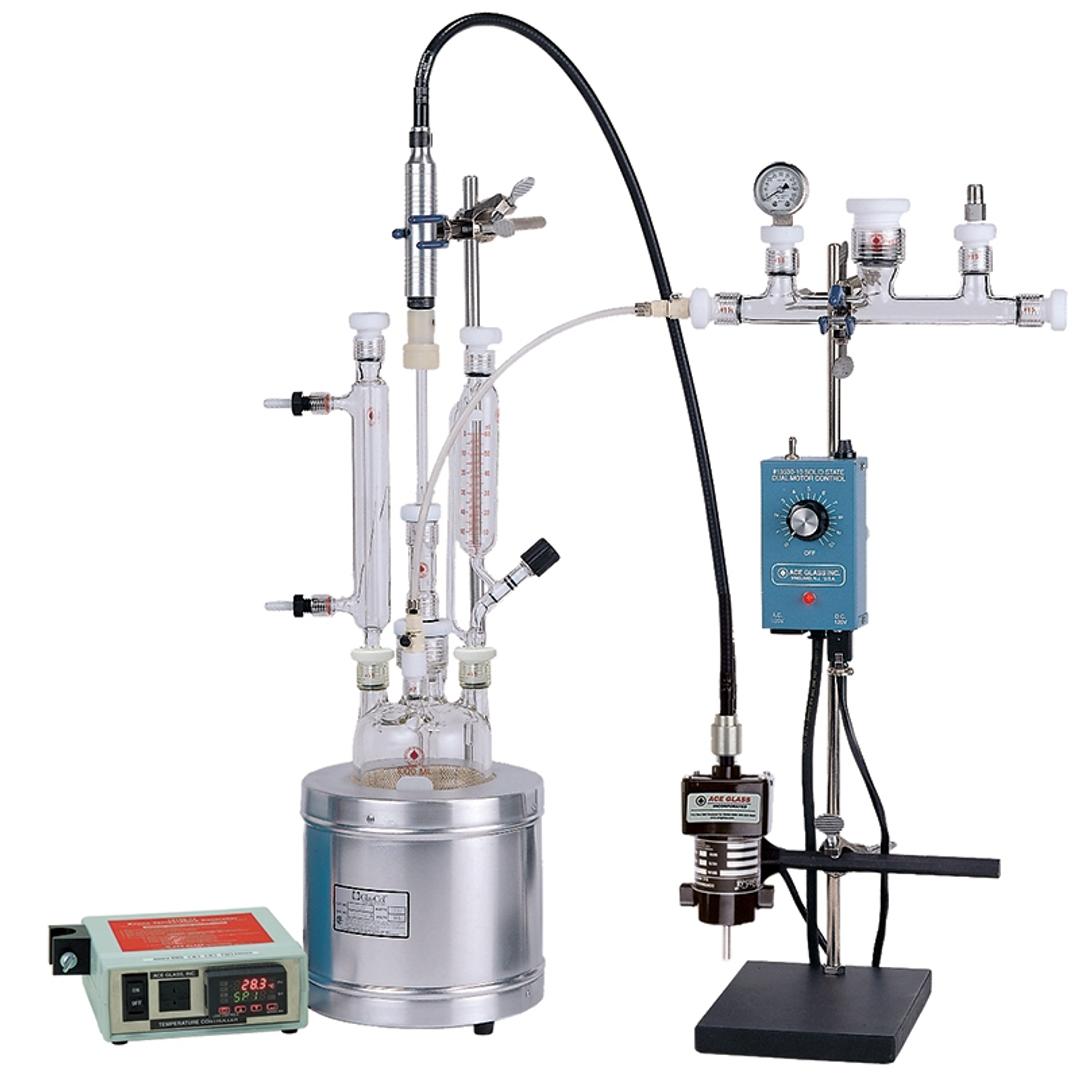

One-piece Unjacketed Pressure Reactor shown.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Great results can't live without this product
Analyze metabolites in tissue itself and the way it does to us is very unique versus the other produ
It is very easy for use and very helpful as well
Review Date: 26 Jul 2022 | Ace Glass Incorporated
Ace Glass heavy wall borosilicate glass, Pressure Reactors have been designed and tested to provide the chemist with a system to perform low to moderate positive pressure reactions, synthesis, and catalysis; or simply to run reactions under inert gas conditions. Reactor capacities range from 500mL to 5000mL, and use Ace Threds to achieve a leak-tight system. These systems are offered with jacketed or unjacketed vessels, with or without bottom outlet valves.
The One-Piece System provides a #25 center opening, with smaller openings as side necks, and has a higher allowable operating pressure than the two-piece system. Both systems offer jacketed and unjacketed vessels, with or without bottom outlet valves. These jackets are heat-sealed.
Safety is the foremost concern when operating pressurized glass reactors. With this in mind, we offer a separate pressure relief manifold, which MUST be used in conjunction with all pressure systems. It consists of a glass manifold with Ace Threds, PTFE adapters, a pressure gauge, a primary adjustable pressure release valve, and a secondary fixed pressure rupture disc.
Base Systems include:
- Reactor Vessel
- Head and Clamp
- Bearing, Stir Shaft and Agitator
- Pressure Relief Manifold
- Addition Funnel, Condenser & Thermowell
- Stir Motor and Controller
- Heating Mantle and Temperature Controller (Unjacketed Systems)
